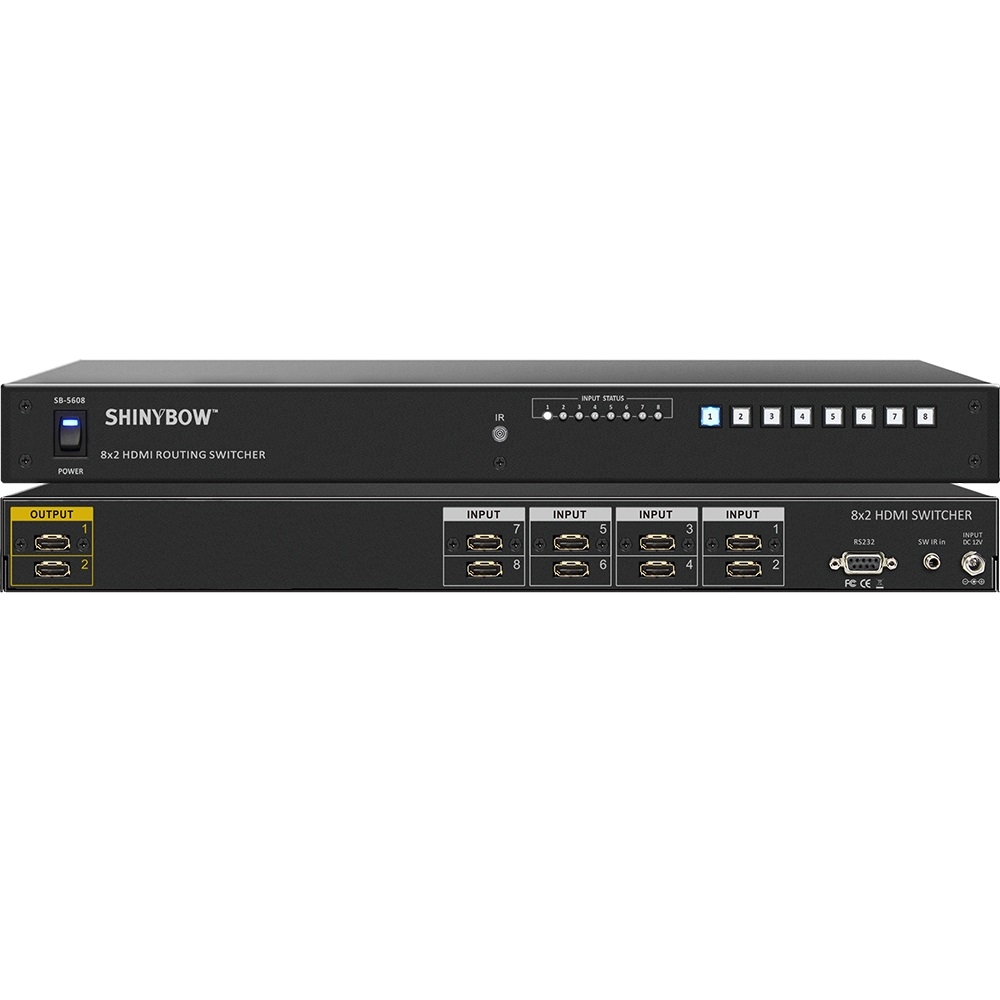

Bộ chuyển mạch 8x2 HDMI Shinybow SB-5608

Bộ chuyển mạch 8x2 HDMI Shinybow SB-5608

Mô tả ngắn

Shinybow SB-5608 (1.3) 8x2 HDMI ROUTING SWITCHER
Input : 8x HDMI
Output : 2x HDMI

liên hệ mua hàng
Hotline: 0918 642 886

The SB-5608 is a competitive, high performance switcher designed for HDMI™ signal, Support Digital Video TMDS format and Digital Audio via HDMI™ connectors. Providing 8 inputs and 1 output. The Switcher support data rate up to 2.25Gbps. Also control any one of the 8 inputs to 1 output via press the selection buttons on the front panel.Control by selection buttons on the front panel, IR Remote controller and RS-232 via a PC. This product is certified, and fully HDMI™ and HDCP compliant. The product approved the CE & FCC compliants. Support high resolution 1080p quality HDMI™ sources to a HDMI™ display, Monitor or Projector.

01. Support 8x2 HDMI Switcher

02. Input: 8x HDMI

03. Output: 2x HDMI

04. Support HDMI Max Data Rate – 2.25Gbps

05. HDTV Compatible and HDCP compliant

06. Control by press buttons on the real panel

07. RS-232 serial port interface on the rear panel

08. IR transceiver on the front panel

09. Input status with LED display

Type of Switcher

8x2 HDMI Switcher

Type of Signal

TMDS Digital Video PCM Digital Audio

Compliant with HDMI standard

HDMI and HDCP

HDTV Support

1080p HDMI formats and UXGA 1600x1200

Data Rates

250Mbps to 2.25 Gbps

Pixel clocks

25MHz to 225 MHz

HDMI Cable Distance

15 meters at 2.25Gbps

Infrared frequency

38KHz

Controls

RS-232, IR, Select buttons on the front panel

Safety Approvals

CE, FCC, VCCI, REACH, Erp, WEEE

Dimension (WxDxH)

17.41" x 7.87" x1.74" (442mm x 200mm x 44mm)

Weight

2.45 Kg / 5.4lb

Power Supply

DC 12V / 2A Max
Use Universal Switch Type50/60Hz,100~240VAC

Download
