Bộ chuyển mạch 4x1 VGA SB-4106
Mô tả ngắn

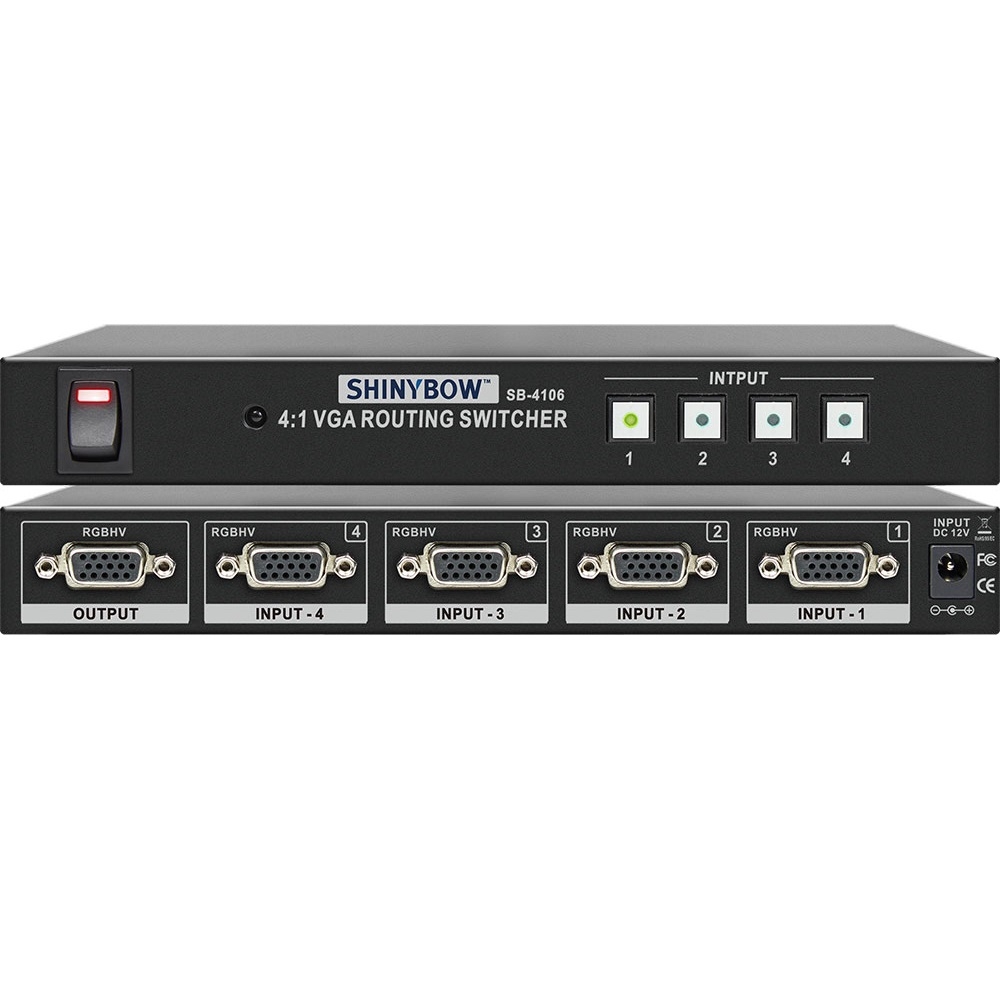

Shinybow SB-4106 4x1 VGA ROUTING SWITCHER
Input : 4x VGA(RGBHV)
Output : 1x VGA(RGBHV)
Hotline: 0918 642 886
SB-4106 is a high speed Video Bandwidth 310MHz, Maximum 380MHz for VGARGBHV routing switcher product. It’s one of the most innovative VGA RGBHV signals switch router product. It has 4 individual inputs with 1 individual output. It is a four inputs switcher, any input may be routed to one output. It completely eliminates the need to constantly move around VGA input and output cables.This switcher is suited to full HD LCD Television and HDTV high resolution for 480p, 720p,1080i, 1080p, VGA high HD resolution for UXGA 1600x1200 or Plasma display monitor applications. Control is provided via front switch push buttons with LED readout or IR remote controller.
|
1. |
Support 4 inputs to 1 output VGA Switcher |
|
2. |
Support PC Resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200) |
|
3. |
Video Bandwidth : 380MHz (-3dB), 200 mVp-p |
|
4. |
Excellent Video (VGA-RGBHV) Performance |
|
5. |
Low all hostile crosstalk of -83dB @ 5MHz |
|
6. |
Excellent ESD rating : exceeds 4000 V |
|
7. |
Switching RGBHV in LCD monitors and plasma monitor displays |
|
8. |
Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays |
|
9. |
Front push buttons with LED readout |
|
10. |
Infrared : IR remote control (38KHz) |
|
11. |
Support Lower power consumed full load under 550 mA |
|
12. |
Power supply offer a universal type 100~240 VAC switch |
|
Type of switcher |
4 inputs to 1 output VGA Switcher |
|
Video Bandwidth |
380MHz, (-3dB) 200 mV p-p, 310MHz, (-3dB) 2V p-p, R=325MHz, G=325MHz, B=325MHz, H=110MHz, V=110MHz |
|
Gain Flatness |
90MHz, 0.1dB |
|
Differential Gain Error |
0.01%, 0.1dB |
|
Differential Phase Error |
0.02, 0.1dB (RL=150W) |
|
Fast settling time |
15ns To 0.1% |
|
All Hostile Crosstalk |
-84db @ 5MHz, -54dB @ 50MHz |
|
Channel Crosstalk |
-56db @ 100MHz |
|
Slew Rate |
1000V/us, G=+1,2V Step |
|
High OFF Isolation |
-100dB @ 10MHz |
|
Output Current |
100mA |
|
Low power CMOS |
550uA Quiescent Current |
|
Controls |
IR Remote Controller,front panel select buttons with LED readout |
|
Safety Approvals |
CE, FCC, VCCI, Erp, WEEE |
|
Dimension (WxDxH) |
8.27" x 4.49" x 1.06" (210mm x 114mm x 27mm) |
|
Weight |
0.7 kg / 1.54 lb |
|
Power Voltage Input |
DC 12V @ 1.25A |
