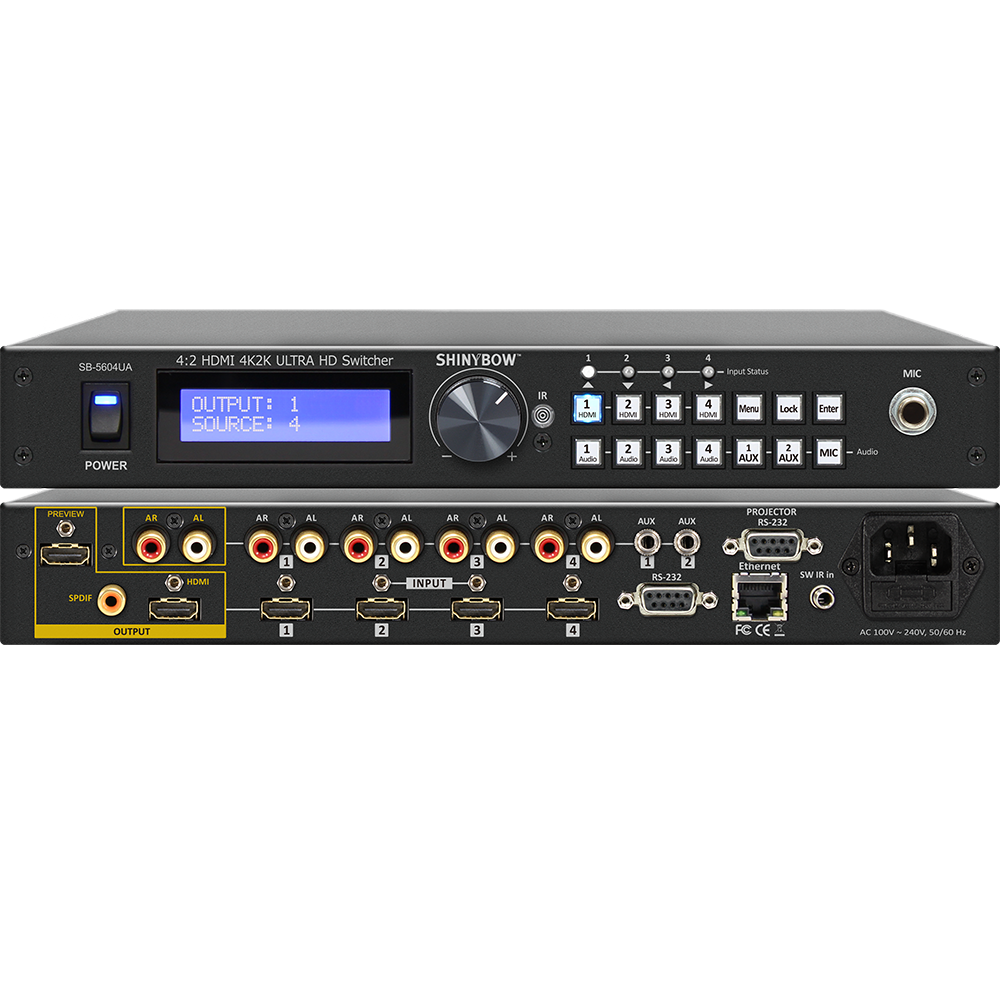

Bộ chuyển mạch HDMI-AUDIO SB-5604UA 4K2K
Mô tả ngắn
Shinybow SB-5604UA 4:2 HDMI 4K2K Routing Switcher with Mic / Aux
Input : 4x HDMI, 4x Stereo Audio (AR/AL), 2x AUX, 1x MIC
Output : 1x HDMI + 1 Preview port, 1x S/PDIF, 1x Stereo Audio (AR/AL)
Hotline: 0918 642 886
The SB-5604UA is the professional 4:2 ULTRA HD HDMI™ 4K2K-60Hz Routing Switcher. HD Video supporting four(4) HDMI™ inputs to Two(2)x HDMI™ and one(1)x SPDIF outputs. Audio supporting (4)x Stereo Audio, (1) Auxiliary Audio (analogue audio) and (1) Microphone inputs to (1) Stereo Audio(AR/AL) output. The features that can be easily configured and controlled. Support HD/3D/4K2K video up to 60Hz FRAME RATE. Signal 6G support wide frequency range 25MHz ~ 600MHz(3860x2160) TMDS clock. HDMI compliant HDMI™ 1.4/2.0 and CEC/HDCP 1.4/2.2, with CE/FCC and RoHs certifications. Support menu function key as control Menu, Exit, EDID, mute and Audio(Audio Breakaway). Control is provided via Front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). An RS232 Windows GUI interface is provided for switch control (Windows only).
|
1. |
Switch support ULTRA HD (4:2) HDMI 4K2K-60Hz and (6:1) Audio / Microphone / Auxiliary audio |
|
2. |
Input supports : |
|
3. |
Output supports : |
|
4. |
HDMI Digital Video TMDS Link speeds up to 6 Gbps, Wide frequency range 25MHz ~ 600MHz TMDS clock. w/embedded HDCP, DVI format, HDMI 1.4/2.0 and CEC/HDCP 1.4/2.2 compliant |
|
5. |
Worldwide control EDID modes for full SD/HD Audio and HD/3D/4K2K Video up to 4K2K@60Hz frame rate |
|
6. |
Digital Audio Support : |
|
7. |
Support ARC (Audio Return Channel) via SPDIF output port connect to sound device |
|
8. |
Audio Breakaway function to select Video source and another Audio, Microphone, Auxiliary audio sources |
|
9. |
Support one (1)x Microphone and (2)x Auxiliary Audio (Analog stereo audio) source |
|
10. |
Audio output support audio balance (0~+50) and volume control (1~100 levels) with mute audio function |
|
11. |
Support world wide (14)x control function keys : |
|
12. |
Support EDID modes : |
|
13. |
Automatic scanning input & output status via Led show on front panel |
|
14. |
Using the build-in HDMI signal booster function, HDMI output is capable of driving cable lengths 1080p up to 98 feet (30M) & 4K2K up to 66 feet (20M) |
|
15. |
Provide IR remote control Frequency (38KHz) |
|
16. |
Various User Interface controls : |
|
17. |
Support 1RU High 19 ”Rack Mount #1U-304L (with rack mount) |
|
18. |
Power supply Universal Type switch 100~240VAC, 50/60Hz |
|
Type of Switcher |
(4:2) 4x HDMI inputs to 2x HDMI outputs, (6:2) 6x Audio inputs To 1x Audio output Box |
|
Inputs |
HDMI : 4x ULTRA HD HDMI (4K2K-60Hz) |
|
Audio : 4x Stereo Audio R/L, 1x Microphone, 2x Auxiliary Audio (analogue audio) |
|
|
Outputs |
HDMI : 2x ULTRA HD HDMI (4K2K-60Hz), 1x SPDIF (Digital Audio 5.1) |
|
Audio : 1x Stereo Audio (with Balance and volume control) |
|
|
HDMI / HDCP / CEC Support |
HDMI 4K2K@60Hz, HDMI 1.4/2.0, HDCP 1.4/2.2 CEC Compliant |
|
Video Bandwidth |
Double Data Rates: bandwidth 600Mhz, Switch total 6 Gbps |
|
Digital Video Support |
HD/3D/4K2K video up to 4K2K@60Hz frame rate |
|
Digital Audio Support |
HDMI Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
(7) EDID management |
Embedded EDID modes : (1): 720p, (2): 1080i, (3): 1080p, (4): 4K2K-30Hz, (5): 4K2K-60Hz |
|
Select LEARNING mode : Learning Destination EDID To Link Source |
|
|
ARC support |
Audio Return Channel Receiver/Transmitter via SPDIF output |
|
Source Status |
Input status LEDs indicates presence of a live signal |
|
IR External Distance |
~984 feet / 300 meters maximum |
|
Audio Breakaway |
Output support select different Video or Audio source function |
|
(14) Function Control Keys |
HDMI source (1 thru 4), Audio source (1 thru 4), |
|
Menu, Lock, Enter, (2)x AUX, MIC |
|
|
Switch Controls |
1x Select & Function buttons on front panel (Data status via LCM panel show out) |
|
1x IR Remote Controller (switch control) |
|
|
1x IR External port (switch control via 3.5mm OD Jack) |
|
|
1x RS 232 series interface (switch control) |
|
|
1x Ethernet series interface (switch control) |
|
|
HDMI Signal Booster |
Distance 1080p Cable 98 feet (30M), 4K2K Cable 66 feet(20M) |
|
Infrared Frequency |
38 Khz |
|
Firmware Update |
Firmware update via RS232 |
|
HDMI I/O Connector |
HDMI Type A - SMD 19pin Female Type |
|
Temperature |
Operating Temperature 32 °F - 100 °F (0 °C - 32 °C) |
|
Safety Approvals |
CE, FCC, REACH |
|
Rack Mount Bracket |
19 inch 1U High Rack Mount Bracket (1U-300L) |
|
Dimension (WxDxH) |
11.9" x 6.06" x 1.73" (304mm x 154mm x 44mm) |
|
Weight |
1.4 kg / 3.08 lb |
|
Power Supply |
AC 100~240V 50/60Hz |
