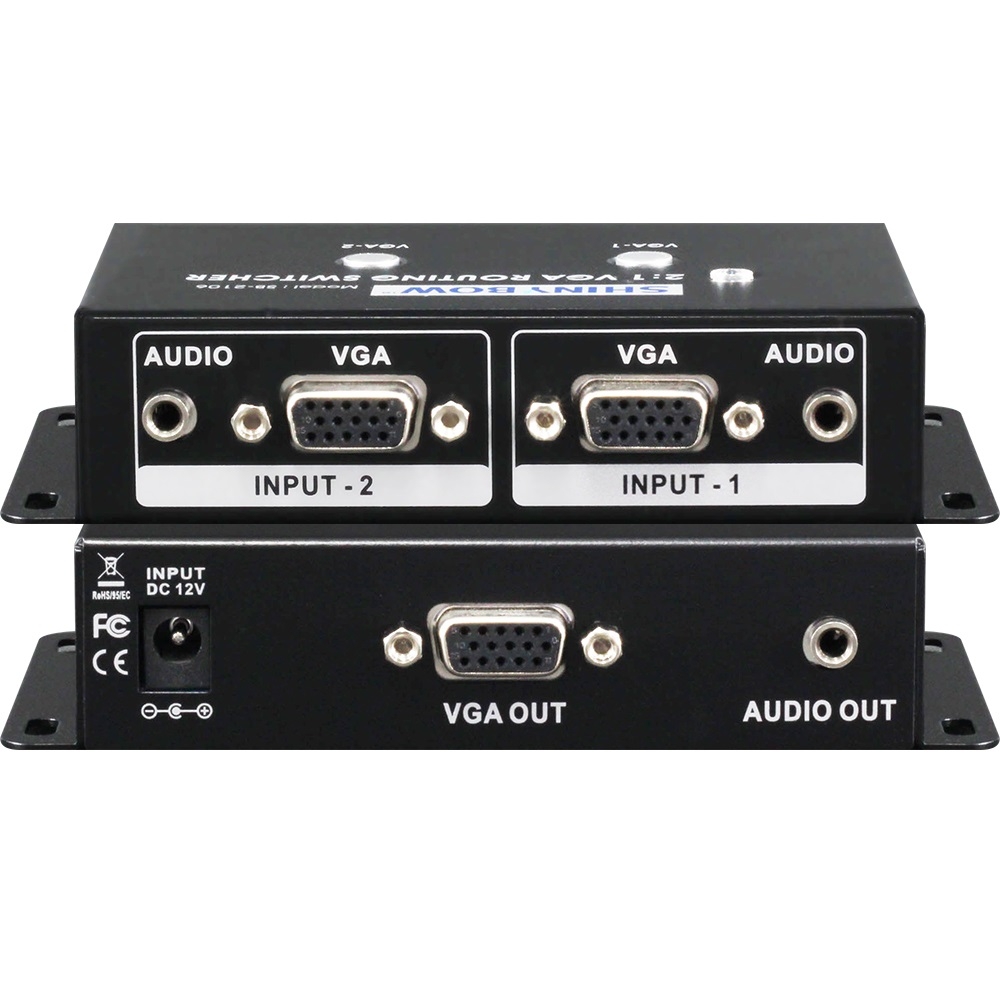

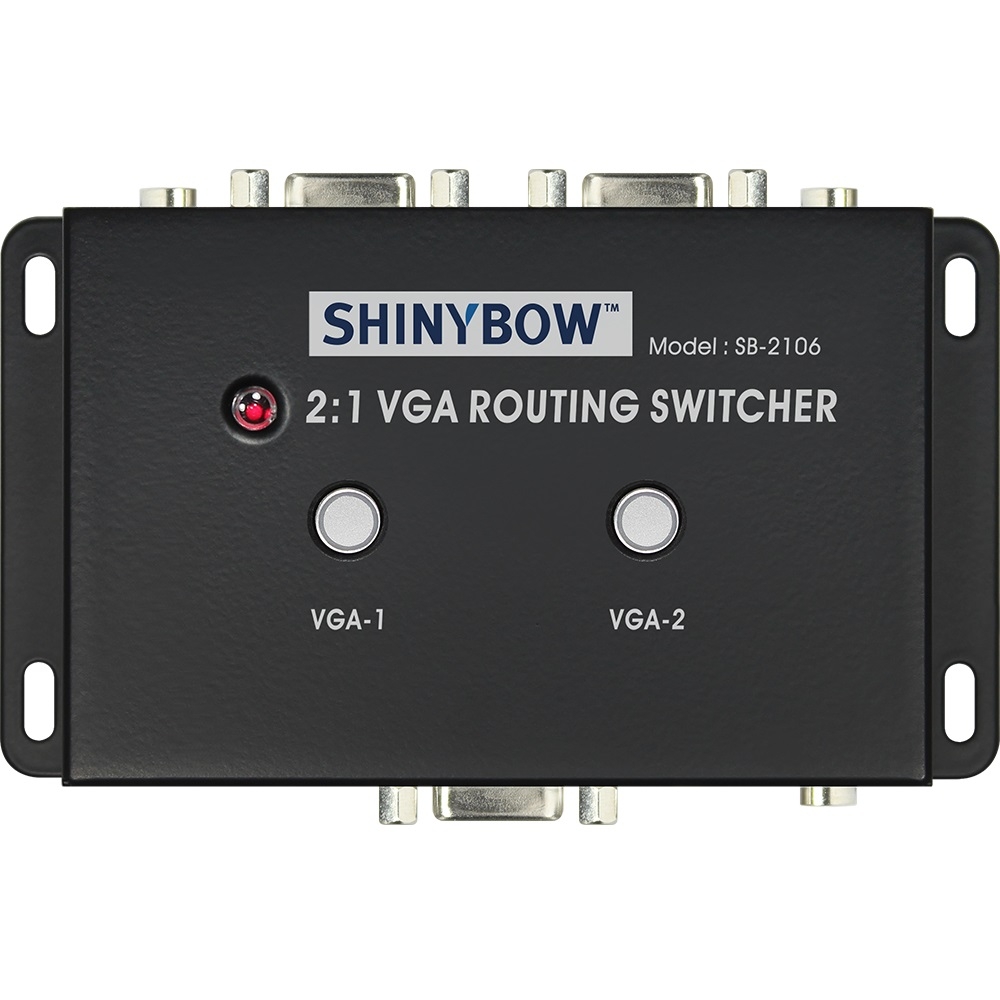

Bộ chuyển mạch VGA-AUDIO SB-2106
Mô tả ngắn
Shinybow SB-2106 2x1 VGA-STEREO AUDIO ROUTING SWITCHER
Inputs : 2x VGA(RGBHV) , 2x STEREO AUDIO (AR/AL)
Output : 1x VGA(RGBHV) , 1x STEREO AUDIO (AR/AL)
Hotline: 0918 642 886
SB-2106 is a high speed Video Bandwidth 310MHz, Maximum 380MHz VGA and Audio switcher router product. It’s one of the most innovative VGA/RGBHV and STEREO AUDIO(AR/AL) switching product.There’s a two inputs switcher router, any input may be routed to any output. It completely eliminates the need to constantly move around VGA and Stereo Audio input and output cables. It is suited to full HD LCD TV or Plasma display monitor applications.
|
1. |
Support 2 inputs to 1 output VGA/Audio Switcher Router |
|
2. |
Support PC Resolution VGA (640x480), SVGA (800x600), XGA (1024x768), |
|
|
SXGA (1280x1024), UXGA (1600x1200), WUXGA (1900x1200) |
|
3. |
Video Bandwidth : 380MHz (-3dB), 200 mVp-p |
|
4. |
Excellent Video(VGA-RGBHV) and Stereo Audio Performance |
|
5. |
Audio Frequency Respond : 20Hz ~ 20KHz |
|
6. |
Low all hostile crosstalk of -83 dB @ 5 Mhz |
|
7. |
Excellent ESD rating : exceeds 4000 V |
|
8. |
Switching RGBHV in LCD monitors and plasma displays |
|
9. |
Suitable for full HD high resolution Video player device and LCD/Prasma monitor displays |
|
10. |
Front pushbuttons with LED readout |
|
11. |
Support Lower power consumed full load under 550 mA |
|
12. |
Power supply offer a universal type 100~230 VAC switch |
|
1. |
Type of switcher : two inputs to one output VGA-AUDIO Switcher |
|
2. |
Video Bandwidth : 380MHz, (-3 dB) 200 mV p-p, 310MHz, (-3 dB) 2V p-p |
|
|
R=325MHz, G=325MHz, B=325MHz, H=110MHz, V=110MHz |
|
3. |
Audio Bandwidth : 60MHz, (-3dB) (Audio-Right=60MHz, Audio-Lift=60MHz) |
|
4. |
Audio Frequency Respond :20Hz ~20KHz |
|
5. |
Gain Flatness : 90 Mhz , 0.1 dB Differential Gain Error : 0.01%, 0.1 dB |
|
6. |
Differential Phase Error : |
|
|
0.02 , 0.1 dB (RL=150) Fast settling time: 15ns To 0.1% |
|
7. |
All Hostile Crosstalk : -84 db @ 5 MHz, -54 dB @ 50 MHZ Channel |
|
|
Crosstalk : -56 db @ 100 Mhz |
|
|
Slew Rate : 1000 V/us, G=+1,2 V Step |
|
8. |
High OFF Isolation : -100 dB@10MHz |
|
9. |
Output Current : 100 mA |
|
10. |
Low power CMOS : 550 uA Quiescent Current |
|
11. |
Controls : Front panel selection buttons with LED readout |
|
12. |
Safety Approvals : CE, FCC, RoHS(2002/95/EC) |
|
13. |
Dimensions (W.D.H.) : 5.04" (128mm) x 2.85" (72.5mm) x 1.08" (27.5mm) |
|
14. |
Net Weight (Unit Only) : About 0.3kg/0.66 lb (with metal case) |
|
15. |
Power Voltage Input : DC 12V @ 0.66A |
