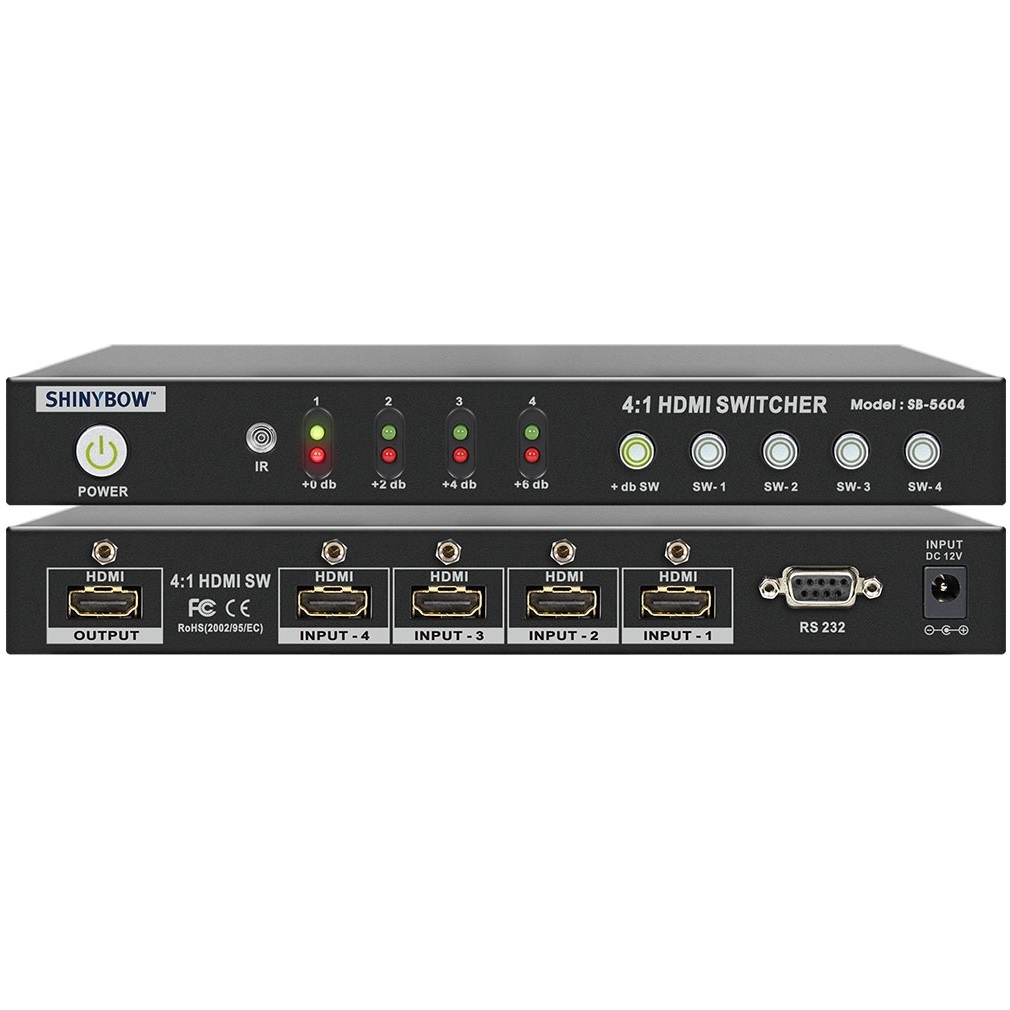

Bộ chuyển mạch 4x1 HDMI SB-5604
Mô tả ngắn
Shinybow SB-5604 4x1 HDMI ROUTING SWITCHER
Input : 4x HDMI
Output : 1x HDMI
Hotline: 0918 642 886
The SB-5604 is a competitive, high performance switcher designed for HDMI™ signal, support Digital Video TMDS format and Digital Audio via HDMI™ connectors. Providing 4 inputs and 1 output. The Switcher support data rate up to 2.25 Gbps. Also control any inputs to output via press the selection buttons on the front panel. Control by selection buttons on the front panel, IR Remote controller and RS-232 via a PC. This product is certified and fully HDMI™ and HDCP compliant. The product approved the CE, FCC compliants. Support high resolution 1080p quality HDMI™ sources to a HDMI™ display, monitor or projector.
01. Support HDMI 4xInputs to 1xOutput Switcher
02. Input: 4x HDMI (with HDCP) via 4x HDMI connector
03. Output: 1x HDMI (with HDCP) via 1x HDMI connectors
04. Support HDMI Max Data Rates – 2.25Gbps
05. HDTV Compatible and HDCP compliant
06. Control by press buttons on the front panel
07. RS-232 serial port interface on the rear panel
08. IR transceiver on the front panel and IR External device connection
09. Input status with LED display
| Type of Switcher | 4x1 HDMI Switcher |
| Type of Signal | TMDS Digital Video PCM Digital Audio |
| Compliant with HDMI standard | HDMI and HDCP |
| HDTV Support | 1080p HDMI formats and UXGA 1600x1200 |
| Data Rates | 50Mbps to 2.25 Gbps |
| Pixel clocks | 25MHz to 225 MHz |
| HDMI Cable Distance | 15 meters at 2.25Gbps |
| Infrared frequency | 38KHz |
| Control | RS-232, IR, Select buttons (on the front panel) |
| Safety Approvals | CE, FCC, REACH, Erp, WEEE |
| Dimension (WxDxH) | 8.27" x 4.49" x 1.07" (210mm x 114mm x 27mm) |
| Weight | 0.7 Kg / 1.54 lb |
| Power Supply | DC 12V /1.25A Use Universal Switch Type 50/60Hz, 100~240VAC |
