Dây cáp HDMI Ethernet C-HM/HM/ETH
Mô tả ngắn
Lengths 0.9–15.2m (3–50ft)
K–Lock Connectors
Hotline: 0918 642 886

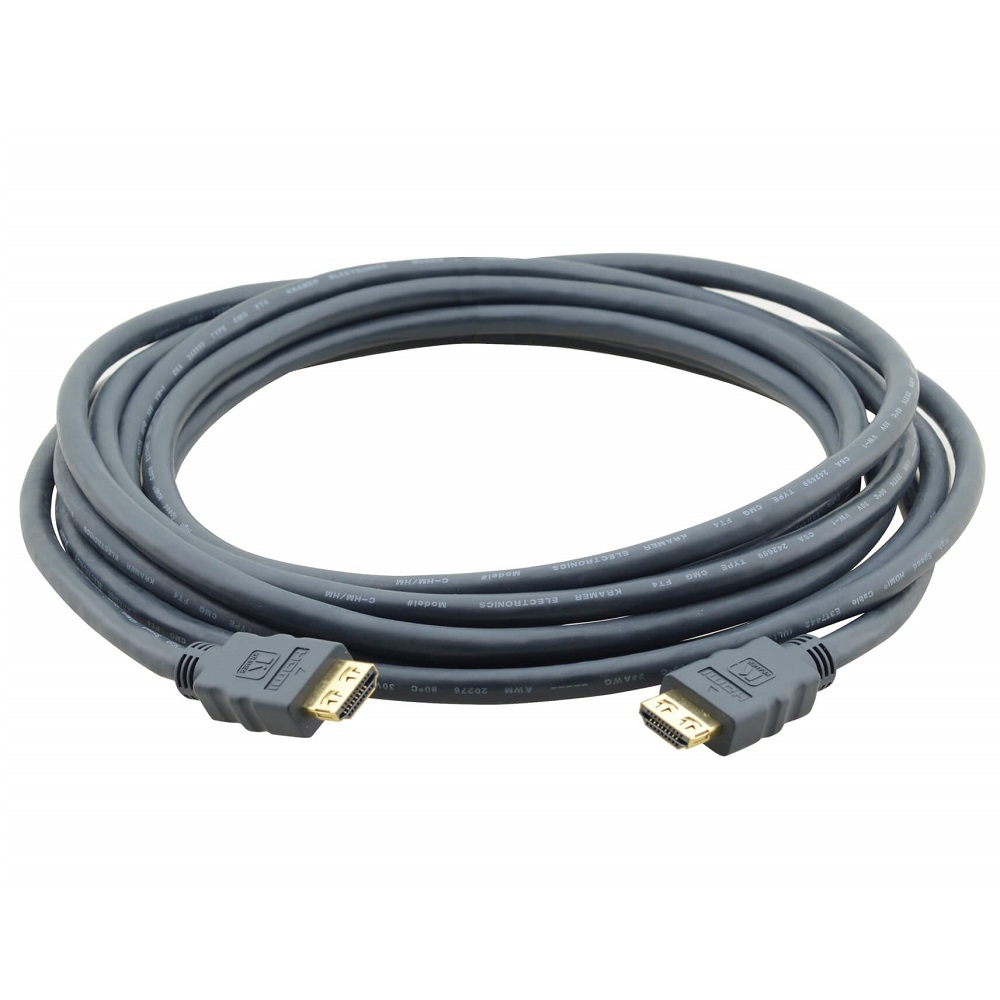

Kramer's C−HM/HM/ETH HDMI cable is a high−performance cable with molded HDMI connectors at both ends. It supports Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC and ARC and resolutions up to 4K@60Hz (4:4:4).
- Quality Performance — Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
- Max. Resolution — 4K@60Hz (4:4:4).
- High–Quality Connectors — 24k gold–plated connectors resist corrosion, and offer the best possible connectivity.
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
- Varied Selection of Lengths — Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35, and 50ft).
|
MODEL |
DESCRIPTION |
LENGTH |
RESOLUTION |
|
C–HM/HM/ETH–3 |
High–Speed HDMI™ Cable with Ethernet |
0.90m (3ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/ETH–6 |
High–Speed HDMI™ Cable with Ethernet |
1.80m (6ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/ETH–10 |
High–Speed HDMI™ Cable with Ethernet |
3.00m (10ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/ETH–15 |
High–Speed HDMI™ Cable with Ethernet |
4.60m (15ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/ETH–25 |
High–Speed HDMI™ Cable with Ethernet |
7.60m (25ft) |
4K@60Hz (4:2:0) |
|
C–HM/HM/ETH–35 |
High–Speed HDMI™ Cable with Ethernet |
10.70m (35ft) |
4K@60Hz (4:2:0) |
|
C–HM/HM/ETH–50 |
High–Speed HDMI™ Cable with Ethernet |
15.20m (50ft) |
1080p@60Hz |
VIDEO
Max Resolution for 3–15ft (.9–4.6m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@60Hz (4:2:0)
Max Resolution for 50ft (15.2m) lengths: 1080p
Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps (6Gbps per channel)
Max Data Rate for 25–35ft (7.6–10.7m) : 10.2 Gbps (3.4Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (.99Gbps per channel)
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH
AMPLIFIER
Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
CONDUCTORS
Material: Tinned Copper
3–35ft (.9–10.7m) lengths: 28AWG (7/0.127)
50ft (15.2m) lengths: 26AWG (7/0.160)
SCREENING
Type: Triple shielding
JACKET
Material: PVC
Color: Gray
Diameter for 3–35ft (.9–10.7m) lengths: 7.30 ± 0.20mm
Diameter for 50ft (15.2m) lengths: 8.50 ± 0.20mm
MECHANICAL
Cable Bending Radius for 3–35ft (.9–10.7m) lengths: 73mm
Cable Bending Radius for 50ft (15.2m) lengths: 85mm
ELECTRICAL
Temperature Rating: 80°C
Voltage Rating: 30V
Conductor Resistance – 28AWG: 239.0Ω/km
Conductor Resistance – 26AWG: 150Ω/km MAX. at 20Ω
STANDARDS COMPLIANCE
Safety: Flammability Rating — CL3/FT4
Environmental: RoHS 2011/65/ EU
