Cáp chuyển Active Optical 4K USB Type C to HDMI CLS-AOCU/CH
Mô tả ngắn

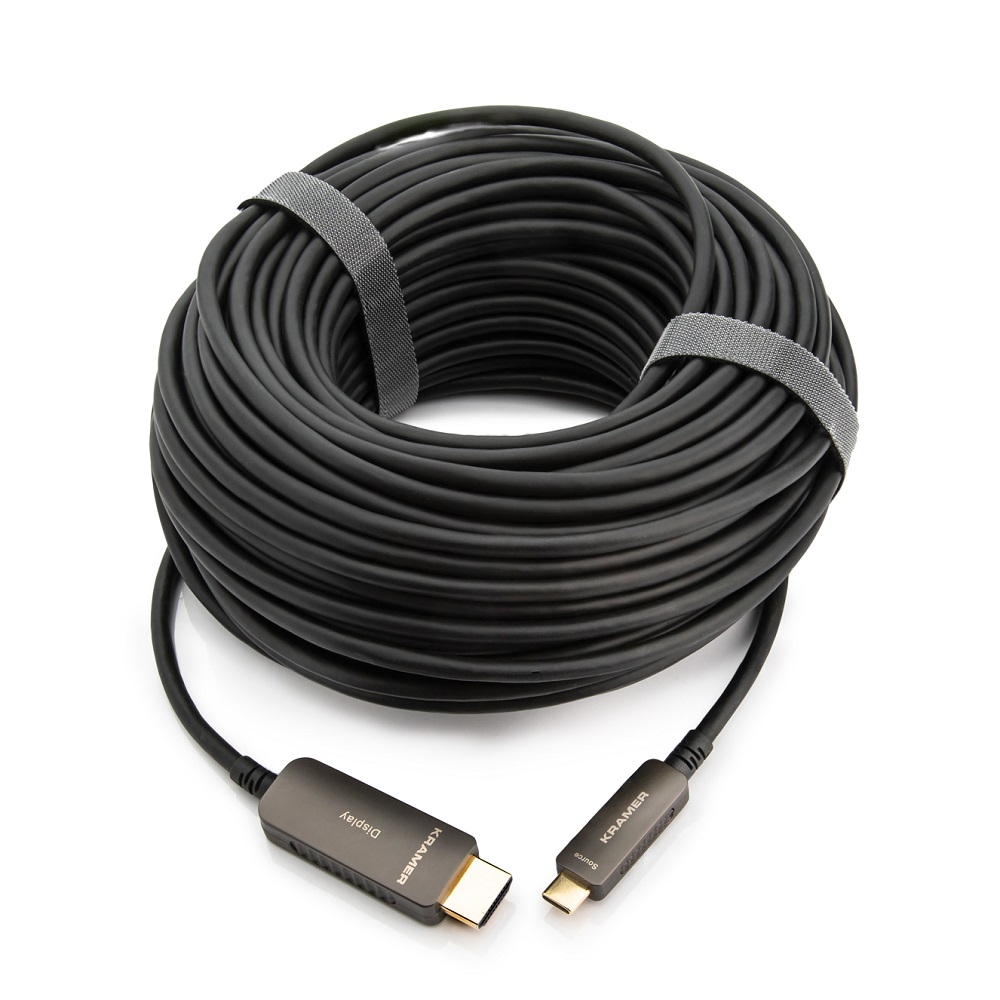

Kramer CLS-AOCU/CH Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free
Lengths — 5–30m (15–98')
Max. data rate: 18Gbps
Max. resolution: 4K@60Hz
Low smoke & halogen-free
No external power required
Supports HDCP 2.2
Hotline: 0918 642 886
Kramer CLS-AOCU/CH is an innovative active optical USB C to HDMI cable for 4K signals up to 30 meters (98ft).
CLS-AOCU/CHcables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CLS-AOCU/CH cables are an ideal solution for maximizing signal integrity in critical AV installations.
- Video Resolution — Up to 4K@60Hz (4:4:4).
- High Data Transfer Rate — Up to 18Gbps.
- Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio.
- HDMI Support — HDCP 2.2/1.4, HDR, EDID.
- High–Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
- Reduced EMI & RFI.
- Thin Construction — 4.7mm diameter.
- Jacket Construction — Low smoke & halogen free.
- RoHS 2011/65/EU, CE, FCC Compliant.
- Varied Selection of Lengths — Available in versions from 5 to 30m (15 to 98ft).
|
MODEL |
DESCRIPTION |
LENGTH |
|
CLS–AOCU/CH–15 |
Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free |
4.60m (15ft) |
|
CLS–AOCU/CH–33 |
Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free |
10.00m (33ft) |
|
CLS–AOCU/CH–50 |
Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free |
15.20m (50ft) |
|
CLS–AOCU/CH–66 |
Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free |
20.00m (66ft) |
|
CLS–AOCU/CH–98 |
Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free |
30.00m (98ft) |
VIDEO
-
Max Resolution: 4K@60Hz
-
Supported Color Spaces: RGB, YCbCr, xvYCC, BT.2020
-
HDMI Support: HDR, HDCP 2.2/1.4, EDID
AUDIO
-
Supported Audio Formats: DTS HD 7.1, Dolby TrueHD
PHYSICAL
-
USB-C Source: On a male HDMI type A, 24K gold–plated
-
HDMI Display: On a male HDMI type A, 24K gold–plated
GENERAL
-
Cable Type: Hybrid with 4x polymer insulated glass fibers
-
Copper Type: 30–20 AWG tinned copper wire
-
Flammability: LSHF
MECHANICAL
-
Cable Bending Radius: 20mm
JACKET
-
Color: Black
-
Diameter: 4.7 +/ — 0.2mm
POWER
-
Consumption: < 1.5W
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0–50°C
-
Storage Temperature: –20–70°C
STANDARDS COMPLIANCE - EC VERIFIED
-
Safety: CE/FCC
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
Environmental: REACH, RoHS 2011/65/ EU
