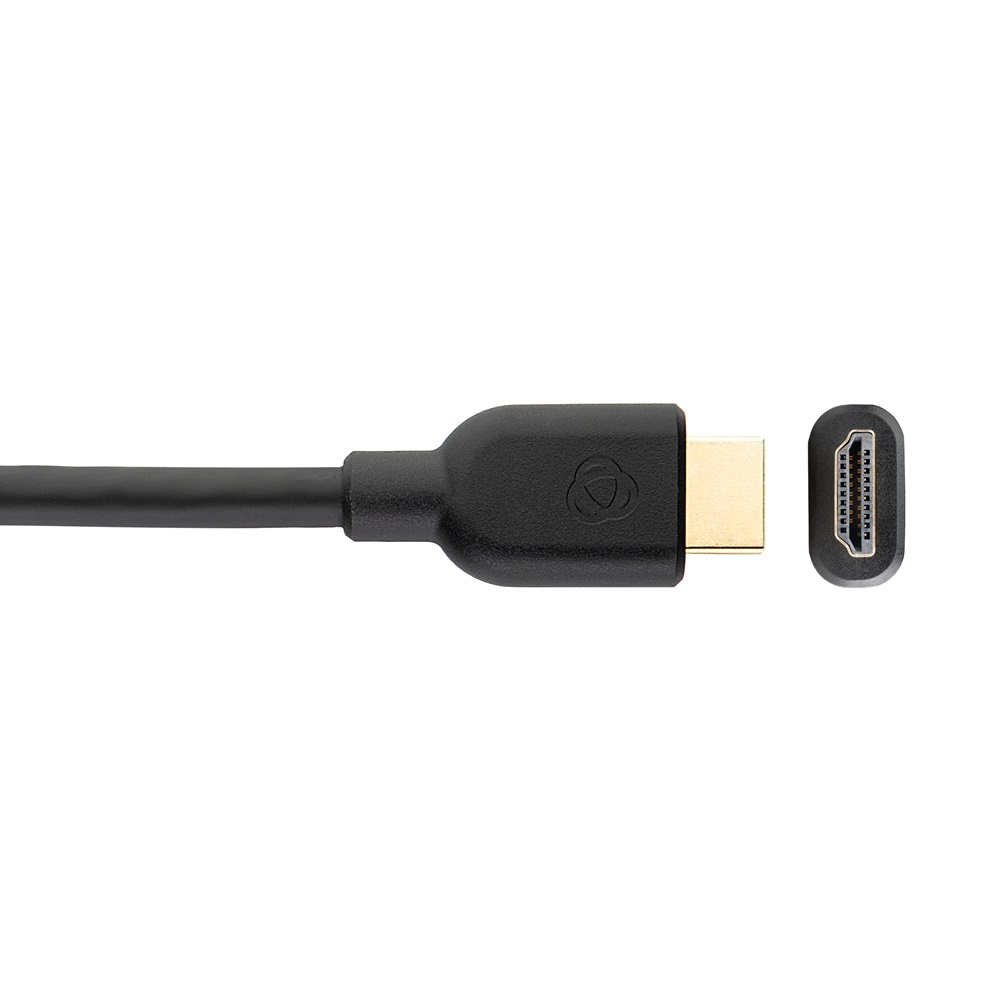

Dây cáp HDMI PREMIUM certified CT-HM
Mô tả ngắn
CT-HM PREMIUM certified High–Speed HDMI Cable
TAA compliance
Lengths: 3 to 35ft (0.9–10.7m)
HDMI
4K/60 UHD (4:2:0); 4K/60 UHD (4:4:4)
Hotline: 0918 642 886
CT-HM PREMIUM certified High–Speed HDMI Cable
Product Description
Kramer's CT−HM HDMI cable delivers high−speed, high−performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4).
Key Features
Max. Data Rate — 18Gbps
Max. Resolution — 4K@60Hz (4:4:4)
Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths
Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
Shield — Triple overall shield against EMI/RFI interference
Varied Selection of Lengths — Available in versions of 3ft, 6ft, 10ft, 15ft, 25ft, 35ft.
Configurations
MALE - MALE
|
MODEL |
DESCRIPTION |
FEET |
RESOLUTION |
|
CT–HM–3 |
Premium High–Speed HDMI Cable |
0.90m (3ft) |
4K@60Hz (4:4:4) |
|
CT–HM–6 |
Premium High–Speed HDMI Cable |
1.80m (6ft) |
4K@60Hz (4:4:4) |
|
CT–HM–10 |
Premium High–Speed HDMI Cable |
3.00m (10ft) |
4K@60Hz (4:4:4) |
|
CT–HM–15 |
Premium High–Speed HDMI Cable |
4.60m (15ft) |
4K@60Hz (4:4:4) |
|
CT–HM–25 |
High–Speed HDMI Cable |
7.60m (25ft) |
4K@60Hz (4:2:0) |
|
CT–HM–35 |
High–Speed HDMI Cable |
10.70m (35ft) |
4K@60Hz (4:2:0) |
Video
Max Resolution for 3–15ft (.9–4.6m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@60 (4:2:0)
Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps
Max Data Rate for 25–35ft (7.6–10.7m) lengths: 8.91 Gbps
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR,HDCP 2.2, EDID and CEC
Audio
Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
HDMI Source: On a male HDMI type A, gold–plated
HDMI Display: On a male HDMI type A, gold–plated
CONDUCTORS
Material: Tinned/Bare Copper
3–6ft (.9–1.8m) lengths: 30AWG (1/0.254)
10ft (3m) lengths: 28AWG (1/0.32)
15ft (4.6m) lengths: 26AWG (1/0.4)
25-35ft (7.6-10.7m) lengths: 28AWG (1/0.32)
SCREENING
Type: Triple shielding
JACKET
Material: PVC
Color: Black
Diameter for 3–6ft (.9–10.7m) lengths: 6. 0 ± 0.15mm
Diameter for 10ft (3m) lengths: 7.3 ± 0.2mm
Diameter for 15ft (3m) lengths: 8 ± 0.2mm
Diameter for 25-35ft (7.6-10.7m) lengths: 7.3 ± 0.2mm
Cable Bending Radius for 10ft, 25ft, 35ft (3m,7.6m,10.7m) lengths: 73mm
Cable Bending Radius for 3ft-6ft (0.9m-1.8m) lengths: 60mm
Cable Bending Radius for 15ft, (4.6m) lengths: 80mm
ELECTRICAL
Temperature Rating: 80°C
Voltage Rating: 30V
Conductor Resistance – 30AWG: 361Ω/km MAX. at 20°C (68°F)
Conductor Resistance – 28AWG: 227Ω/km MAX. at 20°C (68°F)
Conductor Resistance – 26AWG: 143Ω/km MAX. at 20°C (68°F)
Environmental Conditions
Temperature range: –4 °F–176 °F (–20°C–80°C)
STANDARDS COMPLIANCE
Safety: CE, UL
Flammability Rating: CL2
Environmental: RoHS 2011/65/ EU
