Dây cáp HDMI CLS-HM/HM/ETH Low Smoke & Halogen Free
Mô tả ngắn

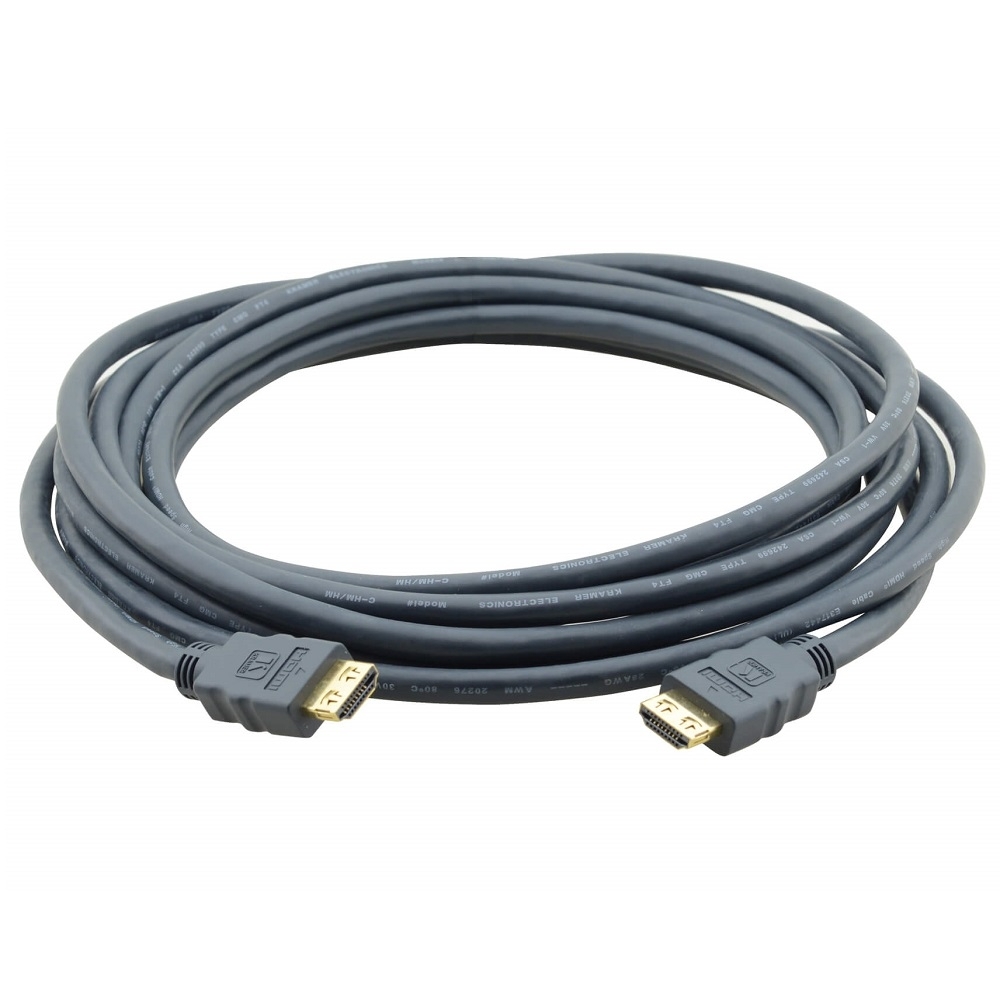

Kramer CLS-HM/HM/ETH High–Speed HDMI Cable with Ethernet Low Smoke & Halogen Free
Lengths — 0.9–15.2m (3–50ft)
HDMI Compliant
Hotline: 0918 642 886
Kramer's CLS−HM/HM/ETH is a high−performance HDMI cable with Ethernet having molded HDMI connectors at both ends. It supports HDMI Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD and CEC. The CLS Series is low smoke and halogen free.
- Quality Performance — Kramer’s new High Definition Multimedia Interface (HDMI) cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
- High–Quality Connectors — 24k gold–plated connectors resist corrosion, and offer the best possible connectivity.
- Low Smoke, Halogen Free.
- Varied Selection of Lengths — Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35 and 50ft).
|
MODEL |
DESCRIPTION |
FEET |
RESOLUTION |
|
CLS–HM/HM/ETH–3 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
0.90m (3ft) |
4K@60Hz (4:4:4) |
|
CLS–HM/HM/ETH–6 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
1.80m (6ft) |
4K@60Hz (4:4:4) |
|
CLS–HM/HM/ETH–10 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
3.00m (10ft) |
4K@60Hz (4:4:4) |
|
CLS–HM/HM/ETH–15 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
4.60m (15ft) |
4K@60Hz (4:4:4) |
|
CLS–HM/HM/ETH–25 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
7.60m (25ft) |
4K@60Hz (4:2:0) |
|
CLS–HM/HM/ETH–35 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
10.70m (35ft) |
4K@60Hz (4:2:0) |
|
CLS–HM/HM/ETH–50 |
High–Speed HDMI™ Cable with Ethernet — LSHF |
15.20m (50ft) |
1080p@60Hz |
VIDEO
-
Max Resolution for 3-15ft (0.9-3.0m) lengths: 4K60hz (4:4:4)
-
Max Resolution for 25-35ft (4.6-10.7m) lengths: 4K60Hz (4:2:0)
-
Max Resolution for 50ft (15.2m) lengths: 1080p
-
Max Data Rate for 3-15ft (0.9-3.0m) lengths: 18Gbps (6 Gbps per channel)
-
Max Data Rate for 25-35ft (4.6-10.7m) lengths: 10.2Gbps (3.4 Gbps per channel)
-
Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (1.65 Gbps per channel)
-
HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision
AUDIO
-
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
-
Connectors: 2 Male HDMI Type A, 24K gold–plated K–Lock connector
-
Bending Radius for 3-35ft (0.9-10.7m) lengths: 80mm
-
Bending Radius for 50ft (15.2m) lengths: 90mm
CONDUCTORS
-
Diameter for 3-35ft (0.9-10.7m) lengths: 28AWG (7/0.127)
-
Diameter for 50ft (15.2m) lengths: 26AWG(7/0.160)
-
Material: Bare Copper
JACKET
-
Material: TPE
-
Color: Gray
-
Diameter for 3-35ft (0.9-10.7m) lengths: 8.0 ± 0.20mm
-
Diameter for 50ft (15.2m) lengths: 9.0 ± 0.25mm
ELECTRICAL
-
Temperature Rating: 80⁰C
-
Voltage Rating: 30V
-
Conductor Resistance for 28AWG: 237.3Ω/KM MAX. at 20℃
-
Conductor Resistance for 26AWG: 148Ω/KM MAX. at 20℃
REGULATORY
-
Rating (NEC/UL/CSA): VW–1
-
RoHS: 2011/65/ EU
-
Low Smoke & Halogen Free: IEC 60332–1, IEC 60754–1
