Dây cáp HDMI Pure fiber Optical Armored 4K CP-AOCH/PF
Mô tả ngắn
Kramer CP-AOCH/PF Pure fiber Optical Armored 4K HDMI Cable
4K@60 (4:4:4) 18 Gbps for all lengths
Plenum rated
K–LOCK connectors
Extremely Durable
Hotline: 0918 642 886
CP-AOCH/PF cable is a pure fiber high−speed HDMI active optical cable (AOC) designed with heavy−duty durability perfectly suited for the medical and sensitive EMI applications. CP-AOCH/PF supports resolutions up to 4K@60 (4:4:4) 18 Gbps over long cable runs up to 100 meters.
- High Resolution over Long Range — Active cable supports resolutions up to 4K@60 (4:4:4) over long cable runs up to 100 meters.
- High Data Transfer Rate — Up to 18 Gbps.
- EDID and HDCP support.
- Deep Color and x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD and DTS–HD Master Audio®
- High–quality connectors: 24K gold–plated, corrosion–resistant and best possible connectivity
- Pull–resistant — K–Lock™ connectors with 15 lbs. of restraining force
- Plug & Play operation
- Cable construction — 8xMM fiber in a 4.0mm plenum rated jacket.
- Extremely Durable — integrated. stainless steel, corrugated tube with Kevlar reinforcement protects the internal optical fibers. A TPU jacket, heavy duty connectors and robust waterproof & impact resistant connector covers ensure high pulling strength and compression load. Dispensed from a solid, mobile plastic spool.
- Varied Selection of Lengths — Available in versions from 10 to 100m (33 to 328ft).
Configurations
|
Model |
Description |
Feet |
|
CP–AOCH/PF–33 |
Active Optical Armored 4K HDMI Cable |
10.00m (33ft) |
|
CP–AOCH/PF — 50 |
Active Optical Armored 4K HDMI Cable |
15.20m (50ft) |
|
CP–AOCH/PF — 66 |
Active Optical Armored 4K HDMI Cable |
20.00m (66ft) |
|
CP–AOCH/PF — 98 |
Active Optical Armored 4K HDMI Cable |
30.00m (98ft) |
|
CP–AOCH/PF — 131 |
Active Optical Armored 4K HDMI Cable |
40.00m (131ft) |
|
CP–AOCH/PF — 164 |
Active Optical Armored 4K HDMI Cable |
50.00m (164ft) |
|
CP–AOCH/PF — 197 |
Active Optical Armored 4K HDMI Cable |
60.00m (197ft) |
|
CP–AOCH/PF — 230 |
Active Optical Armored 4K HDMI Cable |
70.00m (230ft) |
|
CP–AOCH/PF — 262 |
Active Optical Armored 4K HDMI Cable |
80.00m (262ft) |
|
CP–AOCH/PF — 328 |
Active Optical Armored 4K HDMI Cable |
100.00m (328ft) |
Video
-
Video Resolution: Up to 4K 60Hz 4:4:4 (3840x2160 & 4096x2160)
-
Data Rate: Up to 18 Gbps
-
HDMI Compliance: HDCP and EDID
Audio
-
Supported audio formats (when Audio is enabled): Dolby® Digital Plus, Dolby® TrueHD, DTS–HD Master Audio®, DVD Audio, SA–CD
PHYSICAL
-
Connector-1 (source end): Male HDMI Type A, 24K gold–plated
-

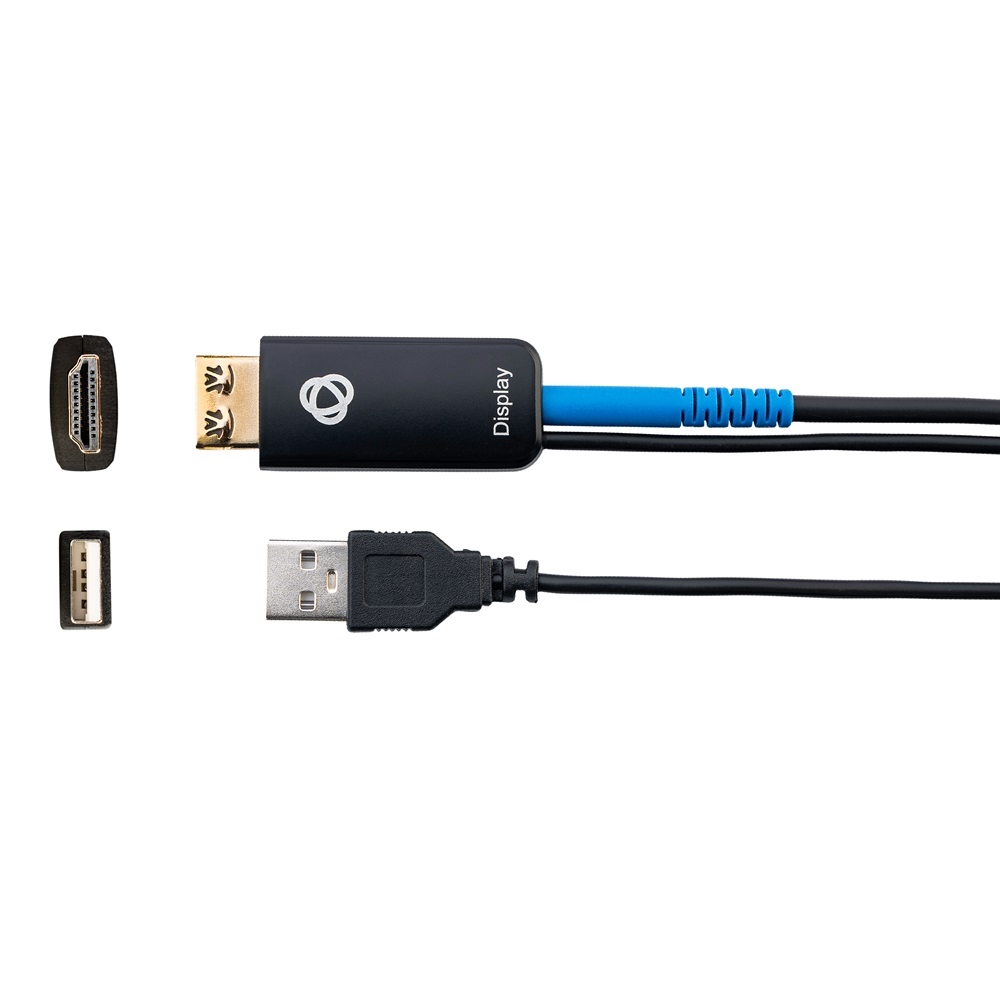

Connector-2 (display end): Male HDMI Type A, 24K gold–plated K–Lock
-
Connector-2 (display end): Connector (external power input via USB pigtail with type A connector)
-
Cable material: Plastic shell with aluminum shield over the PCBA
-
Cable construction: 8xMM fiber cable OM3
-
Long term crush resistance: 500N(50kg)
-
Short term crush resistance: 2000 (200kg)
-
Bending radius: 20mm Min
-
Long term tensile strength test: 80(8kg)
-
Short term tensile strength test: 150(15kg)
-
Strain Relief (SR) pulling force: 12kg max
JACKET
-
Material: PVC Plenum rated
-
Color: Black
-
Diameter: 4.0±0.3mm
Power
-
Source: No external power supply is needed (draws current from the video source)
-
Display: Need to connect the USB type A connector for external power supply
Environmental Conditions
-
Operating Temperature: +32~+122˚F (0~+50˚C)
-
Storage Temperature: –40~+158˚F (–40~+70˚C)
-
Operating Humidity: 10 ~ 80%
REGULATORY
-
Environmental: CE, FCC, TUV for UL 62368–1:2019 CSA C22.2 NO. 62368–1:19
-
Safety: RoHS 2011/65/ EU
