Kramer C-HM/HM-KRTL High–Speed 4K HDMI Cable with Ethernet — Retail Pack
Lengths — 1–3m (3–10ft)
K–Lock Connectors
Audio — E

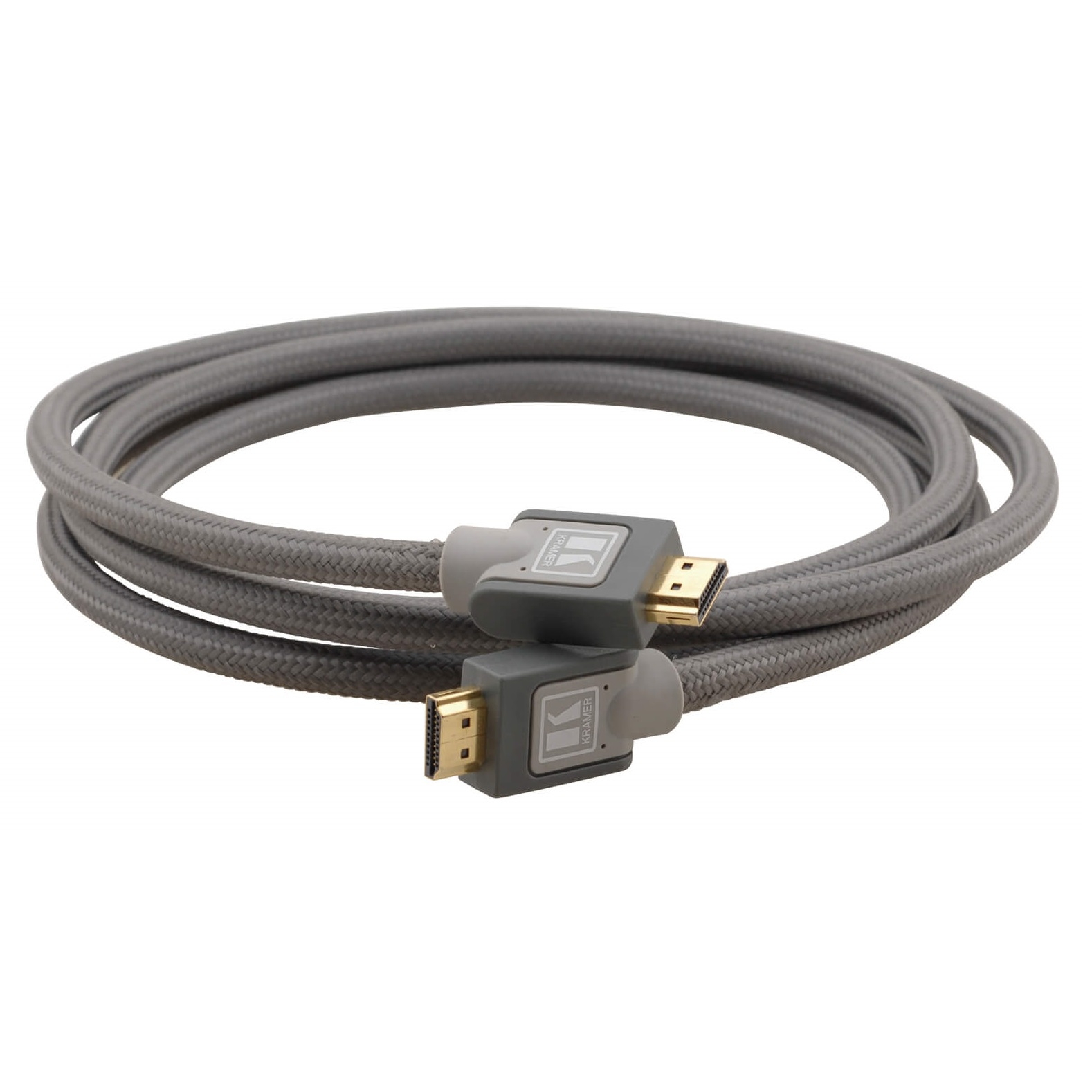

Kramer’s C−HM/HM−KRTL high−speed HDMI cable with Ethernet is designed for advanced equipment that requires high−speed cable connections to ensure a high−definition experience with the maximum audio and visual impact.
High Data Transfer Rate — Up to 10.2Gbps.
Supported Resolutions — Up to 4K@60Hz (4:4:4).
Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
High Quality Connectors — 24K gold–plated connectors resist corrosion, and offer the best possible connectivity.
K–Lock Pull–Resistant Connectors — Provide 15lbs of restraining force for a non–slip connection.
Varied Selection of Lengths — Available in retail packaged versions of 1, 2, 3m (3, 7 and 10ft).
|
MODEL |
DESCRIPTION |
LENGTH |
RESOLUTION |
|
C–HM/HM–KRTL–1M |
High–Speed HDMI™ Cable with Ethernet, Retail Pack |
3.3' 1.00(M) |
4K@60Hz (4:4:4) |
|
C–HM/HM–KRTL–2M |
High–Speed HDMI™ Cable with Ethernet, Retail Pack |
6.6' 2.00(M) |
4K@60Hz (4:4:4) |
|
C–HM/HM–KRTL–3M |
High–Speed HDMI™ Cable with Ethernet, Retail Pack |
10' 3.00(M) |
4K@60Hz (4:4:4) |
TYPE
High–speed HDMI cables
RESOLUTIONS SUPPORTED
480i, 480p, 720p, 1080i, 1080p
CONDUCTOR AWG
3–25ft cables use 26 AWG (7/0.16)
35 & 50ft use 24 AWG (7/0.2)
SHIELD
Dual overall shield against EMI/RFI interference, (a) Al–Mylar, (b) tinned copper
CABLE OD (MM)
3–25ft: 7.6 mm
35 & 50ft: 8.3mm
MOLDED CONNECTORS
Yes
GOLD-PLATED CONNECTORS
Yes
HDCP COMPLIANT
Yes
FLAME TEST
CL2
