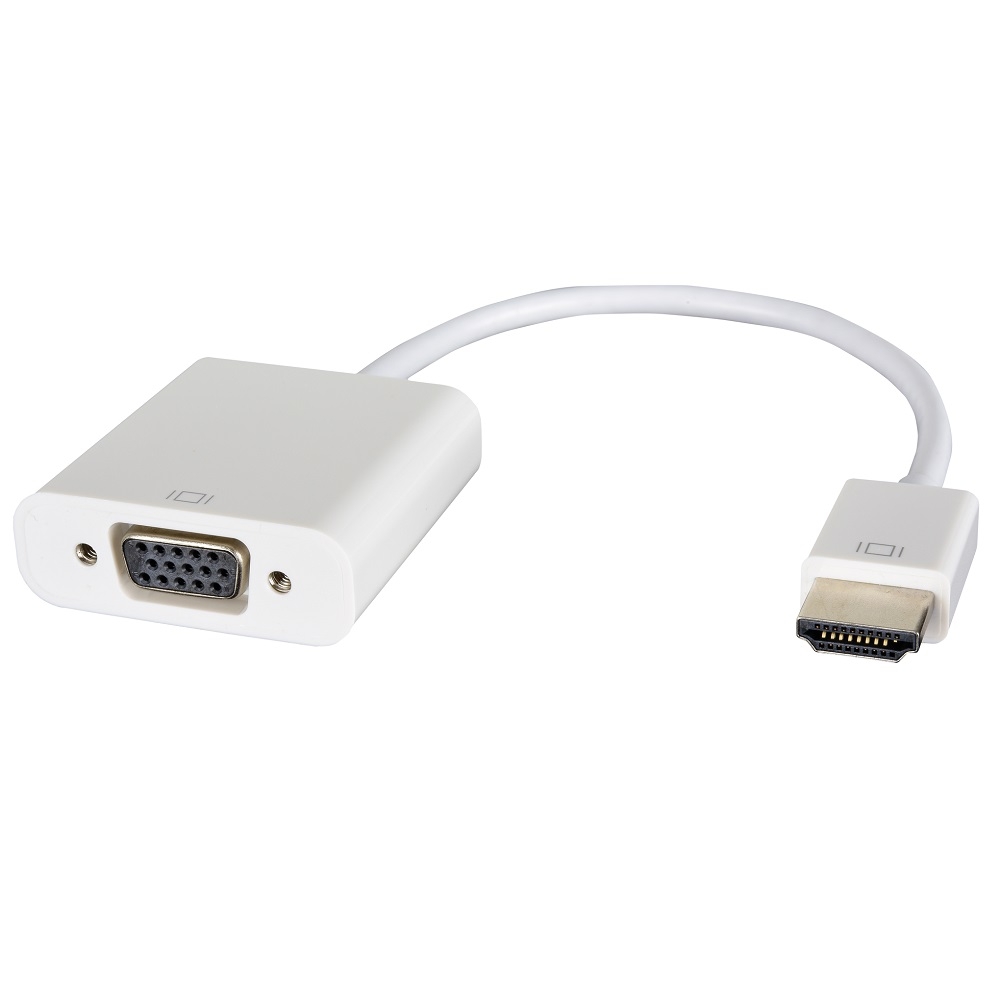

Cáp chuyển HDMI-VGA ADC−HM/GF
Mô tả ngắn
HDMI™(M) to VGA(F) active adapter cable with separate audio output.
Max resolution — 1080p.
3.5mm, 2–channel analog audio output.
Hotline: 0918 642 886
ADC−HM/GF is an HDMI™(M) to VGA(F) adapter cable. Short and flexible in design, this active cable converts a digital HDMI signal to an analog video signal while outputting the HDMI audio to a separate stereo audio output.
ADC−HM/GF is perfect for connecting an HDMI−equipped desktop PC or laptop to a VGA display or projector with a resolution of up to 1920x1200@60Hz.
- Max Resolution — 1080p.
- Analog Audio Output — 2–channels.
- Plug and Play Installation — No software required.
- Powering Options — Receives power from the HDMI port bus power, with optional micro–USB auxiliary power, as needed.
VIDEO
Max Resolution: 1080p
AUDIO
Analog Audio: 2 channels
PHYSICAL
Cable type: Active
Input Connector: HDMI type–A (M)
Output Connector 1: 15–pin HD(F)
Output Connector 2: 3.5 mm stereo audio
ENVIRONMENTAL CONDITIONS
Humidity: 40%–85%RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: –10°C to 70°C (14°F to 158°F)
