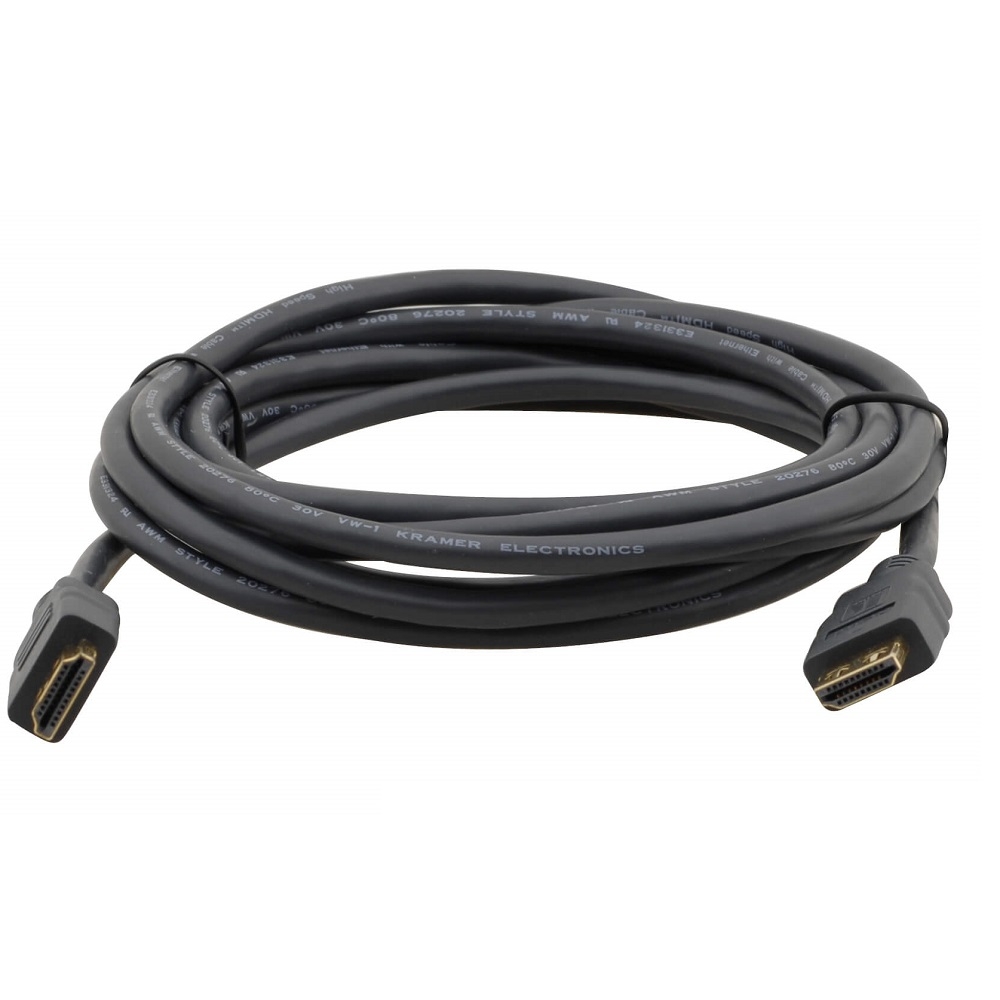

Dây cáp Flexible HDMI C-MHM/MHM
Mô tả ngắn
Flexible High–Speed HDMI Cable with Ethernet 4K@60Hz (4:4:4)
Lengths — 0.3–10.7m (1–35ft)
K–Lock Connectors
Hotline: 0918 642 886
Kramer's C−MHM/MHM is a flexible high−speed 4K@60Hz (4:4:4) HDMI cable with Ethernet. It is a high−performance cable that supports signals up to 4K@60Hz (4:4:4) and HDMI Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC.
-
- Max. Resolution — 4K@60Hz (4:4:4).
-
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
-
- Available Colors — gray and white.
-
- Varied Selection of Lengths — Available in versions of 0.3 to 10.7m (1, 2, 3, 6, 10, 15, 25 and 35ft).
|
MODEL |
DESCRIPTION |
LENGTH |
RESOLUTION |
|
C–MHM/MHM–1 |
Flexible High–Speed HDMI Cable with Ethernet |
0.30m (1ft) |
4K@60Hz (4:4:4) |
|
C–MHM/MHM–2 |
Flexible High–Speed HDMI Cable with Ethernet |
0.60m (2ft) |
4K@60Hz (4:4:4) |
|
C–MHM/MHM–3 |
Flexible High–Speed HDMI Cable with Ethernet |
0.90m (3ft) |
4K@60Hz (4:4:4) |
|
C–MHM/MHM–6 |
Flexible High–Speed HDMI Cable with Ethernet |
1.80m (6ft) |
4K@60Hz (4:4:4) |
|
C–MHM/MHM–10 |
Flexible High–Speed HDMI Cable with Ethernet |
3.00m (10ft) |
4K@60Hz (4:4:4) |
|
C–MHM/MHM–15 |
Flexible High–Speed HDMI Cable with Ethernet |
4.60m (15ft) |
4K@60Hz (4:4:4) |
|
C–MHM/MHM–25 |
Flexible High–Speed HDMI Cable with Ethernet |
7.60m (25ft) |
4K@60Hz (4:2:0) |
|
C–MHM/MHM–35 |
Flexible High–Speed HDMI Cable with Ethernet |
10.70m (35ft) |
4K@60Hz (4:2:0) |
VIDEO
-
Max Resolution for 1-15ft(0.3-4.6m) lengths: 4K60Hz (4:4:4)
-
Max Resolution for 25-35ft (7.6-10.7m) lengths: 4K60 (4:2:0)
-
Max Data Rate for 1-15ft (0.3-4.6m) lengths: 18Gbps (6Gbps per channel)
-
Max Data Rate for 25-35ft (7.6-10.7m) lengths: 10.2Gbps (3.4Gbps per channel)
-
HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision
AUDIO
-
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
-
Connectors: 2 Male HDMI Type A, 24K gold–plated with K–Lock
-
Bending Radius: 58mm
CONDUCTORS
-
Diameter: 30AWG (7/0.1)
-
Material: Tinned Copper
SCREENING
-
Type: Triple shielding
JACKET
-
Material: PVC
-
Available Colors: Gray, White
-
Diameter: 5.8 ± 0.15mm
ELECTRICAL
-
Temperature Rating: 80⁰C
-
Voltage Rating: 30V
-
Conductor Resistance: 376.96Ω/KM MAX. at 20℃
REGULATORY
-
Rating (NEC/UL/CSA): VW–1/CMG–FT4
-
RoHS: 2011/65/ EU
