Lengths 0.9–15.2m (3–50ft)
K–Lock Connectors

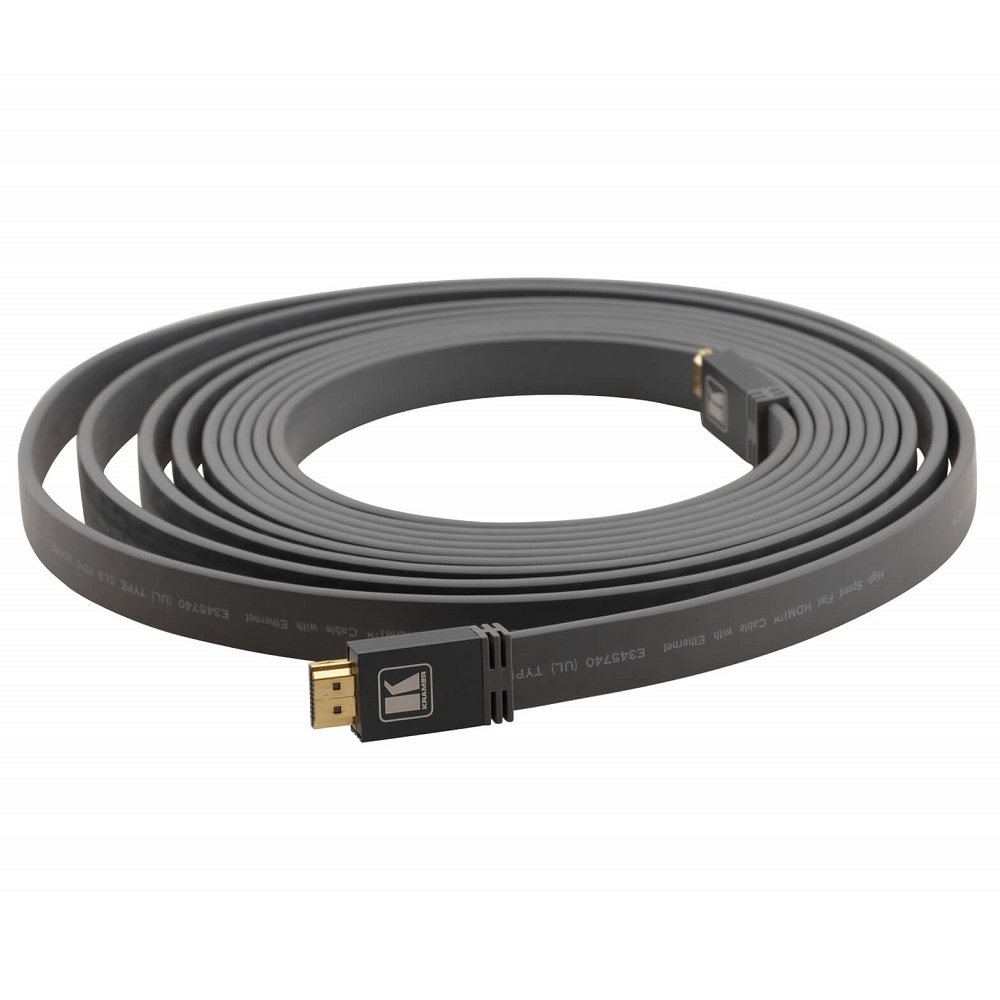

Kramer’s C−HM/HM/FLAT−KRTL flat high−speed HDMI cable with Ethernet is designed for advanced equipment that requires high−speed cable connections to ensure a high−definition experience with the maximum audio and visual impact.It routes through the wall, under the carpet, around corners and behind the entertainment system with ease. The flat design of the cable renders it unobtrusive. It supports resolutions up to 4K@60Hz (4:4:4).
- High Data Transfer Rate. — 18Gbps.
- Supported Resolutions — Up to 4K@60Hz (4:4:4).
- Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
- Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
- High Quality Connectors — 24k gold–plated connectors resist corrosion, and offer the best possible connectivity.
- K–Lock Pull–Resistant Connectors — Provide 15lbs of restraining force for a non–slip connection.
- Varied Selection of Lengths — Available in retail packaged versions of 1, 2, 3, 5, 7, 10m, (3 to 32.8ft).
TYPE
High–speed HDMI cable with Ethernet
RESOLUTIONS SUPPORTED
Up to 4K@60Hz (4:4:4)
CONDUCTOR AWG
1–7m (3–23ft) 28AWG, 10 (32ft) 26AWG
SHIELD
Dual overall shield against EMI/RFI interference
CABLE OD (MM)
1–7m 3.0x14.5mm, 10m 4.0x17.0mm
MOLDED CONNECTORS
Yes
GOLD-PLATED K-LOCK CONNECTORS
Yes
HDCP COMPLIANT
Yes
FLAME RATING
NEC–UL/CSA: CMG–CL3/FT4
Kramer CP-AOCH/PF Pure fiber Optical Armored 4K HDMI Cable
4K@60 (4:4:4) 18 Gbps for all lengths
Plenum rated
K–LOCK connectors
Extremely Durable
Kramer CLS-HM/HM/ETH High–Speed HDMI Cable with Ethernet Low Smoke & Halogen Free
Lengths — 0.9–15.2m (3–50ft)
HDMI Compliant
Kramer CLS-AOCU/CH Active Optical 4K USB Type C (M) to HDMI (M) — Low Smoke & Halogen Free
Lengths — 5–30m (15–98')
Max. data rate: 18Gbps
Max. resolution: 4K@60Hz
Low smoke & halogen-free
No external power required
Supports HDCP 2.2
