Dây cáp HDMI Ultra-Slim C-HM/HM/PICO
Mô tả ngắn
Ultra–Slim Flexible High–Speed HDMI Cable with Ethernet
Lengths — 1–10ft (0.3–3.0m)
Max Resolution — 4K@60Hz (4:4:4)
Hotline: 0918 642 886

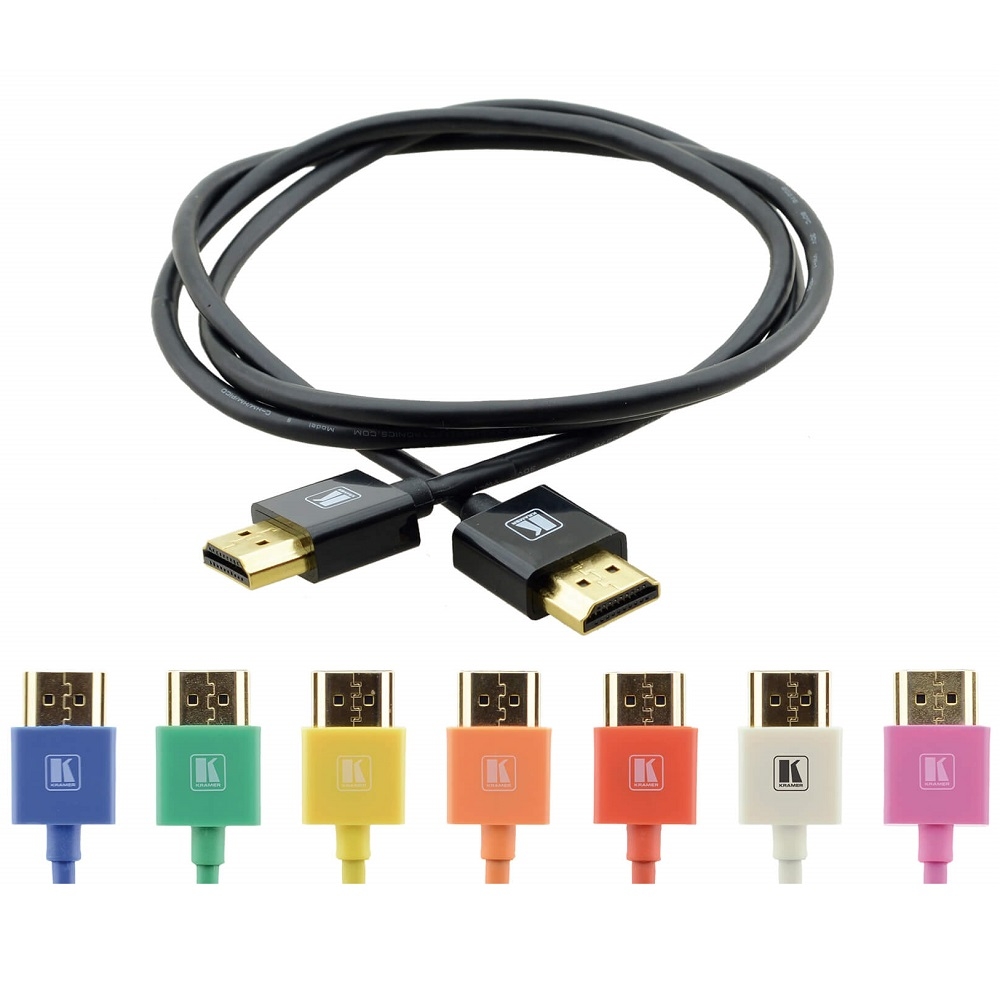

Kramer's C−HM/HM/PICO is an ultra−slim high−speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
-
- Max Resolution — 4K@60Hz (4:4:4).
-
- Quality Performance — Kramer’s new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
-
- High–Quality Connectors — Slim HDMI connector heads 16.0 mm wide and 8.0mm thick (5/8" wide and 5/16" thick).
-
- Space Saving — A tighter bend radius combined with the low–profile connector can save up to 1" of depth behind the equipment.
-
- HDMI Support — Signals up to ultra–HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, CEC.
-
- Available Colors — Black, blue, green, yellow, orange, red, pink and white.
-
- Varied Selection of Lengths — Available in versions of 0.3 to 3.0m (1, 2, 3, 6 and 10ft).
VIDEO
-
Max Resolution for 3-6ft (0.9-1.8m) lengths: 4K60Hz (4:4:4)
-
Max Resolution for 10ft (3m) length: 4K60Hz (4:2:0)
-
Max Data Rate for 3-6ft (0.9-1.8m) lengths: 18Gbps (6 Gbps per channel)
-
Max Data Rate for 10ft (3m) length: 10.2Gbps (3.4 Gbps per channel)
-
HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision
AUDIO
-
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
-
Connectors: 2 Male HDMI Type A, 24K gold–plated connector
-
Bending radius: 36mm
CONDUCTORS
-
Diameter: 34AWG(7/0.06)
-
Material: Tinned Copper
SCREENING
-
Type: Triple shielding
JACKET
-
Material: PVC
-
Available Colors: Black, blue, green, yellow, orange, red, pink and white
-
Diameter: 3.6± 0.15mm
ELECTRICAL
-
Temperature Rating: 80⁰C
-
Voltage Rating: 30V
-
Conductor Resistance: 34AWG–1.08KΩ/KM MAX. at 20℃
REGULATORY
-
Rating (NEC/UL/CSA): VW–1
