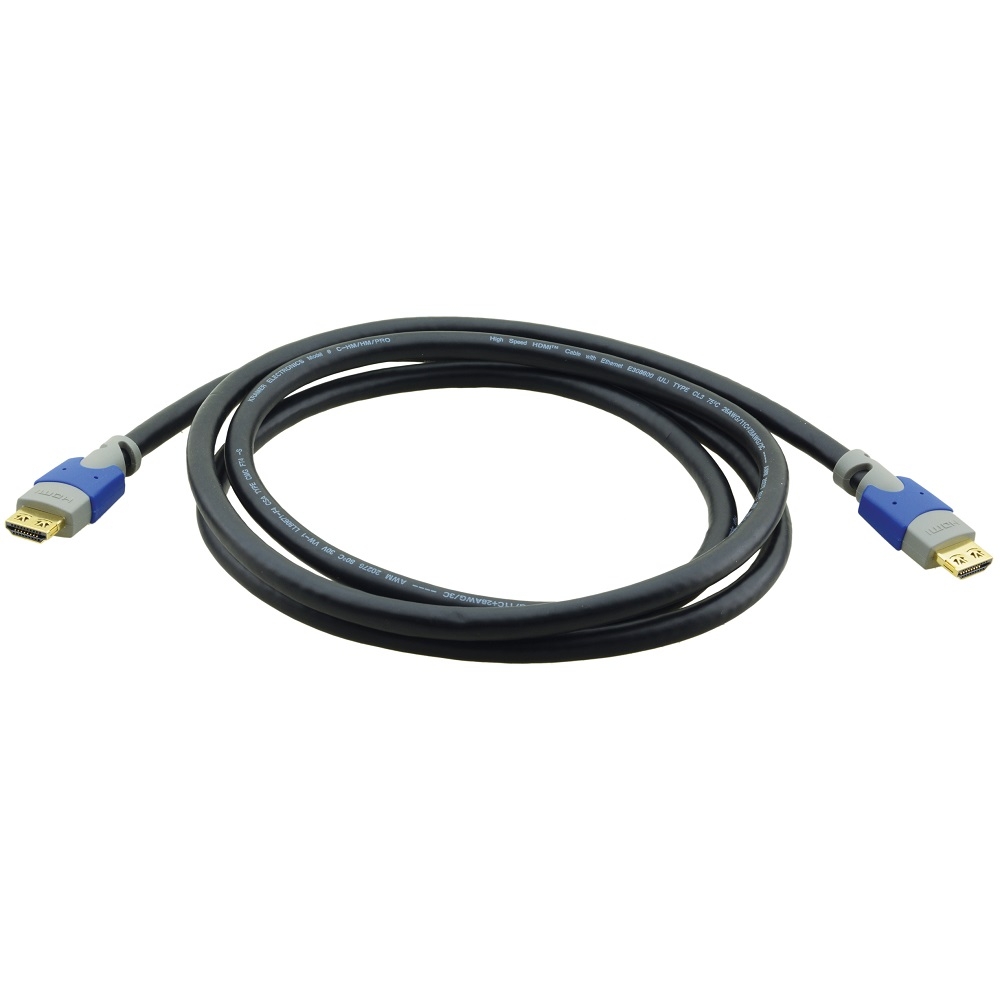

Dây cáp HDMI Premium C-HM/HM/PRO
Mô tả ngắn
Kramer Premium / High–Speed HDMI Cable with Ethernet
K–Lock Connectors
Lengths — 0.9–19.8m (3–65ft)
Hotline: 0918 642 886
Kramer's C−HM/HM/PRO HDMI cable delivers high−speed, high−performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4). With pro−grade heavy−duty construction, triple−shield bonded pairs and K−Lock connectors, PRO series cables are robust and reliable for the most demanding applications.
-
- Max. Data Rate — 18Gbps.
-
- Max. Resolution — 4K@60Hz (4:4:4).
-
- Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
-
- Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
-
- High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
-
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
-
- Shield — Triple overall shield against EMI/RFI interference
-
- Varied Selection of Lengths — Available in versions of 0.9 to 19.8m (3, 6, 10, 15, 25, 35, 50 and 65ft).
|
MODEL |
DESCRIPTION |
LENGTH |
RESOLUTION |
|
C–HM/HM/PRO–3 |
Premium/High–Speed HDMI Cable with Ethernet |
0.90m (3ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/PRO–6 |
Premium/High–Speed HDMI Cable with Ethernet |
1.80m (6ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/PRO–10 |
Premium/High–Speed HDMI Cable with Ethernet |
3.00m (10ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/PRO–15 |
Premium/High–Speed HDMI Cable with Ethernet |
4.60m (15ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/PRO–20 |
High Speed HDMI™ Cable with Ethernet |
6.10m (20ft) |
4K@60Hz (4:4:4) |
|
C–HM/HM/PRO–25 |
High Speed HDMI™ Cable with Ethernet |
7.60m (25ft) |
4K@60Hz (4:2:0) |
|
C–HM/HM/PRO–35 |
High Speed HDMI™ Cable with Ethernet |
10.70m (35ft) |
4K@60Hz (4:2:0) |
|
C–HM/HM/PRO–40 |
High Speed HDMI™ Cable with Ethernet |
12.00m (40ft) |
4K@60Hz (4:2:0) |
|
C–HM/HM/PRO–50 |
High Speed HDMI™ Cable with Ethernet |
15.20m (50ft) |
1080p@60Hz 12-Bit |
|
C–HM/HM/PRO–65 |
High Speed HDMI™ Cable with Ethernet |
19.50m (65ft) |
1080p@60Hz |
VIDEO
-
Max Resolution for 3–20ft (.9–6.1m) lengths: 4K@60Hz (4:4:4)
-
Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@30Hz (4:4:4)
-
Max Resolution for 50ft (15.2m) lengths: 1080p
-
Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps (6Gbps per channel)
-
Max Data Rate for 25–35ft (7.6–10.7m) : 10.2 Gbps (3.4Gbps per channel)
-
Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (.99Gbps per channel)
-
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
-
HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH
AUDIO
-
Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
-
HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
-
HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
CONDUCTORS
-
Material: Bare Copper
-
3–35ft (.9–10.7m) lengths: 26AWG (7/0.160)
-
50ft (15.2m) lengths: 24AWG (7/0.20)
SCREENING
-
Type: Triple shielding
JACKET
-
Material: PVC
-
Color: Black
-
Diameter for 3–35ft (.9–10.7m) lengths: 8 ± 0.19mm
-
Diameter for 50ft (15.2m) lengths: 9.50 ± 0.25mm
MECHANICAL
-
Cable Bending Radius for 3–35ft (.9–10.7m) lengths: 80mm
-
Cable Bending Radius for 50ft (15.2m) lengths: 95mm
ELECTRICAL
-
Temperature Rating: 80°C
-
Voltage Rating: 30V
-
Conductor Resistance – 26AWG: 148Ω/km
-
Conductor Resistance – 24AWG: 63.2Ω/km MAX. at 20Ω
STANDARDS COMPLIANCE
-
Safety: Flammability Rating — CL3/FT4
-
Environmental: RoHS 2011/65/ EU
