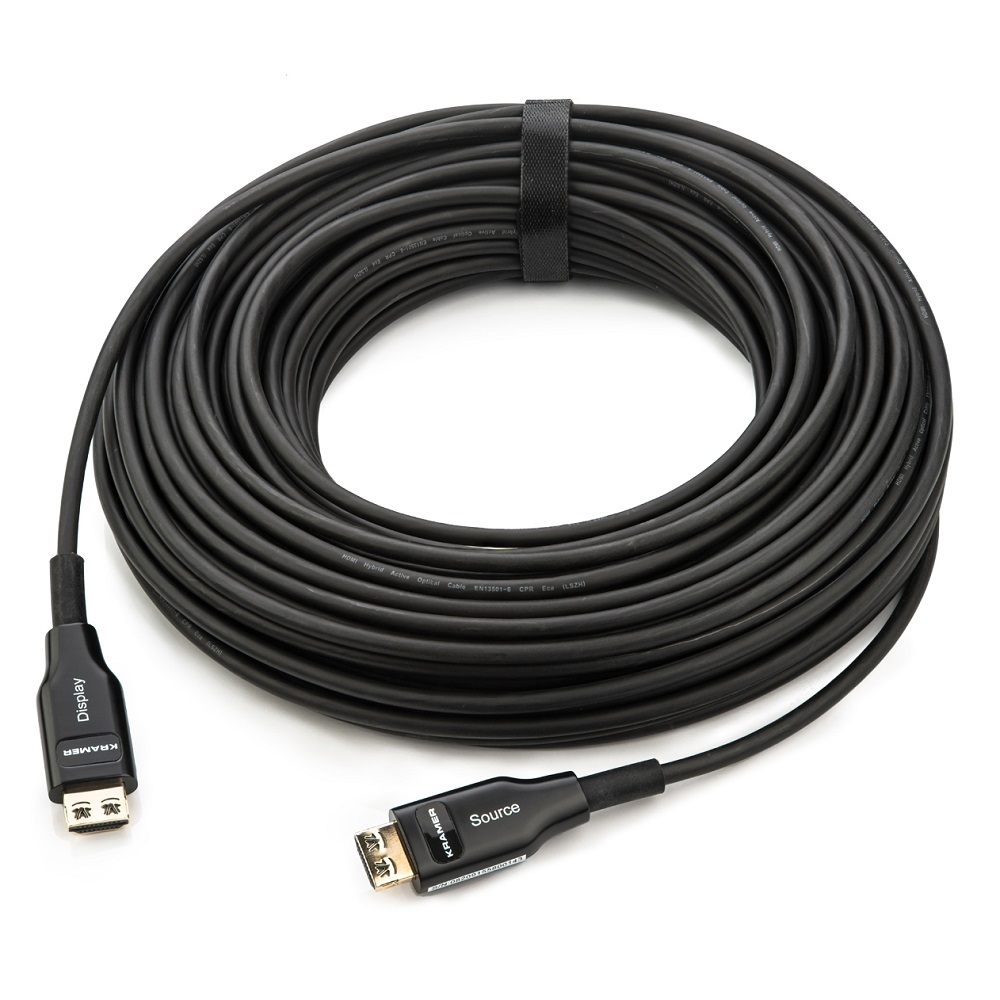

Dây cáp HDMI Optic Hybrid Cable - LSHF CLS-AOCH/60F
Mô tả ngắn
Max. data rate: 18Gbps
Max. resolution: 4K@60Hz
Low smoke & halogen free
K–Lock connectors
Lengths — 10–90m (33–295ft)
No external power required
Hotline: 0918 642 886
CLS−AOCH/60F is an innovative active optical HDMI cable for 4K signals up to 90 meters (295ft).
CLS−AOCH/60F cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CLS−AOCH/60F cables are an ideal solution for maximizing signal integrity in critical AV installations.
-
- Video Resolution — Up to 4K@60Hz (4:4:4).
-
- High Data Transfer Rate — Up to 18Gbps.
-
- Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio.
-
- HDMI Support — HDCP 2.2/1.4, HDR, EDID, ARC and CEC.
-
- High–Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
-
- Reduced EMI & RFI.
-
- Thin Construction — 4.5mm diameter.
-
- Jacket Construction — Low smoke & halogen free.
-
- RoHS 2011/65/EU CE,FCC Compliant.
-
- Varied Selection of Lengths — Available in versions from 10 to 90m (33 to 295ft).
|
MODEL |
DESCRIPTION |
FEET |
RESOLUTION |
|
CLS–AOCH/60F–33 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
10.00m (33ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–50 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
15.20m (50ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–66 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
20.00m (66ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–98 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
30.00m (98ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–131 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
40.00m (131ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–164 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
50.00m (164ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–197 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
60.00m (197ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–230 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
70.00m (230ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–262 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
80.00m (262ft) |
4K@60Hz (4:4:4) |
|
CLS–AOCH/60F–295 |
High–Speed HDMI Optic Hybrid Cable — LSHF |
90.00m (295ft) |
4K@60Hz (4:4:4) |
VIDEO
-
Max Resolution: 4K@60Hz
-
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
-
HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC
AUDIO
-
Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
-
HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
-
HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
GENERAL
-
Cable Type: Hybrid with OM3 fiber and copper wire
-
O/E Converter: 4 channel 850 nm VCSEL array
-
Material: Bare Copper
-
Flammability: LSHF
MECHANICAL
-
Cable Bending Radius: 20mm
JACKET
-
Color: Black
-
Diameter : 4.5mm
POWER
-
Consumption: 250mW (max)
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 50°C
-
Storage Temperature: –40–70°C
STANDARDS COMPLIANCE - EC VERIFIED
-
Safety: CE/FCC
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
Environmental: REACH,RoHS 2011/65/ EU
