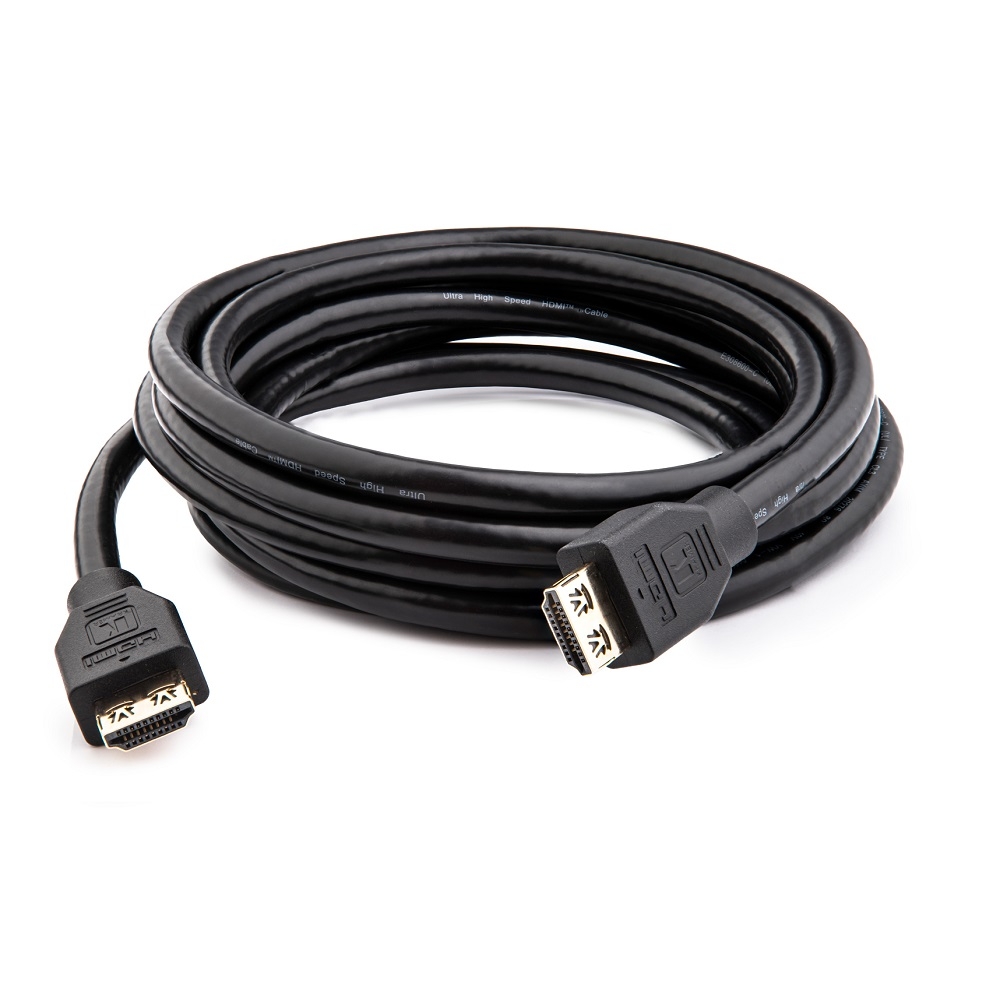

Dây cáp HDMI 8K C-HMU
Mô tả ngắn
Kramer C-HMU Ultra High–Speed HDMI Cable with Ethernet
Max. Data Rate: 48Gbps
Max. Resolution: 8K@60Hz
Short Connectors
K–Lock Connectors
Lengths — 0.9–2.7m (3–9ft)
Hotline: 0918 642 886
Kramer C−HMU is an HDMI™ cable that delivers ultra−high−speed, high−performance digital video, audio and eARC (Enhanced Audio Return Channel) with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 8K@60Hz 48Gbps. With K−Lock connectors, a short HDMI connector, and reduced bending radius, this cable easily fits into tight spaces behind a television or in a cabinet. C−HMU cables are robust and reliable for the most demanding applications.
- Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
- High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
- Varied Selection of Lengths — Available in versions of 0.9, 1.8, 2.7m (3, 6, 9ft ).
|
MODEL |
DESCRIPTION |
FEET |
|
C–HMU–3 |
Ultra High–Speed HDMI Cable with Ethernet |
0.90m (3ft) |
|
C–HMU–6 |
Ultra High–Speed HDMI Cable with Ethernet |
1.80m (6ft) |
|
C–HMU–9 |
Ultra High–Speed HDMI Cable with Ethernet |
2.70m (9ft) |
VIDEO
-
Max Resolution: 8K@60Hz
-
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
-
HDMI Compliance: Dynamic HDR, HDCP 2.2, EDID and CEC, eARC and ETH
AUDIO
-
Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
-
HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
-
HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
-
Short connector: 3.1mm
CONDUCTORS
-
Material: Bare Copper
-
3–6ft (.9–1.8m) lengths: 30AWG (1/0.254)
-
9ft (2.7m) length: 28AWG (1/0.32)
MECHANICAL
-
Cable Bending Radius for 3–6ft (.9–1.8m) lengths: 30mm
-
Cable Bending Radius for 9ft (2.7m) lengths: 35.5mm
SCREENING
-
Type: Triple shielding
JACKET
-
Material: PVC
-
Color: Black
-
Diameter for 3–6ft (.9–1.8m) lengths: 6 ± 0.15mm
-
Diameter for 9ft (2.7m) lengths: 7.1 ± 0.15mm
ELECTRICAL
-
Temperature Rating: 80°C
-
Voltage Rating: 30V
-
Conductor Resistance – 30AWG: 242Ω/km Max 20℃
-
Conductor Resistance – 28AWG: 381Ω/km Max 20℃
STANDARDS COMPLIANCE
-
Safety: Flammability Rating — CL3
-
Environmental: REACH,RoHS 2011/65/ EU
