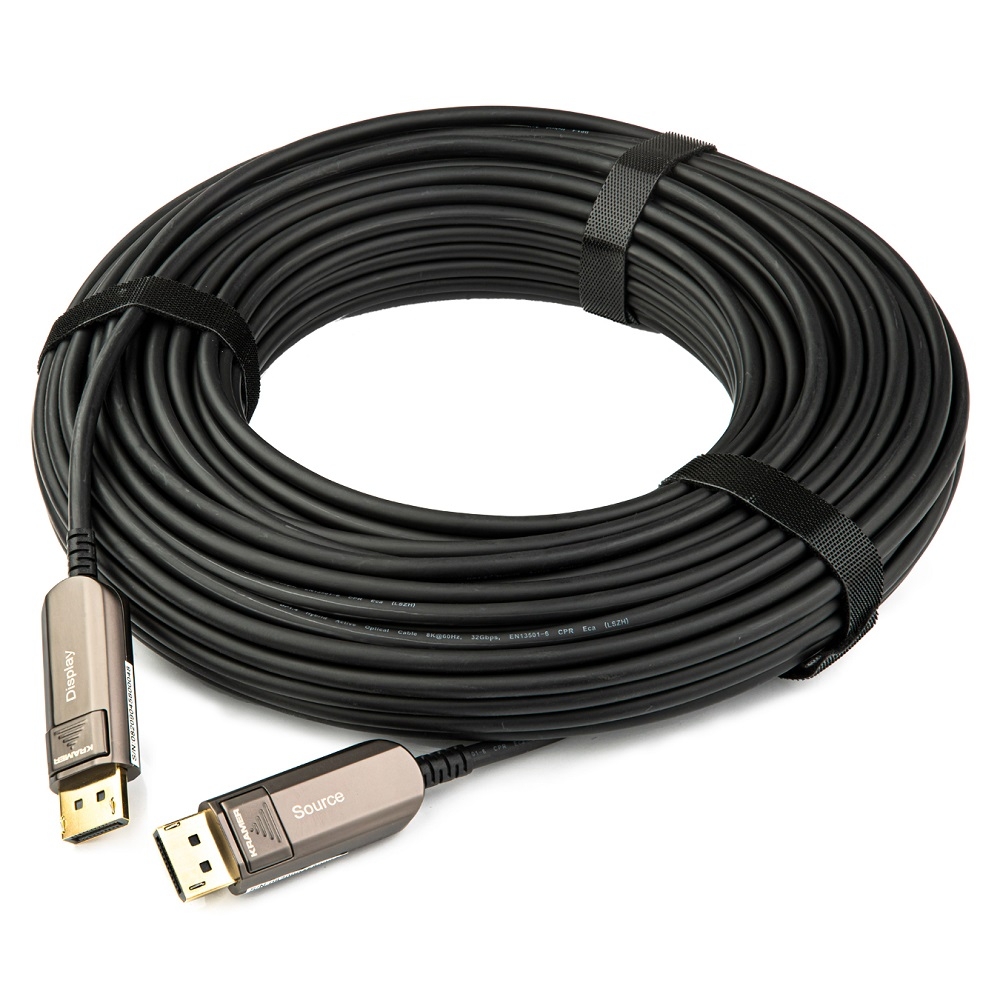

Dây cáp DisplayPort 8K Active Optical CLS-AOCDP/UF
Mô tả ngắn
Kramer Active Optical DisplayPort Cable
Max. Resolution — 8K@60Hz
Max. Data Rate — 32.4Gbps
HDCP 1.4/2.2
Low smoke & halogen-free
Hotline: 0918 642 886
CLS-AOCDP/UF is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS-AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator−oriented features and the latest advances in DisplayPort1.4 technology.
- Latest DisplayPort Technology — Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.
- Streamlines Installations — Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
- High Data Transfer Rate — Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- No External Power Needed — Powers the active units via the DisplayPort connector.
- Thin Construction — 4.8mm diameter.
- Safe Construction — Low smoke & halogen free.
- Compliance — RoHS 2011/65/EU compliant, CE/FCC.
|
MODEL |
DESCRIPTION |
FEET |
RESOLUTION |
|
CLS–AOCDP/UF–33 |
Active Optical DisplayPort Cable |
10.00m (33ft) |
8K@60Hz |
|
CLS–AOCDP/UF–50 |
Active Optical DisplayPort Cable |
15.20m (50ft) |
8K@60Hz |
|
CLS–AOCDP/UF–66 |
Active Optical DisplayPort Cable |
20.00m (66ft) |
8K@60Hz |
|
CLS–AOCDP/UF–98 |
Active Optical DisplayPort Cable |
30.00m (98ft) |
8K@60Hz |
|
CLS–AOCDP/UF–131 |
Active Optical DisplayPort Cable |
40.00m (131ft) |
8K@60Hz |
|
CLS–AOCDP/UF–164 |
Active Optical DisplayPort Cable |
50.00m (164ft) |
8K@60Hz |
|
CLS–AOCDP/UF–197 |
Active Optical DisplayPort Cable |
60.00m (197ft) |
8K@60Hz |
|
CLS–AOCDP/UF–230 |
Active Optical DisplayPort Cable |
70.00m (230ft) |
8K@60Hz |
|
CLS–AOCDP/UF–262 |
Active Optical DisplayPort Cable |
80.00m (262ft) |
8K@60Hz |
|
CLS–AOCDP/UF–295 |
Active Optical DisplayPort Cable |
90.00m (295ft) |
8K@60Hz |
|
CLS–AOCDP/UF–328 |
Active Optical DisplayPort Cable |
100.00m (328ft) |
8K@60Hz |
VIDEO
-
Max. Resolution: 8K@60Hz (7680 × 4320)
-
Max. Data Rate: 32.4 Gbps (HBR3)
-
Max Color Depth: 48bit
-
DisplayPort Support: HDCP 2.2, EDID and DPCP
AUDIO
-
Channels: Up to 8 of 16 or 24bits linear PCM
-
Sampling Rate: 32 to 192KHz
CONSTRUCTION
-
Connectors: Male DisplayPort gold plated
-
Cable Structure: Hybrid Optical Fiber Cable
-
Fiber Optic: 4X850nm Multi–mode fiber
-
Fiber Cable Type: Hybrid cable — 4 x fiber and 8 x copper wires
-
Conductors: 2px26AWG + 4cx28AWG + 2cx24AWG
JACKET
-
Outer Sheath Material: LSHF
-
Outer Sheath Color: PVC Black
-
Outer Sheath Diameter: 4.8mm
PHYSICAL
-
Minimum Cable Bending Radius: 48mm
-
Connector Max. Pulling Strength: 25.173Kg
-
Max. Compression Load Resistance: 300N
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0 to +50˚C
-
Storage Temperature: –20 to +85˚C
-
Operating Humidity: 5 to 85%
POWER
-
Consumption: <0.5W for each end
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
LSHF: EN 60332–1–2, EN 50399
-
RoHS: 2011/65/ EU
-
Certified: CE/FCC
