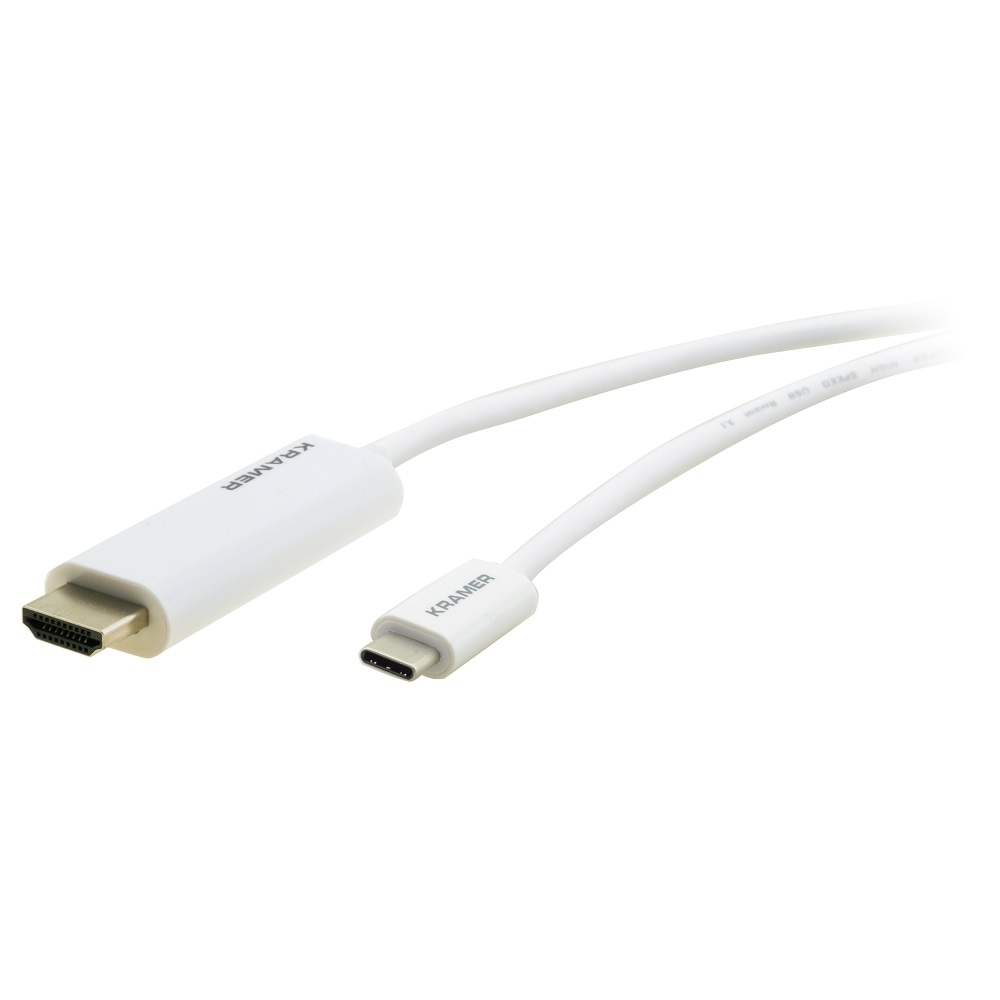

USB Type–C (M) to HDMI (M) Cable
C-USBC/HM is a high quality USB type−C (M) to HDMI (M) 6ft cable, that enables HDMI equipped monitors, TVs and projectors to be connected to any USB−C port that supports DP Alt Mode (DisplayPort Alternate Mode).
This cable support up to 4K@60Hz (4:4:4) resolution and delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation.
- Max. Resolution — 4K@60Hz (4:4:4).
- HDCP 2.2 Support.
- Enables connecting an HDMI equipped monitor or projector to a USB–C port using a single cable.
- No special driver installation or additional power source is required.
- Regulatory Standards — CE, FCC and RoHS.
|
MODEL |
DESCRIPTION |
FEET |
RESOLUTION |
|
C–USBC/HM–6 |
USB Type–C (M) to HDMI (M) cable |
1.80m (6ft) |
4K60 (4:4:4) |
|
C–USBC/HM–10 |
USB Type–C (M) to HDMI (M) cable |
3.00m (10ft) |
4K60 (4:4:4) |
|
C–USBC/HM–15 |
USB Type–C (M) to HDMI (M) cable |
4.60m (15ft) |
4K60 (4:4:4) |
MAX. RESOLUTION
4K@60Hz (4:4:4)
CONNECTOR-A
USB type–C (male), Nickel plated
CONNECTOR-B
HDMI Type–A (male), Nickel plated
LENGTH
6ft (1.8m)
COLOR
White
ENVIRONMENTAL CONDITIONS
Humidity: 30%–80%RH
Operating temperature: 0℃–50℃
Storage Temperature: 10℃–70℃
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE, FCC and RoHS
NOTE
USB type–C port must support DP Alt Mode (DisplayPort Alternate Mode) to be compatible with this cable
