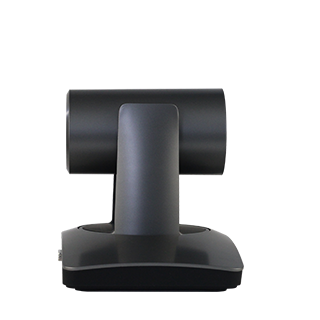

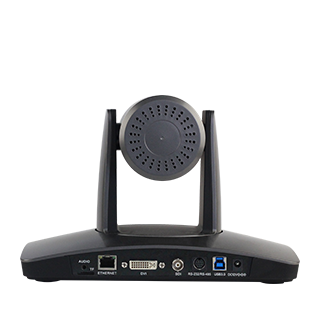

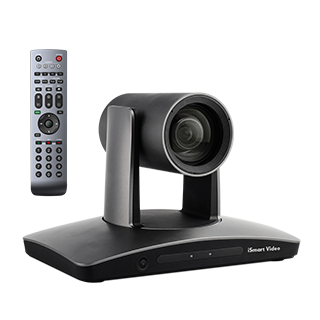

Ismart USB Lecturer Tracking PTZ Camera LTC2-A2001NV2
Mô tả ngắn
Ismart USB Lecturer Tracking PTZ Camera LTC2-A2001NV2
Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
Zoom: Optical Zoom 20x, Digital Zoom 12x
Max. Image Size: 1920 × 1080@60fps
Video Output: 3G-SDI, DVI-D, USB2.0
Hotline: 0918 642 886
Features:
- Advanced face and motion detection technology;
- Integrated Full HD full view camera and Full HD tracking camera;
- Track lecturer all around the classroom, even if lecturer walks into students area;
- Adjust automatically as per the height of lecturer;
- Keeps tracking on the object even the object is still for a long period;
- Other moving objects and video from projectors do not interfere the tracking performance;
- Smart AE: keeps the same exposure with considerable lighting variability;
- Suits all kinds of classroom with different size, shape and type.
|
Model |
LTC2-A2001NV2 |
|
Tracking Camera |
|
|
Image Sensor |
1/2.8" Exmor CMOS, 2.14MP |
|
Focal Lens |
f=4.7 ~ 94.0mm |
|
Iris |
F1.6 ~ F3.5 |
|
Optical Zoom |
20x |
|
Digital Zoom |
12x |
|
FOV |
Horizontal 59.5° ~ 2.9° |
|
Focus |
Auto, Manual, PTZ Trigger, One Push Trigger |
|
Shutter Speed |
1/1 ~ 1/10,000 |
|
Gain |
Auto, Manual |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking |
|
Exposure |
Auto, Manual, Iris Priority, Brightness Priority |
|
SN Ratio |
≥ 50dB |
|
Full View Camera |
|
|
Image Sensor |
1/2.8” CMOS |
|
Effective Pixel |
2.14MP |
|
White Balance |
Auto |
|
Exposure |
Auto |
|
Focus |
Manual |
|
Focal Distance |
2.4mm |
|
FOV |
Horizontal:68°, Vertical:41° |
|
PTZ |
|
|
Pan Range |
-170° ~ +170° |
|
Tilt Range |
-30° ~ +90° |
|
Pan Speed |
0.1° ~ 120°/s |
|
Tilt Speed |
0.1° ~ 90°/s |
|
Preset Number |
256 |
|
Control Interface |
RS-232, RS-485, USB2.0 |
|
Network Interface |
100M RJ45 |
|
Control Protocol |
PELCO-D, VISCA, UVC1.1 |
|
HD Video |
|
|
Video Output |
3G-SDI, DVI-D, USB2.0 |
|
Video Format |
1080P60/50/30/25, 1080I60/50, 720P60/50 |
|
Network |
|
|
Max. Image Size |
1920 × 1080@60fps |
|
Video Compression |
H.264/H.265 |
|
Audio Compresssion |
AAC |
|
Network Protocol |
ONVIF, RTSP, HTTP, TCP, UDP, RTMP |
|
Dual Stream |
Yes |
|
General |
|
|
Power Supply |
DC12V |
|
Power Consumption |
<15W |
|
Working Temperature |
0°C ~ +40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension(LxWxH) |
243mm x 145mm x 163mm |
