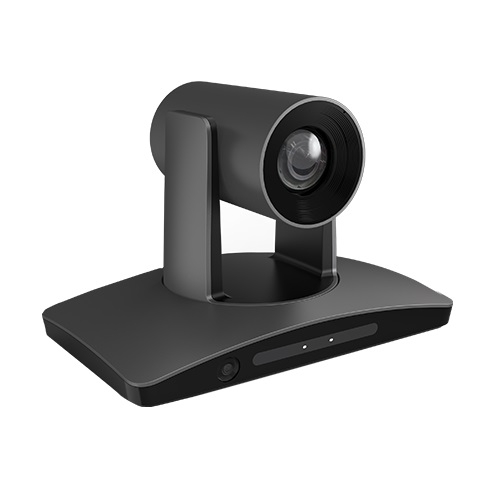

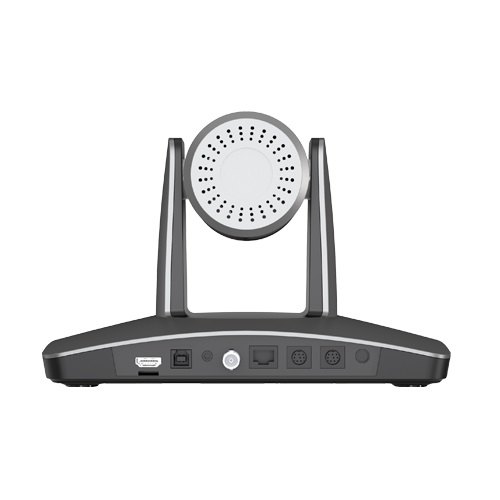

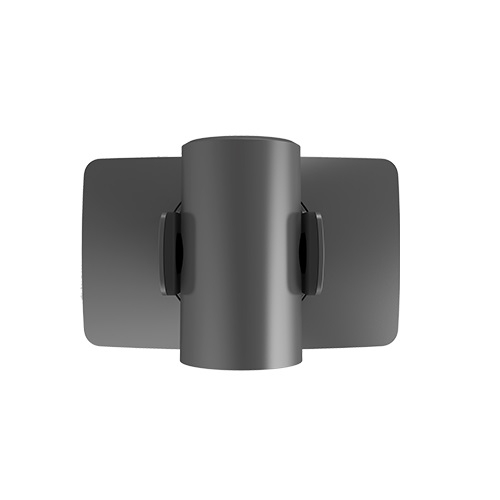

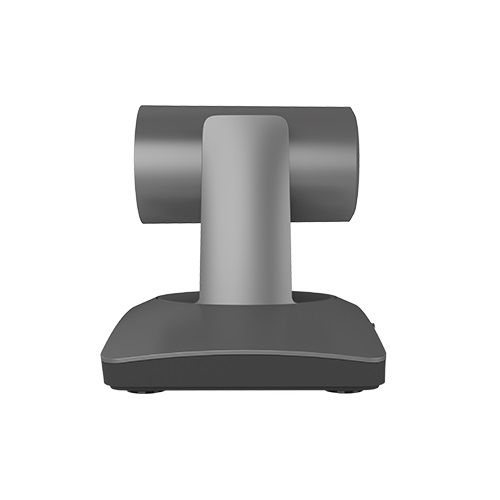

Ismart USB Lecturer Tracking PTZ Camera LTC2-A2001NV4
Mô tả ngắn
Ismart USB Lecturer Tracking PTZ Camera LTC2-A2001NV4
Image Sensor: 1/2.8” CMOS, 2.14MP;
Optical Zoom: 20X, Digital Zoom: 8X;
Integrated design, up to 1080P60 video resolution;
SDI, HDMI, Network, and USB3.0 video output;
Hotline: 0918 642 886
LTC2-A2001NV4 series camera adopts an intelligent lecturer tracking algorithm, which has stable tracking and strong anti-interference ability that can adapt to various classrooms.
Smart Tracking
• Built-in intelligent image algorithm for human detection and lock tracking based on deep learning;
• Intelligent exposure function, avoid the problem of tracking target being too dark in projector and other strong light background;
• Suits all kinds of classrooms with different sizes, shapes and types;
• Smooth tracking performance, free from interference of other moving objects, even if the target turns around;
• Accurate, stable detection and tracking;
• The camera can track horizontally and vertically, always keep the image clear;
1080P HD Video
• Integrated design, up to 1080P60 video resolution;
• Auto zoom performance during tracking;
Rich Interfaces, High Compatibility
• SDI, HDMI, Network, and USB3.0 video output;
• USB with UVC and UAC protocols;
• With remote control, support RS-232 control.
|
Model |
LTC2-A2001NV4 |
|
Tracking Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.14MP |
|
Lens |
20X, f=4.7～94.0mm, F1.6～F3.5 |
|
Digital Zoom |
8X |
|
FOV |
59.5°～ 2.9° |
|
Min. Illumination |
0.5Lux |
|
Shutter Speed |
1/1～1/10,000s |
|
Gain |
Auto/Manual |
|
White Balance |
Auto/Indoor/Outdoor/One Push/Manual/Auto Tracking |
|
AE Control |
Auto/Manual/Shutter Priority/Iris Priority |
|
SNR |
≥50dB |
|
Full View Camera |
|
|
Image Sensor |
1/2.8”CMOS, 2.14MP |
|
White Balance |
Auto |
|
Exposure |
Auto |
|
Focal Length |
Manual focus, 2.4mm |
|
Viewing Angle |
Horizontal: 88°, Vertical: 54° |
|
PTZ |
|
|
Pan |
-170°～+170°, 0.1°～120°/s |
|
Tilt |
-30°～+90°, 0.1°～90°/s |
|
Image Flip |
Support |
|
Preset Number |
64 |
|
Interface |
|
|
HDMI |
1 channel HDMI; Support 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50 |
|
Network |
RJ45 (10M/100M), optional POE |
|
USB |
1 channel USB3.0 |
|
3G-SDI |
1 channel 3G-SDI; support 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50 |
|
Audio Interface |
1 channel LINE IN, 3.5mm audio interface |
|
Local Storage |
Built-in SD card slot |
|
Control Interface |
1 channel RS-232 IN, 1 channel RS-232 OUT |
|
Power |
DC12V |
|
General |
|
|
Power Consumption |
<15W |
|
Control Protocol |
VISCA |
|
Operating Environment |
Temperature: 0°C ~ +40°C; Relative Humidity: 10%RH ~ 90%RH |
|
Storage Environment |
Temperature: -20°C ~ +60°C; Relative Humidity: 10%RH ~ 95%RH |
|
Dimensions(L×W×H) |
243mm×157mm×163mm (W*D*H) |
|
Weight |
1.2kg |
|
Color |
Grey |
