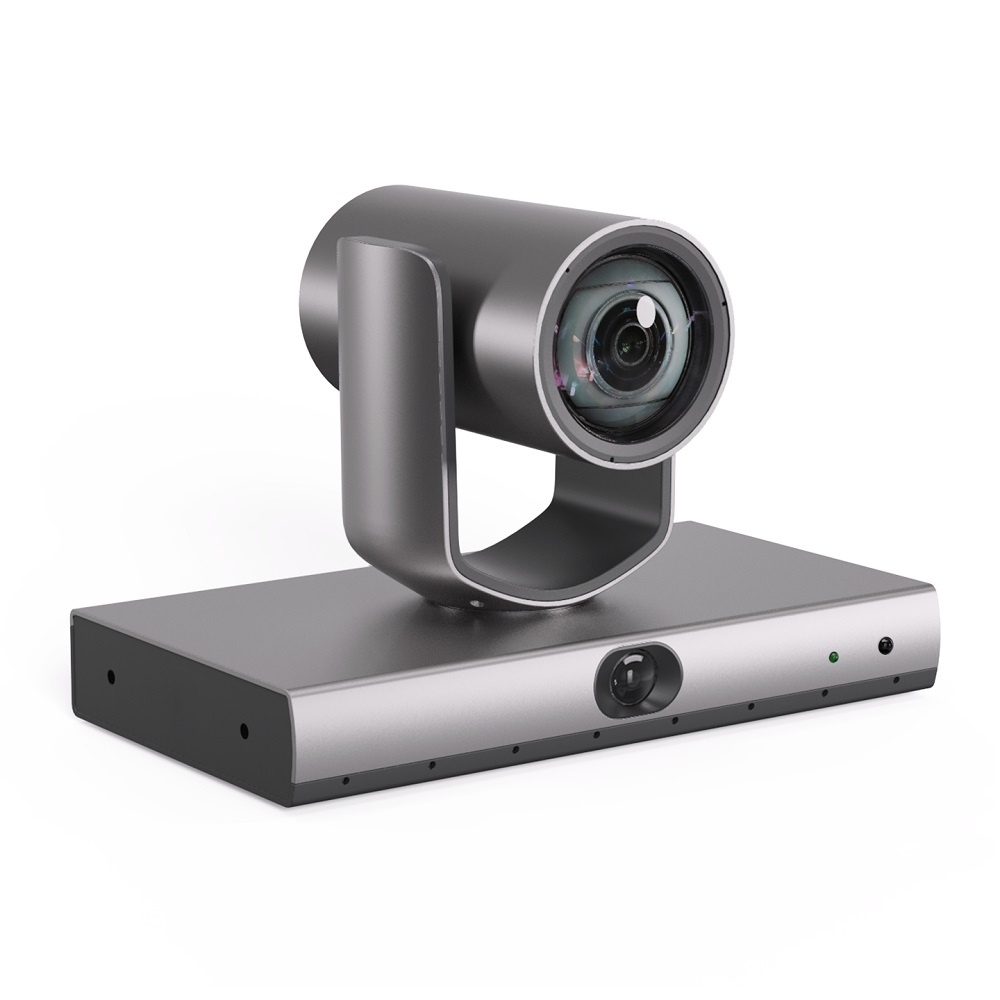

Ismart Multi AI Tracking Camera AMC-G200THV2
Mô tả ngắn
Image Sensor 1/2.8” CMOS, 2.14MP
HFOV: 72.5° ~6.3°
Tracking cams: 12x optical zoom, HFOV up to 72.5°;
Simultaneous outputs over HDMI, USB3.0, 3G-SDI and Ethernet, resolution up to 1080P60;
Hotline: 0918 642 886
Ismart Multi AI Tracking Camera AMC-G200THV2
Features:
- Implemented with audio positioning, body detection and recognition tech, precisely frame speakers, giving best views of speakers and other attendees;
- Board writing recognition based on pose estimation, giving clear view of writing content;
- Track lecturer all around the classroom, even if lecturer walks into student area;
- Innovative dual cam design for tracking views and full views with auto and quick switch;
- Various modes of speaker tracking and auto recognition and closeup shot of board writing;
- No hand operation involved, helping attendees focus on meeting and discussion;
- Designed for medium and large sized meeting rooms, classrooms and halls, covering range up to 8 meters;
- Tracking cams: 12x optical zoom, HFOV up to 72.5°;
- Simultaneous outputs over HDMI, USB3.0, 3G-SDI and Ethernet, resolution up to 1080P60;
- USB 2.0 Host interface for external mic input;
- Compatible with popular conference hardware and cloud platforms such as ZOOM, MS Teams etc.;
- ROHS, CE, FCC certified.
|
Model |
AMC-G200THV2 |
|
Tracking Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.14MP |
|
Focal |
f=4.1mm ~ 49.2mm |
|
Iris |
F1.6 ~ F2.8 |
|
Zoom |
Optical 12X, Digital 16X |
|
HFOV |
72.5° ~ 6.3° |
|
Focus |
Auto, Manual, PTZ Trigger, One Push Trigger |
|
Shutter Speed |
1/50 ~ 1/10,000s |
|
AGC |
Auto, Manual |
|
White Balance |
Auto, One Push, Manual, Auto Tracking, Static Color Temperature |
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority, Bright Priority |
|
Full View Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.14MP |
|
Lens |
1.89mm |
|
HFOV |
110° |
|
White Balance |
Auto |
|
Exposure |
Auto |
|
PTZ |
|
|
Pan |
-130° ~ +130°; 0.2° ~ 100°/s |
|
Tilt |
-30° ~ +90°; 0.2° ~ 90°/s |
|
Preset Number |
64 |
|
Interface |
|
|
Network |
1×RJ45: 10M/100M, support POE; Video output: 1080P30/P25, 720P30/P25, 360P30/P25 Video Format: H.264/H.265 Network Protocol: ONVIF/RTSP/HTTP/TCP/UDP/RTMP/RTP; Audio Compression: AAC; Support 3 channel streams, dual closeup view, one channel full view, one channel switch and four streams |
|
3G-SDI |
1080P60/P50/P30/P25, 720P60/P50 |
|
HDMI |
Support Audio output; 1080P60/P50/P30/P25, 720P60/P50 |
|
USB 2.0 |
Type-A HOST |
|
USB 3.0 |
Type-B, 1. Support UVC1.1 2. UVC Support:
3. UAC Audio Format PCM |
|
Audio |
1 × 3.5mm LINE IN 1 × 3.5mm Ref. LINE IN |
|
Control Interface |
1 × RS-232 IN, 1 × RS485 |
|
Network Interface |
1x10M/100M RJ45 |
|
General |
|
|
Control Protocol |
VISCA |
|
Power |
DC12V; <20W |
|
Operating Temperature |
0°C ~ + 40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension(LxWxH) |
245mmx145mmx164mm |
|
Weight |
≤2kg |
