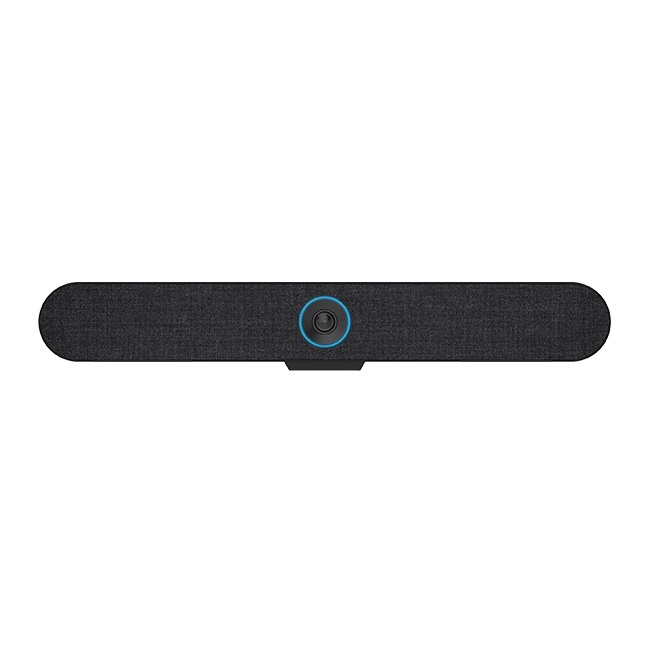

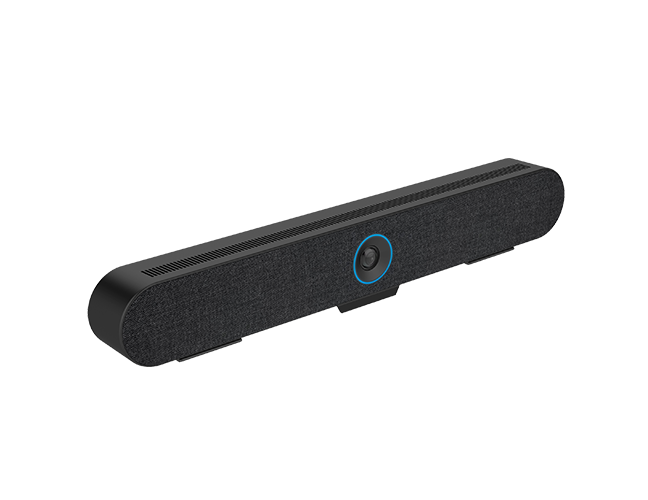

Ismart Auto Framing and Speaker Tracking AMC-G309UV2
Mô tả ngắn
Ismart Auto Framing and Speaker Tracking AMC-G309UV2
4K@30 fps ultra HD video giving superb image;
110° HFOV with no video distortion, full coverage of the meeting room.
Integrates camera, mics, and speaker in one design;
Built-in high-sensitivity mic array with excellent ANC, AEC and AGC, pick-up range up to 5 meters
Hotline: 0918 642 886
AMC-G309UV2 intelligent 4K video soundbar integrates camera, mics, and speakers in one design. It employs iSmart's latest AI algorithm for auto framing and speaker tracking, delivers 4K UHD video for your video conference needs.
Auto Framing & Speaker Tracking
• Support electronic PTZ;
• Precise and smooth auto framing based on deep learning;
• Efficient and precise speaker tracking function, giving a close-up image shot on speaker(s).
4K UHD Video With 110°, Super Wide HFOV
• 4K@30 fps ultra HD video giving superb image;
• 110° HFOV with no video distortion, full coverage of the meeting room.
All-in-one Design With USB3.0
• Integrates camera, mics, and speaker in one design;
• Built-in high-sensitivity mic array with excellent ANC, AEC and AGC, pick-up range up to 5 meters;
• USB3.0, standard UVC/UAC, MJPEG/H.264/ H.265.
|

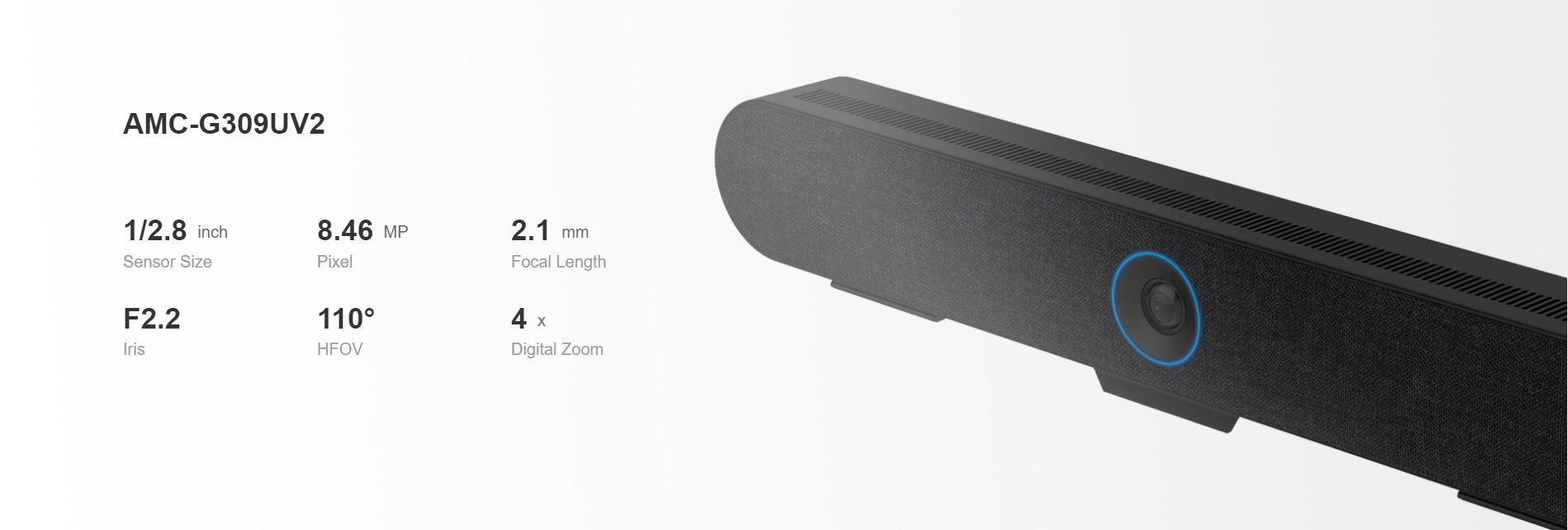

Model |
AMC-G309UV2 |
|
Camera |
|
|
Image Sensor |
1/2.8” 4K CMOS, 8.46MP |
|
IRIS |
F2.2 |
|
Focal Length |
f=2.1mm |
|
Digital Zoom |
8X |
|
FOV |
Horizontal: 110°, Vertical: 74° |
|
Intelligent Function |
Auto framing/speaker tracking |
|
Min Focus Distance |
50cm |
|
Min Illumination |
50Lux |
|
Video Output Format |
4K@30fps |
|
Exposure |
Auto/Manual/Shutter Priority |
|
White Balance |
Auto/Manual/Trigger |
|
Digital Noise Reduction |
2D/3D |
|
Image Flip |
Flip/Mirror |
|
Audio |
|
|
Built-in Mic |
4MIC array |
|
Pick-up Distance |
5meters |
|
Audio Process |
AEC/ANC/AGC |
|
PTZ |
|
|
Pan |
-170°～+170°, 0.1°～120°/s |
|
Tilt |
-30°～+90°, 0.1°～90°/s |
|
Image Flip |
Support |
|
Preset Number |
64 |
|
USB Interface |
|
|
USB |
1xUSB3.0, Type B. Support UVC 1.0, MJPEG/H.264/H.265 |
|
MJPEG |
Video resolution:4K@30/25, 1920x1080@30/25, 1280x720@30/25 |
|
H.264 |
Video resolution:4K@20, 1920x1080@30/25, 1280x720@30/25 |
|
H.265 |
Video resolution:4K@20, 1920x1080@30/25, 1280x720@30/25 |
|
Other |
|
|
Network Interface |
RJ-45, 10/100/1000M |
|
Mic Extension |
Reserved |
|
Remote Control |
Yes |
|
General |
|
|
Power |
DC12V |
|
Power Consumption |
<8W |
|
Working Temperature |
0°C ～ + 40°C |
|
Working Humidity |
10%～ 90% |
|
Storage Temperature |
-20°C ～ +60°C |
|
Dimensions(L×W×H) |
603 mm×74 mm×93 mm (W*D*H) |
|
Net Weight |
1.66kg |
|
Color |
Black |
