Ismart Lecturer Tracking PTZ Camera LTC-G221
Mô tả ngắn

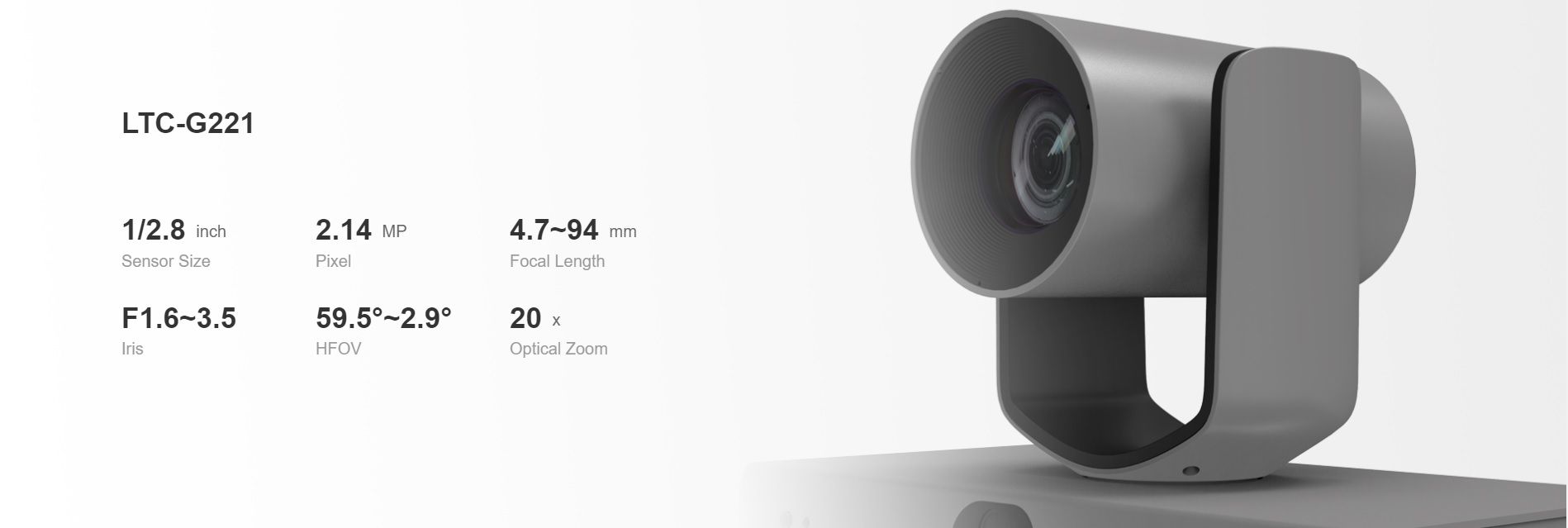

Ismart Lecturer Tracking PTZ Camera LTC-G221
2.14MP, 1/2.8'' CMOS UHD sensor
20X optical zoom for various classrooms
Simultaneous video outputs via SDI, HDMI, IP and USB3.0
Integrated design; dual outputs up to 1080P60 HD resolution
Hotline: 0918 642 886
LTC-G221 supports simultaneous output of 1080P60 close-up images and 1080P60 full-view images.
LTC-G221 dual-cam 1080P Leturer Tracking Camera incorporates an industry-leading AI algorithm to lock & smoothly track lecturer, its deep learning-based board writing detection technology helps tracking when writing is detected.
Features:
- Keep tracking if lecturer turns around or stands still for a while.
- Track lecturer only, instead of other moving object.
- Tilt Motion while tracking.
- Track with lights on /off.
- Not track moving objects on projector.
- 2.14MP, 1/2.8'' CMOS UHD sensor
- 20X optical zoom for various classrooms
- Simultaneous video outputs via SDI, HDMI, IP and USB3.0
- Integrated design; dual outputs up to 1080P60 HD resolution
- Support four streaming and RTMP streaming
- Friendly UI and simple setup
|
Model |
LTC-G221 |
|
Tracking Camera |
|
|
Image Sensor |
1/2.8” 4K CMOS, 2.14MP |
|
IRIS |
F1.6-F3.5 |
|
Focal Lens |
f=4.7mm~94mm |
|
Optical Zoom |
20X |
|
Digital Zoom |
8X |
|
FOV |
59.5° ~ 2.9° |
|
Focusing System |
Auto/Manual |
|
Min Illumination |
0.5Lux |
|
Shutter speed |
1/50s-1/10,000s |
|
Gain |
Auto/Manual |
|
White Balance |
Auto/Manual/One Push/Static Color Temperature |
|
Exposure |
Auto/ Manual/Shutter Priority/Iris Priority/Brightness Priority |
|
S/N |
≥50dB |
|
Menu |
English |
|
Full View Camera |
|
|
Image Sensor |
1/2.8” 4K CMOS, 2.14MP |
|
White Balance |
Auto |
|
Exposure |
Auto |
|
Focal Lens |
2.8mm |
|
Field of View |
Horizontal 94° , Vertical 62° |
|
PTZ |
|
|
Pan Range |
-130°～+130° |
|
Tilt Range |
-30°～+90° |
|
Pan Speed |
0.1°～80°/s |
|
Tilt Speed |
0.1°～60°/s |
|
Preset Number |
64 |
|

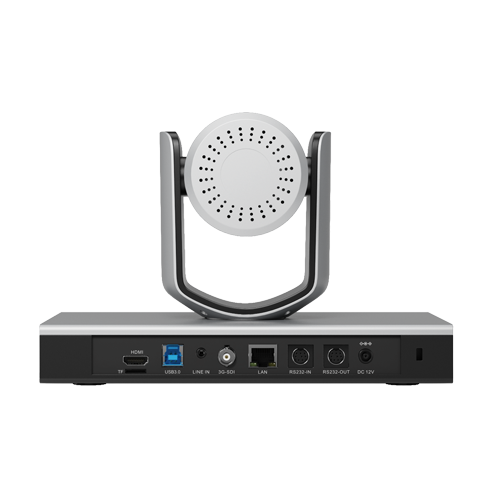

Interface |
|
|
HDMI |
1xHDMI |
|
Network |
1xRJ45, 1x10M/100M RJ45 (POE Supported); |
|
USB |
1xUSB3.0 |
|
3G-SDI |
1x3G-SDI |
|
Audio |
1×LINE IN, 3.5mm |
|
Control Interface |
1x RS-232 IN, 1x RS-232 OUT |
|
TF Card |
Support |
|
DIP Switch |
Rotary DIP switch to define video format |
|
General |
|
|
Control Protocol |
VISCA |
|
Power |
DC 12V, <15W |
|
Working Environment |
Temperature: 0°C ～ + 40°C; Relative Humidity: 10%RH～ 90%RH |
|
Dimensions(L×W×H) |
245 mm×149 mm×164 mm |
|
Net Weight |
1.6kg |
