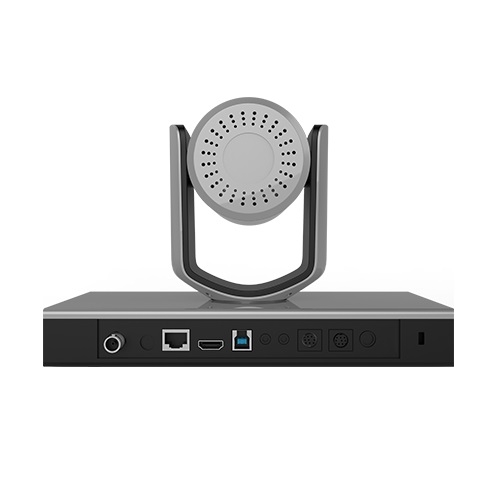

Ismart 4K UHD Lecturer Tracking Camera LTC6-G500
Mô tả ngắn
Ismart 4K UHD Lecturer Tracking Camera LTC6-G500
1/2.8”4K CMOS, 8.46 MP;
4K ultra HD lens, 12x optical zoom, up to 81° FOV;
Hotline: 0918 642 886
TC6-G500 is a 4K UHD tracking camera, its fast autofocus lens combined with smart algorithm can efficiently locate the tracked object, quickly focus, output HD pictures, to improve learning efficiency
4K UHD, 12X Zoom
1/2.8”4K CMOS, 8.46 MP;
4K ultra HD lens, 12x optical zoom, up to 81° FOV;
Smart Algorithm, High Precision PTZ
Built-in the industry-leading AI image algorithm for human body detection and lock tracking, which can realize a wide range of automatic detection and continuous tracking;
Fast, accurate and smooth tracking;
High precision, smooth rotation, quiet PTZ;
Rich Interfaces, High Compatibility
H.264/H.265 video compression, up to 4KP60 video output, and support optional POE;
HDMI2.0 video output, up to 4KP60 video output;
Optional 3G-SDI or HD-BaseT video output;
Support RS- 232 IN/RS- 232OUT control interface and VISCA protocol;
1 channel LINE IN.
|
Model |
LTC6-G500 |
|
Camera |
|
|
Image Sensor |
1/2.8"CMOS, 8.46MP |
|
Lens |
12X; f=3.4mm～40.3mm; F1.8 (Wide)～3.6 (Tele) |
|
FOV |
81°~7.6° |
|
Focus |
Auto/Manual |
|
White Balance |
Auto/Manual |
|
Exposure Control |
Auto/Manual |
|
S/N |
≥50dB |
|
DNR |
2D/3D |
|
BLC |
Support |
|
PTZ |
|
|
Pan Angle |
-130°~+130°; 0.2° ~ 80°/s |
|
Tilt Angle |
-30°~+90°; 0.2° ~ 60°/s |
|
Image Flip |
Support |
|
Preset Number |
64 |
|
Interface |
|
|
HDMI |
1 channel HDMI 2.0; |
|
Network |
RJ45 (10M/100M), optional POE; |
|
USB |
1 channel USB2.0; |
|
3G-SDI (Optional) |
1 channel 3G-SDI; support 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50 |
|
HD-BaseT (Optional) |
1 channel HD- BaseT(optional); support 4KP30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50 |
|
Audio Input |
1 channel LINE IN, 3.5mm audio interface |
|
Control Interface |
1 channel RS-232 IN, 1 channel RS-232 OUT |
|
DIP Switch |
Rotating DIP switch to set video format |
|
Power |
DC12V |
|
General |
|
|
Power Consumption |
<18W |
|
Control Protocol |
VISCA |
|
Operating Environment |
Temperature: 0°C ~ +40°C; Relative Humidity: 10%RH ~ 90%RH |
|
Storage Environment |
Temperature: -20°C ~ +60°C; Relative Humidity: 10%RH ~ 95%RH |
|
Dimensions(L×W×H) |
245mm×146mm×164mm (W*D*H) |
|
Weight |
<2kg |
|
Color |
Grey |
