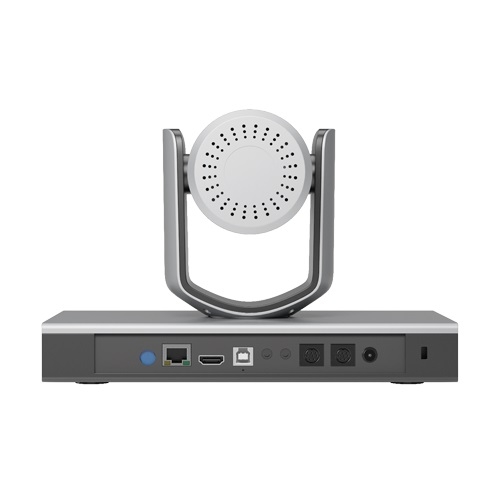

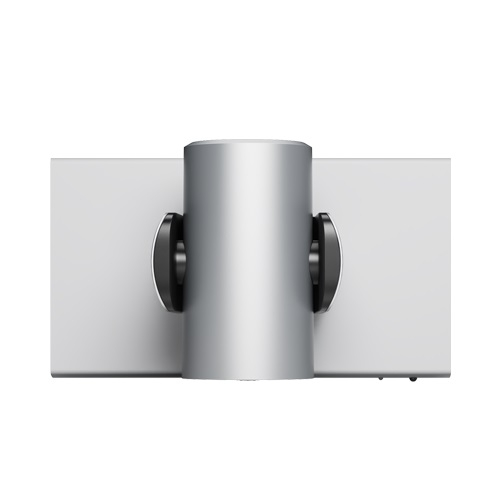

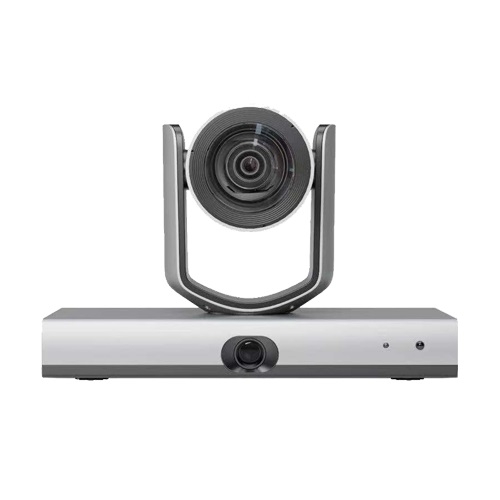

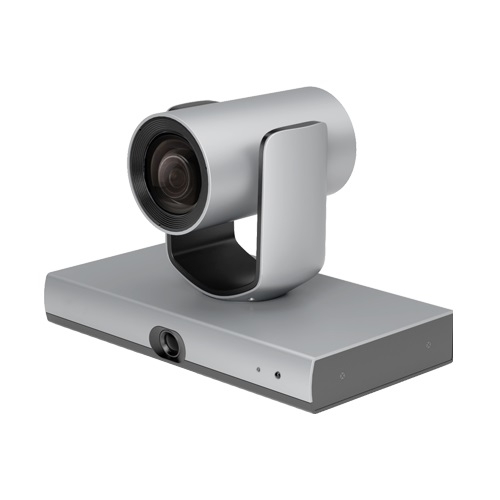

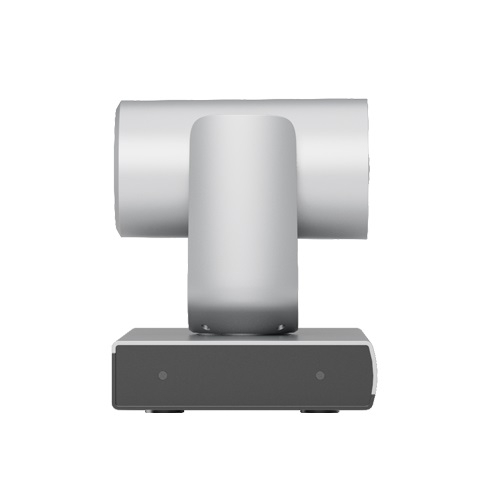

Ismart Lecturer Tracking PTZ Camera LTC-G501
Mô tả ngắn
Dual-cam design, simultaneous 4K UHD outputs of tracking cam and full-view cam;
Tracking cam: 12X optical zoom, HFOV up to 81°, max resolution 4KP60;
Full-view cam: 4K lens, HFOV 94°, no distortion;
Built-in advanced AI algorithm based on deep learning, to ensure stable tracking and precise posture recognition
Hotline: 0918 642 886
Features:
- Dual-cam design, simultaneous 4K UHD outputs of tracking cam and full-view cam;
- Tracking cam: 12X optical zoom, HFOV up to 81°, max resolution 4KP60;
- Full-view cam: 4K lens, HFOV 94°, no distortion;
- Built-in advanced AI algorithm based on deep learning, to ensure stable tracking and precise posture recognition;
- Board writing recognition based on pose estimation, giving clear view of writing content;
- Rich tracking modes such as auto framing, zone tracking, lock-n-track, group tracking;
- Simultaneous outputs over HDMI, USB2.0, Ethernet, support POE;
- Built-in Web UI for easy setting and control.
|
Model |
LTC-G501 |
|
Tracking Camera |
|
|
Image Sensor |
1/2.8'' 4K CMOS, 8.46MP |
|
Lens |
12X optical zoom; f=3.4mm~40.3mm; F1.8 (Wide)~3.6 (Tele) |
|
HFOV |
81°~7.6° |
|
Image |
Auto Focus/Auto Exposure/Auto White Balance |
|
AGC |
Auto/Manual |
|
White Balance |
Auto/Indoor/Outdoor/One Push/Manual/Static |
|
AE Control |
Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
|
Shutter Speed |
1/50~1/10,000s |
|
SNR |
≥50dB |
|
Full View Camera |
|
|
Image Sensor |
1/2.8''4K CMOS, 8.46MP |
|
White Balance |
Auto |
|
Exposure |
Auto |
|
Lens |
2.8mm |
|
Field of View |
Horizontal: 94°, Vertical: 62° |
|
PTZ |
|
|
Pan |
-130°~+130°; 0.2° ~ 80°/s |
|
Tilt |
-30°~+90°; 0.2° ~ 60°/s |
|
Preset Number |
64 |
|
Interface |
|
|
HDMI 2.0 |
4KP60/P50/P30/P25, 1080P60/P50/P30/P25，720P60/P50 |
|
Network |
1 × RJ-45:10M/100M/1000M self-adaptation ethernet port, support POE; Video Format:H.264/H.265； Close-up: 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25 Full view: 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25 |
|
USB 2.0 |
|
|
Audio Interface |
1 × LINE IN, 3.5mm |
|
DIP Switch |
Rotary DIP switch to define video format |
|
Control Interface |
1 ×RS232 IN, 1 ×RS232 OUT |
|
General |
|
|
Power |
DC12V; <18W |
|
Control Protocol |
VISCA |
|
Operating Environment |
Temperature: 0°C ~ +40°C; Relative Humidity: 10%RH ~ 90%RH |
|
Storage Environment |
Temperature: -20°C ~ +60°C; Relative Humidity: 10%RH ~ 95%RH |
|
Dimensions(L×W×H) |
245mm×145mm×165mm |
|
Weight |
1.8kg |
