Bộ điều khiển VP–772
Mô tả ngắn
Remote Panel for VP–772
T–Bar for Precise Switching
Controls up to 4 VP–772s
2 Goose Neck Lamps
Hotline: 0918 642 886

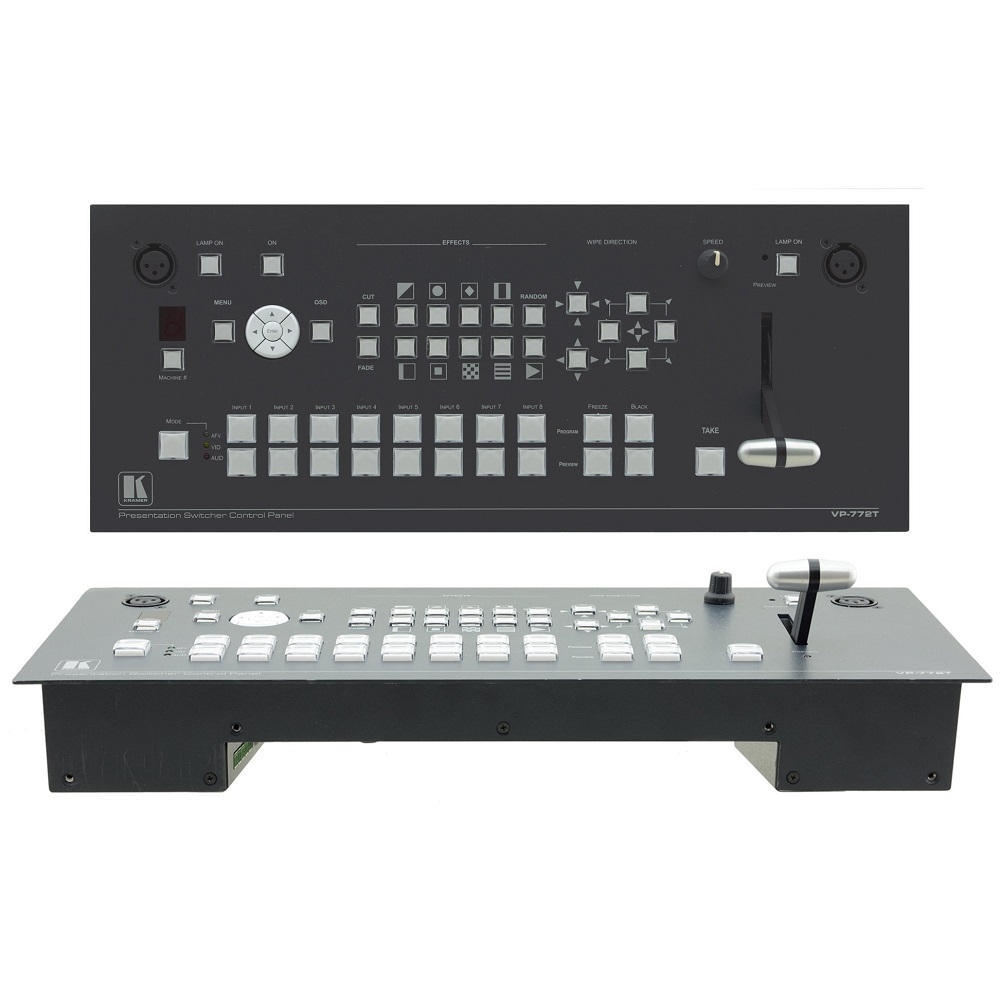

VP−772T is a dedicated remote control console for the VP−772 dual scaler seamless switcher. It is designed for use at live production events that require remote operation of the seamless switcher from a T−bar for precise switching and transition control.
- All VP–772 Functions Replicated — All the front panel controls of the VP–772 Seamless Switcher are replicated on the VP–772T.
- Convenient Switching Control — Via the rugged T–bar or a Take button, with selectable transition speed control.
- Menu Button — Control the VP–772 via an on–screen display on the preview output.
- Wipe Direction Control — Via front panel buttons.
- Control Multiple Units — Up to 4 VP–772 Seamless Switchers can be controlled from one VP–772T.
- 2 Gooseneck Lamps — For low light environments.
- Control Options — 4 RS–485 ports to control up to 4 VP–772 units, and 1 RS–232 port for controlling the console.
- Ethernet Port — For configuration and firmware upgrade.
- Power Supply — 12V DC.
- Angled Faceplate — Enables free–standing use on a table.
PORTS
4 RS−485: On 3–pin terminal block connectors
1 RS-232: On a 3–pin terminal block connector for device control
1 Ethernet: On an RJ–45 connector
USER INTERFACE
Controls: Front panel buttons, T–bar, and RS–232
POWER
Source: 12V DC
ACCESSORIES
Included: 2 gooseneck lamps, power adapter, rack ears, table top brackets
PRODUCT DIMENSION
43.60cm x 17.70cm x 14.33cm (17.17" x 6.97" x 5.64" ) W, D, H
PRODUCT WEIGHT
1.6kg (3.6lbs) approx.
