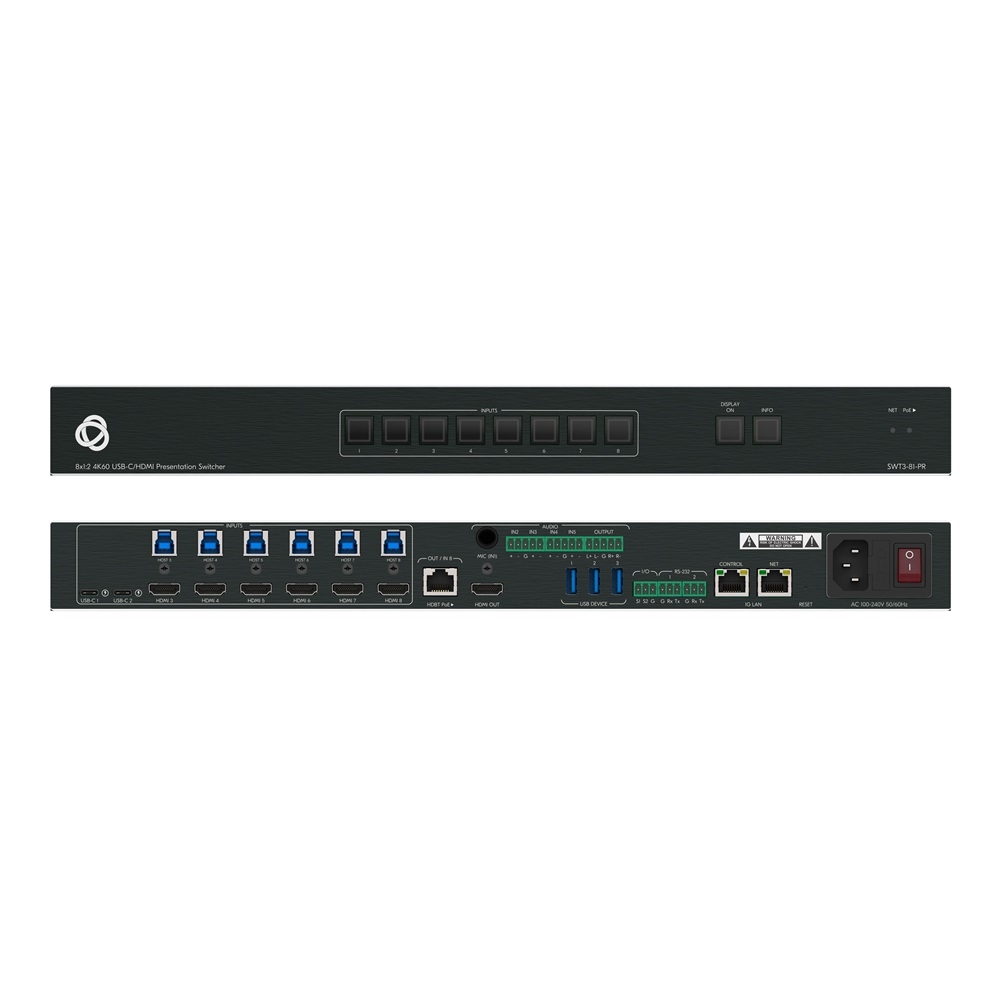

Bộ trình chiếu USB-C HDMI SWT3-81-PR

Bộ trình chiếu USB-C HDMI SWT3-81-PR

Mô tả ngắn

Kramer SWT3-81-PR 8x1:2 4K60 USB–C/HDMI Presentation Switcher
Fast <1sec switching with Multi–view
Dual–screen USB–C sharing
Coupled AV+USB routing with flexible in/out HDBT 3.0 port
AEC DSP & mixer with analog & digital ports
Secured remote control and management

liên hệ mua hàng
Hotline: 0918 642 886

Kramer SWT3−81−PR is a high−performance video processing and fast−switching scaling switcher with coupled AV + USB routing. It has eight USB−C and HDMI/USB inputs, one interchangeable HDBaseT 3.0 input or output port, and mirrored HDMI output. The unit supports both local and remote content sharing and multi−view presentation capability. The switcher has integrated audio DSP and a rich set of analog and digital interfaces, for high−quality audio−visual experience during hybrid sessions in meeting spaces and halls.



- Premium Presentation Switcher — High–resolution scaling switcher with AV + USB routing

- Fast <1sec AV Routing — Clean and instantaneous routing between switcher inputs and outputs, with smooth and uninterrupted transitions

- Dual–screen (MST) USB–C signal routing from one of the USB–C presenters to a local and remote display

- Advanced video processing for multi–view presentations including side–by–side and picture–in–picture effects

- High–Performance Scaling Experience — Built–in ProcAmp high–resolution scaling technology for optimal up or down image scaling

- Enhanced Audio capabilities — Integrated echo cancelling and audio enhancement DSP for clear sound distribution to space deployed speakers. Both analog and digital audio interfaces with audio embedding and de–embedding capabilities with flexible and easily managed audio routing.

- Built–in IP–based control capabilities, enterprise–grade IT–networking and security, and optional enterprise site management.

- BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source and share content of either one or dual screens. The BYOD will enjoy AV display access, USB device access, ethernet connectivity and charging.

- Hybrid–meeting Collaborative Sessions — The switch enables deployment of either BYOD or UCC (MTR, Teams Room or similar) in the same meeting space. The display system and the USB devices may be hosted by either a BYOD device or a UCC with flexibility to deploy the UCC on any side of the HDBaseT link.

- High Performance Standard Extension — Professional HDBaseT 3.0 extension, for multi–signals distribution over extended–reach twisted–pair copper infrastructures

- Intelligent IP based switcher management. — Device may be controlled using a WEB GUI or by a controller utilizing Kramer’s P3K commands.

- Standard Enterprise–Grade Secured Operation — Standard IT–grade authentication for secured IT LAN connectivity, and secured web–UI browsing and communication, with OWASP–10 (Open Web Application Security Project) standard penetration protection certification, ensure secured remote end–user communication, customer operation, and switcher management.

- Easy and Elegant Installation — Highly integrated and compact device, with single cable connectivity for both HDBaseT signals and PoE power distribution to paired endpoint, substantially saves on space and solution wiring, mounting and installation, integration, and other associated deployment costs.



Inputs

  • 2 Full-featured USB-C: On USB type–C female connectors

  • 6 HDMI: On HDMI female connectors

  • 1 Analog Mic: On a 6.3mm jack connector

  • 4 Analog Mic or 4 Balanced Mono Audio or 2 Balanced Stereo Audio: On 3–pin terminal block connectors



Outputs

  • 1 HDMI: On an HDMI female connector

  • 1 Analog Audio Balanced Stereo Line Level: On a 5–pin terminal block connector



Interchangeable Inputs/Outputs

  • 1 HDBT: On an RJ–45 female connector



Ports

  • 1 1000BaseT Ethernet: On an RJ–45 female connector for LAN connection & extension

  • 1 100BaseT Ethernet: On an RJ–45 female connectors for LAN connection & management

  • 6 USB 3.2 Host: On USB type–B female connectors

  • 3 USB 3.2 Device: On USB type–A female connectors

  • 2 RS-232: On 3–pin terminal block connectors

  • 2 GPIO: On 2–pin terminal block connectors



Video

  • Max Bandwidth: : 18Gbps (6Gbps per graphic channel)

  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • Max Channel Resolution for Dual-channel Extension over HDBT: 4K@30Hz 4:4:4 24bpp resolution

  • Content Protection: HDCP 2.3

  • Compliance: HDMI 2.0b



Video Performance

  • Scaling: Up, down or cross–scaling

  • Minimum Input Scaled Resolution: 480p

  • Max Output Scaled Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • Max Switching Time: 1sec

  • Max Frames Latency: 2



Multi View

  • Windows Layouts: PiP, PoP, Quad, Stacked, Side–by–side, Split

  • Max Layout Inputs: 4



USB-C

  • AV Compliance: MST DP Alt Mode

  • Max Input AV Streams: 2

  • USB Compliance: 3.2 Gen 2

  • Max USB 3.2 Data Rate: 10Gbps

  • Charging Compliance: PD 3.0

  • Max Charging Power Per Port: 60W



USB

  • Max USB 3.2 Data Rate: 10Gbps

  • Integrated USB Hubs (layers): 1

  • Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1



Extension Line

  • Direction: Transmit or receive

  • Direction: Note: On interchangeable HDBT port only

  • Reach: Up to 100m (330ft)

  • Reach: Note: When using Kramer HDBaseT cables

  • PoE+ Providing: 30W per 802.3at Type 2

  • Standards Compliance: HDBaseT 3.0



Extended USB

  • Max USB 2.0 Data Rate: 480Mbps

  • Max Transmitted Data Bandwidth: 300Mbps

  • Standards Compliance: USB 2.0 and 1.1



Extended Ethernet

  • Max Data Rate: 1 Gbps



Extended RS-232

  • Baud Rate: 1200 to 115200



Analog Audio Input

  • Impedance: Balanced: 20kΩ / Unbalanced: 10kΩ

  • Nominal Level: Balanced: +4dBu / Unbalanced: — 10dBV

  • Nominal Level: Note: Adjustable via input gain

  • Max Level: : >+21dBu

  • Max Level: : Note: At rated THD+N

  • CMRR: >70dB typical

  • Input Gain Adjustment: –20dB to +10dB, in 0.5dB steps



Microphone Input

  • Signal Type: Balanced: Condenser (with phantom power) / Unbalanced: Dynamic

  • Impedance: Balanced: 20kΩ / Unbalanced: 10kΩ

  • Nominal Level: –60dBV

  • Nominal Level: Note: Adjustable via input gain

  • Max Level: Condenser: — 18dBu/ Dynamic: — 36dBV

  • Equivalent Input Noise: <–120dBV (1.0 µVrms)

  • Equivalent Input Noise: Note: At +40dB input gain

  • CMRR: >70dB typical

  • Input Gain Adjustment: –30dB to +24dB, in 0.5dB steps

  • Input Gain Adjustment: Note: Adjustable per input

  • DC Phantom Power: +48 VDC



Analog Audio Output

  • Impedance: Balanced: 100Ω / Unbalanced: 50Ω

  • Gain: Balanced: 0dB / Unbalanced: — 6dB

  • Gain Error: ±0.1dB

  • Gain Error: Note: Channel to channel

  • Max Level: Balanced: +21dBu / Unbalanced: +15dBu

  • Output Volume Range: –90dB to +10dB, in 0.5dB steps

  • THD + Noise: <0.01%, 20Hz to 20kHz

  • THD + Noise: Note: At maximum level

  • Frequency Response: 20Hz to 20kHz, ±0.1 dB

  • Dynamic Range: 102dB typical

  • Dynamic Range: Note: 20Hz to 20kHz unweighted

  • S/N Ratio: >90dB, 20Hz to 20kHz

  • S/N Ratio: Note: At maximum balanced output (unweighted)

  • Crosstalk: ≤–90dB @ 20Hz to 20kHz

  • Crosstalk: Note: Fully loaded



Security

  • Web-UI Communication: HTTPS

  • User Access: Multiple roles and credentials

  • IT LAN Authentication: 802.1x

  • Penetration Protection Certification: OWASP–10



Power

  • Source: 85–240V AC

  • Max Consumption: 188W

  • Max Power Providing Per HDMI Port: 2.5W (5V@0.5A)

  • Max PoE Providing Power Per HDBT Port: 30W

  • HDBT PoE Providing Compliance: 802.3at, Type 2

  • Max USB-C Charging Power Per USB-C Port: 60W

  • USB-C Charging Compliance: PD 3.0

  • Max USB Device Per Port Charging Power: 5W (5V@1A)



Environmental Conditions

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



Regulatory Compliance (Standards Compliance)

  • Safety: CE, FCC, UL

  • Environmental: RoHs, WEEE



Enclosure

  • Size: 19” 1U

  • Type: Aluminum

  • Cooling: Fan Ventilation

  • Max Fan Noise: 40dBA



General

  • Net Dimensions (W, D, H): 43.2cm x 30cm x 4.35cm (17" x 11.8" x 1.71")

  • Shipping Dimensions (W, D, H): 52.5cm x 33cm x 10.7 cm (21" x 13" x 4.2")

  • Net Weight: 2.356 kg (2.83lbs)

  • Shipping Weight: 3.3 kg (7.26lbs)



Accessories

  • Included: Power cords, 1 multi–signal USB–C cable (1m)



Product Dimensions

  • 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H



Product Weight

  • 2.9kg (6.4lbs) approx.
