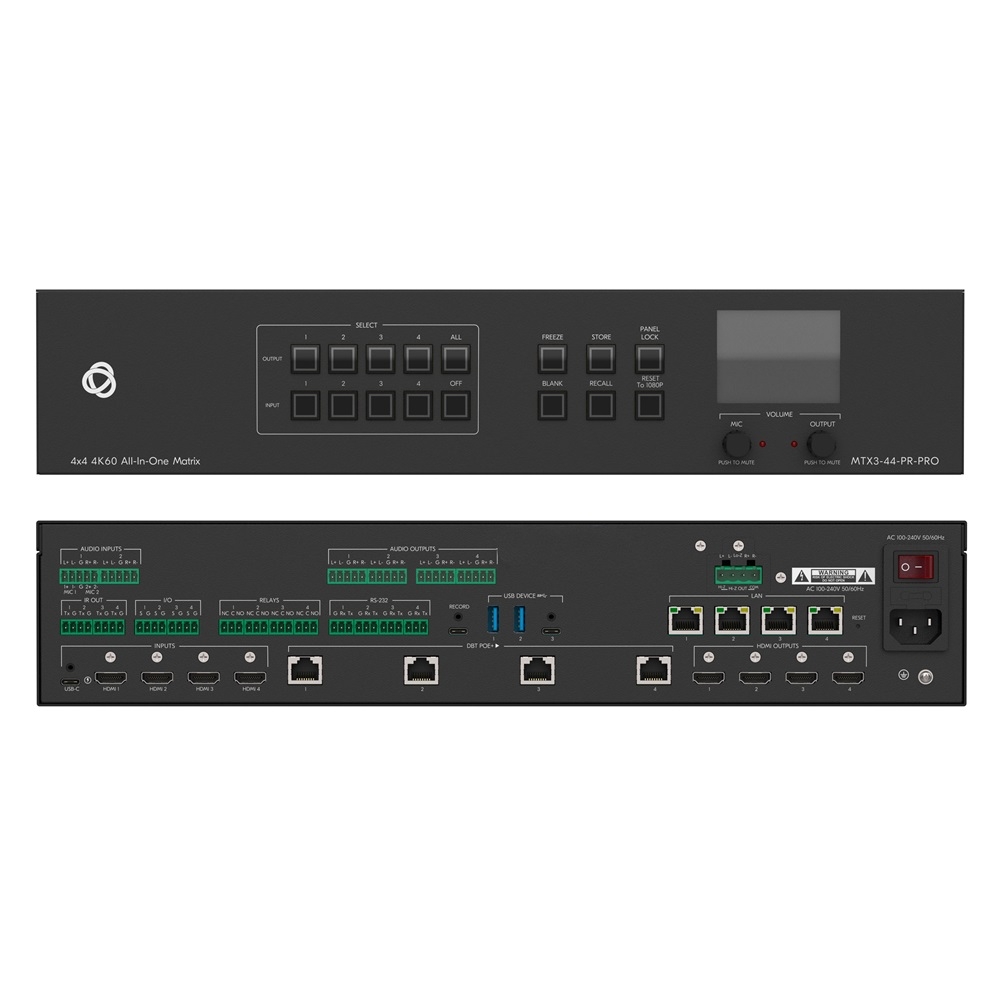

Bộ trình chiếu hình ảnh MTX3-44-PR-PRO

Bộ trình chiếu hình ảnh MTX3-44-PR-PRO

Mô tả ngắn

Kramer MTX3-44-PR-PRO 4x4 4K60 All-In-One Matrix
Fast <1sec switching with Multi–view & Video–wall
Dual–screen USB–C sharing
Simple AV+USB routing with flexible in/out HDBT 3.0 ports
AEC DSP & mixer with analog, digital, power amplifier & Dante ports
H264/5 recording
Secured remote control and management

liên hệ mua hàng
Hotline: 0918 642 886

The MTX3-44-PR-PRO is a high−performance video processing and fast, seamless switching scaling matrix, with simple AV + USB routing of four USB−C, HDMI, four interchangeable HDBaseT 3.0 input or output ports, and four HDMI outputs, for local and remote content sharing and multi−view presentations. The matrix has integrated audio DSP and a rich set of analog and digital interfaces, audio and AV streaming, and multiple USB device ports, for high−quality audio−visual experience during hybrid sessions in mid−size and large spaces.



- Premium All–in–one Matrix — High–resolution scaling matrix with multi–signal routing, with flexible dual–screen USB–C, dual role extension links, and advanced video processing for multi–view and video–wall presentations. The rich set of analog and Dante audio interfaces is mixed and processed by the integrated DSP for clear sound distribution to room deployed speakers. Built–in IP–based control capabilities, and AV streaming for content distribution and recording with enterprise–grade IT–networking and security, with optional enterprise site management. Integration of all within a single compact element, positions the matrix as a premium solution cornerstone, delivering the highest quality of deployment and service experience to system integrators and IT managers, and premium operation and audio–visual collaboration experience to end–users during online and hybrid meeting sessions.

- Fast, seamless AV Routing — Clean input switching, with smooth and uninterrupted video transitions, greatly enhancing end–users’ presentation experience.

- Hybrid–meeting Collaborative Sessions — Controllable coupled routing of AV and USB host inputs, either locally or remotely connected, for concurrent connection with local and remote AV outputs and room USB devices.

- BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source and share content of either one or dual screens, while providing the connected device with USB and Ethernet connection, and (if PD–2.0–capable) up to 60 watts of power, via a single USB–C cable connection only. Convenient air–casting of any BYOD portable via matrix integrated wireless connectivity and popular content sharing applications, further increasing the ease of any BYOD connectivity by guests and end–users.

- Powerful Multi–view and Video–wall Matrix — High–resolution video processing matrix, for flexible matrix–integrated multi–view and video–wall content presentations. Simultaneous multi–content sharing via multi–view presentation layouts, with window content from different inputs on multiple matrix local and remote outputs and mirroring on associated displays. Configurable presets drive end–user control simplicity and convenient presentation views for session content sharing needs.

- High–Performance Scaling Experience — Built–in high–resolution scaling technology for optimal up or down image scaling and video processing, delivering an exceptional end–user presentation experience.

- High Performance Standard Extension — Professional HDBaseT extension, for multi–signals distribution over extended–reach twisted–pair copper infrastructures, for remote input sources connection and routed content output on remote displays. Standard long–distance conveyance of multiple high–resolution audio–visual and USB, high data–rate Ethernet, control, and power signals compatible with any market–available HDBaseT–compliant extension products. For optimum extension reach and performance, use recommended Kramer cables.

- Demand–adaptable Extension Links — Dual–role HDBaseT links are flexibly set as either input (receive–side) or output (transmit–side), independently per each link, to gain valuable adaptability to customer and space solution distribution needs.

- Open Standard Streaming and Recording — Sessions content sharing between enterprise worldwide sites and branches, and their recording in on–prem or cloud–based content management servers, via popular H264/5 streaming open standard over and IT Lan and WAN networks.

- Audio Matrix Optimized for Hybrid–sessions — Simplifying significantly audio solution deployment with flexible analog, power–amplified, digital, and IP–streamed connectivity to various space–deployed microphones and speakers, and with audio signal extraction from and insertion to any matrix–traversing routable AV signal. Integrated studio–grade and powerful DSP (Digital Signal Processor) audio system with (AEC) Acoustic Echo Cancellation capabilities, professionally and simultaneously convert, mix, and process all the audio input and output signals, to ensure echo–free, noise–free, and crystal–clear sound distribution within and beyond solution–deployed space. Easily controlled, routed, and managed via snapshot presets and intuitive user–interface. The integrated sound system greatly enhances the sound quality of experience of local and online end–user participants collaborating in large meeting spaces.

- Intelligent Solution and Space Control — Intuitively programmed powerful Kramer Control controller, matrix multi–service configurable presets, and integrated intelligent IP–driven matrix controllability of its connected devices and space deployed peripherals. Substantially reduces deployment and operation complexity and costs and increases the simplicity of space and sessions control for end–users.

- Standard Enterprise–Grade Secured Operation — Standard IT–grade authentication for secured IT LAN connectivity, and secured web–UI browsing and communication, with OWASP–10 (Open Web Application Security Project) penetration protection certification, ensuring secured remote end–user communication, customer operation, and matrix management.

- Comprehensive Management — Local panel buttons operation, remote and secured management via integrated user–friendly web–UI server, and remote via IP–driven API control and management communication, for flexible service options and ensure lasting, field proven deployment.

- Easy and Elegant Installation — All–in–one integrated and compact device, with single cable connectivity for both HDBaseT signals and PoE power distribution to paired endpoints. Substantially saves on space and solution wiring, mounting and installation, integration, and other deployment costs.

Inputs

  • 1 Full-featured USB-C: On USB type–C female connector

  • 4 HDMI: On HDMI female connectors

  • 1 Air-cast Wi-Fi: On a 2xRF antenna female connectors

  • 2 Analog Mic or 1 Balanced Stereo Audio: On 3–pin terminal block connectors

  • 1 Analog Balanced Stereo Audio: On 5–pin terminal block connector

  • 8 Dante Streaming Channels: On RJ–45 female LAN connectors



Outputs

  • 4 HDMI: On HDMI female connectors

  • 1 H.264/5 Encoder: On a RJ–45 female LAN connector for recording

  • 4 Analog Audio Balanced Stereo Line Level: On 5–pin terminal block connectors

  • 8 Dante Streaming Channels: On RJ–45 female LAN connectors

  • 1 Power Amplifier Audio Stereo Line: On a 4–pin large terminal block connector

  • 1 Power Amplifier Audio Stereo Line: Note: On MTX3–44–PR–PRO model only

  • 4 IR: On 2–pin terminal block connectors



Interchangeable Inputs/Outputs

  • 4 HDBT: On RJ–45 female connectors



Ports

  • 3 1000BaseT Ethernet: On RJ–45 female connectors for LAN connection & extension

  • 1 100BaseT Ethernet: On a RJ–45 female connector for LAN connection & management

  • 2 USB 3.2 Device: On USB type–A female connectors

  • 1 USB 3.2 Device: On a USB type–C female connector

  • 1 USB 2.0 Device: On a USB type–C female connector for monitoring & recording

  • 4 RS-232: On 3–pin terminal block connectors

  • 4 SPDT Relay: On 3–pin terminal block connectors

  • 4 GPIO: On 2–pin terminal block connectors



Video

  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)

  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • Content Protection: HDCP 2.3

  • Compliance: HDMI 2.0b



Video Performance

  • Scaling: Up, down or cross–scaling

  • Minimum Input Scaled Resolution: 480p

  • Max Output Scaled Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • 1sec: Max Switching Time

  • Max Frames Latency: 2



Multi View

  • Windows Layouts: PiP, Side–by–side, Split

  • Inputs per Layout: 2

  • Max Different Layouts: 2



Video Wall

  • Output Wall Layout: 2x2

  • Max Different Output Layouts: 1



USB-C

  • AV Compliance: MST DP 1.4a Alt Mode

  • Max AV Resolution: 4K60Hz 4:4:4 24bpp

  • Max Input AV Streams: 2

  • USB Compliance: 3.2 Gen 2

  • Max USB 3.2 Data Rate: 5Gbps

  • Charging Compliance: PD 3.0

  • Max Charging Power: 60W



USB

  • Max USB 3.1 Data Rate: 10Gbps

  • Integrated USB Hubs (layers): 1

  • USB Devices Groups: 1

  • Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1



Extension Line

  • Direction: Transmit or receive (per port)

  • Reach: Up to 100m (330ft)

  • Reach: Note: When using Kramer HDBaseT cables

  • PoE+ Providing: 30W per 802.3at Type 2

  • Standards Compliance: HDBaseT 3.0



Extended USB

  • Max USB 2.0 Data Rate: 480Mbps

  • Max Transmitted Data Bandwidth: 300Mbps

  • Standards Compliance: USB 2.0 and 1.1



Extended Ethernet

  • Max Data Rate: 1 Gbps



Extended RS-232

  • Baud Rate: 1200 to 115200



Network Streamed Video

  • Max Resolution: 4K@60Hz 4:2:0 resolution

  • Max Latency: 130msec

  • Standards Compliance: H.264, H.265



Analog Audio Input

  • Impedance: Balanced: 20kΩ

  • Impedance: Unbalanced: 10kΩ

  • Nominal Level: Balanced: +4dBu

  • Nominal Level: Unbalanced: — 10dBV

  • Nominal Level: Note: Adjustable via input gain

  • Max Level: >+21dBu

  • Max Level: Note: At rated THD+N

  • CMRR: >70dB typical

  • Input Gain Adjustment: –20dB to +10dB, in 0.5dB steps



Microphone Input

  • Signal Type: Balanced: Condenser (With phantom power)

  • Signal Type: Unbalanced: Dynamic

  • Impedance: Balanced: 20kΩ

  • Impedance: Unbalanced: 10kΩ

  • Nominal Level: –60dBV

  • Nominal Level: Note: Adjustable via input gain

  • Max Level: Condenser: — 18dBu

  • Max Level: Dynamic: — 36dBV

  • Equivalent Input Noise: <–120dBV (1.0 µVrms)

  • Equivalent Input Noise: Note: At +40dB input gain

  • CMRR: >70dB typical

  • Input Gain Adjustment: –30dB to +24dB, in 0.5dB steps

  • Input Gain Adjustment: Note: Adjustable per input

  • DC Phantom Power: +48 VDC



Analog Audio Output

  • Impedance: Balanced: 100Ω

  • Impedance: Unbalanced: 50Ω

  • Gain: Balanced: 0dB

  • Gain: Unbalanced: — 6dB

  • Gain Error: ±0.1dB

  • Gain Error: Note: Channel to channel

  • Max Level: Balanced: +21dBu

  • Max Level: Unbalanced: +15dBu

  • Output Volume Range: –90dB to +10dB, in 0.1dB steps

  • THD + Noise : <0.01%, 20Hz to 20kHz

  • THD + Noise : Note: At maximum level

  • Frequency Response: : 20Hz to 20kHz, ±0.1 dB

  • Dynamic Range: 102dB typical

  • Dynamic Range: Note: 20Hz to 20kHz unweighted

  • S/N Ratio: >90dB, 20Hz to 20kHz

  • S/N Ratio: Note: At maximum balanced output (unweighted)

  • Crosstalk: ≤–90dB @ 20Hz to 20kHz

  • Crosstalk: Note: Fully loaded



Power Amplified Audio

  • Number of Amplifiers: 1x 240W

  • Amplifier Type: Class D

  • Lo-Z Stereo Output Impedance: ≥4Ω

  • Hi-Z Mono Output Voltage: 70V or 100V

  • Port Output Power: Lo–Z: 2x120W @ 4Ω

  • Port Output Power: Hi–Z: 1x240W @70V or 100V

  • Max Voltage Gain: 26dB SE / 32dB BTL

  • Dynamic Range: 119dB

  • Frequency Response: 20Hz to 20kHz

  • THD+N: ≥0.008%, 20Hz to 20kHz



Network Streamed Audio

  • Stream Compliance: Dante or AES67

  • Dante Sample Rates: 44.1 ,48 (default), 88.2, 96kHz

  • AES67 Sample Rate: 48kHz (default), 96kHz



Security

  • Web-UI Communication: HTTPS

  • User Access: Multiple roles and credentials

  • IT LAN Authentication: 802.1x

  • Penetration Protection Certification: OWASP–10



Power

  • Source: 85–240V AC

  • Max Consumption: 578W

  • Max Power Providing Per HDMI Port: 2.5W (5V@0.5A)

  • Max PoE Providing Power Per HDBT Port: 30W

  • HDBT PoE Providing Compliance: 802.3at, Type 2

  • Max USB-C Charging Power Per USB-C Port: 60W

  • USB-C Charging Compliance: PD 3.0

  • Max USB Device Per Port Charging Power: 5W (5V@1A)



Environmental Conditions

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



Regulatory Compliance (Standards Compliance)

  • Safety: CE, FCC, UL

  • Environmental: RoHs, WEEE



Enclosure

  • Size: 19” 2U

  • Type: Aluminum

  • Cooling: Fan Ventilation

  • Max Fan Noise: 40dBA



General

  • Net Dimensions (W, D, H): 44cm x 38cm x 9cm

  • Net Dimensions (W, D, H): (17.4" x 15" x 3.6")



Accessories

  • Included: Power cords, 1 multi–signal USB–C cable (1m), 1 coax cable (2m), 2U bracket set



Product Dimensions

  • 19" x 9.29 x 2U (43.6cm x 23.60cm x 8.80cm) W, D, H
