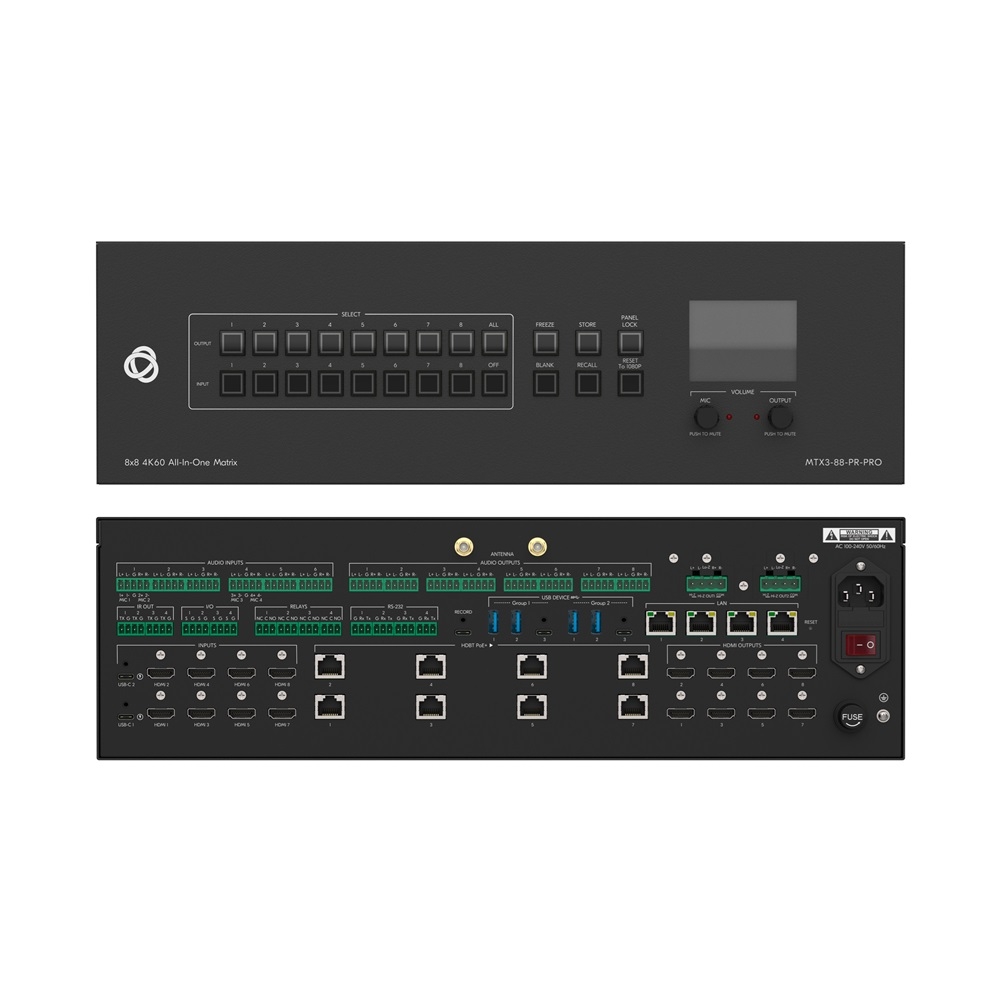

Bộ trình chiếu All in one 8x8 4K60 MTX3-88-PR-PRO

Bộ trình chiếu All in one 8x8 4K60 MTX3-88-PR-PRO

Mô tả ngắn

Kramer MTX3-88-PR-PRO 8x8 4K60 All in one Hybrid Presentation Matrix
AV + USB presentation matrix
Unmatched flexibility with 8 bi–direction HDBT 3.0 ports
2 USB–C ports for presenter use, supporting dual–stream extended desktop
Clean and fast switching between video sources
Advanced video processing including scaling, dual video wall and multi view options
Extensive splash–screen support, built–in video test patterns and video overlay features
Network output streamer/encoder (H.264/5) and wireless presenter input
Feature–rich audio function–set, including powerful DSP, dual–zone amplifier, Dante and more
Secure (802.1X) IP remote management

liên hệ mua hàng
Hotline: 0918 642 886

Kramer MTX3−88−PR−PRO is a high−performance video processing and fast−switching scaling matrix, with independent audio−visual (AV) and USB routing. The matrix has unmatched flexibility with USB−C, HDMI, HDBaseT 3.0 ports, air−casting inputs and network stream output.
The unit is enhanced with audio capabilities including an integrated DSP, integrated dual−zone power amplifier, DANTE and USB audio routing.
The flexibility and processing power of the MTX3−88−PR−PRO makes it a perfect system for numerous deployment scenarios.



- Premium All–in–one Matrix — High–resolution scaling matrix with multi–signal routing of wired and wireless user interfaces.

- Dual–screen USB–C routing capability allowing to connect any Alt–mode DP capable laptop with an extended desktop to be displayed on any selected pair of outputs.

- Eight HDBaseT 3.0 extension ports with PoE remote device powering. Each HDBaseT 3.0 port has configurable direction (input or output) and can extend multi–signals over twisted–pair copper infrastructures for un–matched system flexibility.

- Advance video processing capabilities with several Multiview presentation layouts and two independent video wall presentations.

- Rich set of audio interface options including analog (line, microphone and speaker), Dante and USB audio devices.

- A sophisticated audio DSP configured by an intuitive graphic dash–board style user interface. The audio DSP allows mixing, condensing, expanding, noise filtering and echo cancelling to ensure echo–free, noise–free, and crystal–clear sound distribution.

- Fast <1sec AV Routing — Clean and instantaneous routing between matrix inputs and outputs, with smooth and uninterrupted transition between presented content on local and remote displays.

- Hybrid–meeting Collaborative Sessions — Controllable multi–signals routing of both AV and USB host inputs. AV and USB routing may be performed independently or in USB–follow–AV mode.

- Six local USB device ports divisible into two groups for enhanced host — device USB routing flexibility.

- 60W charging for USB–C connected devices.

- High–Performance Scaling Experience — Built–in ProcAmp & high–resolution scaling technology for optimal up — or down image scaling.

- Open Standard Streaming and Recording — Session content sharing and recording via the popular H264/5 open streaming standard over IT Lan and WAN networks.

- Room Control — Includes gateways and a rich set of relays, RS–232 and GPIOs to reduce the systems complexity offering the end–user a smooth and sophisticated room control experience.

- Standard Enterprise–Grade Secured Operation — Standard IT–grade authentication for secured IT LAN connectivity, and secured web–UI browsing and communication, with OWASP–10 (Open Web Application Security Project) standard penetration protection certification.

- Comprehensive Management — Local panel buttons operation, remote and secured management via integrated user–friendly web–UI server, and remote via IP–driven API control and management communication, for flexible service options and ensure lasting, field proven deployment.



Inputs

  • 2 Full-featured USB-C: On USB type–C female connectors

  • 8 HDMI: On HDMI female connectors

  • 1 Air-cast Wi-Fi: On a 2xRF antenna female connectors

  • 4 Analog Mic or 2 Balanced Stereo Audio: On 3–pin terminal block connectors

  • 4 Analog Balanced Stereo Audio: On 5–pin terminal block connectors



Outputs

  • 8 HDMI: On HDMI female connectors

  • 1 H.264/5 Encoder: On a USB type–C female connector for recording

  • 8 Analog Audio Balanced Stereo Line Level: On 5–pin terminal block connectors

  • 8 Dante Streaming Channels: On an RJ–45 female LAN connectors

  • 2 Power Amplifier Audio Stereo Line: On 4–pin large terminal block connectors

  • 2 Power Amplifier Audio Stereo Line: Note: On MTX3–88–PR–PRO model only

  • 4 IR: On 2–pin terminal block connectors



Interchangeable Inputs/Outputs

  • 8 HDBT: On RJ–45 female connectors



Ports

  • 3 1000BaseT Ethernet: On RJ–45 female connectors for LAN connection & extension

  • 1 100BaseT Ethernet: On an RJ–45 female connector for LAN connection and management

  • 4 USB 3.2 Device: On USB type–A female connectors

  • 2 USB 3.2 Device: On USB type–C female connectors

  • 1 USB 2.0 Device: On a USB type–C female connector for monitoring & recording

  • 4 RS-232: On 3–pin terminal block connectors

  • 4 SPDT Relay: On 3–pin terminal block connectors

  • 4 GPIO: On 2–pin terminal block connectors



Video

  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)

  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • Content Protection: HDCP 2.3

  • Compliance: HDMI 2.0b



Video Performance

  • Scaling: Up, down or cross–scaling

  • Minimum Resolution: 480p

  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • 1sec: Max Switching Time

  • Max Latency: 2 video frames



Multi View

  • Window Layouts: PiP, Side–by–side, Split



Video Wall

  • Output Wall Layout: 2x2

  • Max Video Walls: 2



USB

  • Max USB 3.2 Data Rate: 10Gbps

  • Integrated USB Hubs (layers): 2

  • USB Devices Groups: 2

  • Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1



USB-C

  • AV Compliance: MST DP 1.4a Alt Mode

  • Max AV Resolution: 4K60Hz 4:4:4 24bpp

  • Max Input AV Streams: 2

  • USB Compliance : 3.2 Gen 2

  • Max USB 3.2 Data Rate : 10Gbps

  • Charging Compliance : PD 3.0

  • Max Charging Power : 60W per port



Extension Line

  • Direction: Transmit or receive (per port)

  • Reach: Up to 100m (330ft)

  • Reach: Note: When using Kramer HDBaseT cables

  • PoE+ Providing: 30W per 802.3at Type 2

  • Standards Compliance: HDBaseT 3.0



Extended USB

  • Max USB 2.0 Data Rate: 480Mbps

  • Max Transmitted Data Bandwidth: 300Mbps

  • Standards Compliance: USB 2.0 and 1



Extended Ethernet

  • Max Data Rate: 1 Gbps



Extended RS-232

  • Baud Rate: 1200 to 115200



Air-cast Wi-Fi

  • Max Resolution: 4K@60Hz 4:2:0 resolution

  • Max Antenna Coax Cable Reach: 20m

  • Max Air-cast Connection Reach: 10m for device–connected antennas

  • Max Air-cast Connection Reach: 5m for coax–connected antennas

  • Max Air-cast Connection Reach: Note: At free line–of–sight connection

  • Max Connection Time: 3sec

  • Max Presentation Latency: 130msec

  • Standards Compliance: 802.11ac

  • Radio Frequency Bands: 5GHz

  • Content Sharing Applications: Point–to–Point: Miracast

  • Content Sharing Applications: IT Wi–Fi Access Point: Air–Play, Chromecast



Network Streamed Video

  • Max Resolution: 4K@60Hz 4:2:0 resolution

  • Max Latency: 130msec

  • Standards Compliance: H.264, H.265



Analog Audio Input

  • Impedance: Balanced: 20kΩ

  • Impedance: Unbalanced: 10kΩ

  • Nominal Level: Balanced: +4dBu

  • Nominal Level: Unbalanced: — 10dBV

  • Nominal Level: Note: Adjustable via input gain

  • Max Level: >+21dBu

  • Max Level: Note: At rated THD+N

  • CMRR: >70dB typical

  • Input Gain Adjustment: –20dB to +10dB, in 0.5dB steps



Microphone Input

  • Signal Type: Balanced: Condenser (with phantom power)

  • Signal Type: Unbalanced: Dynamic

  • Impedance: Balanced: 20kΩ

  • Impedance: Unbalanced: 10kΩ

  • Nominal Level: –60dBV

  • Nominal Level: Note: Adjustable via input gain

  • Max Level: Condenser: — 18dBu

  • Max Level: Dynamic: — 36dBV

  • Equivalent Input Noise: <–120dBV (1.0 µVrms)

  • Equivalent Input Noise: Note: At +40dB input gain

  • CMRR: >70dB typical

  • Input Gain Adjustment: –30dB to +24dB, in 0.5dB steps

  • Input Gain Adjustment: Note: Adjustable per input

  • DC Phantom Power: +48 VDC



Analog Audio Output

  • Impedance: Balanced: 100Ω

  • Impedance: Unbalanced: 50Ω

  • Gain: Balanced: 0dB

  • Gain: Unbalanced: — 6dB

  • Gain Error: ±0.1dB

  • Gain Error: Note: Channel to channel

  • Max Level: Balanced: +21dBu

  • Max Level: Unbalanced: +15dBu

  • Output Volume Range: –90dB to +10dB, in 0.5dB steps

  • THD + Noise : <0.01%, 20Hz to 20kHz

  • THD + Noise : Note: At maximum level

  • Frequency Response: : 20Hz to 20kHz, ±0.1 dB

  • Dynamic Range: 102dB typical

  • Dynamic Range: Note: 20Hz to 20kHz unweighted

  • S/N Ratio: >90dB, 20Hz to 20kHz

  • S/N Ratio: Note: At maximum balanced output (unweighted)

  • Crosstalk: ≤–90dB @ 20Hz to 20kHz

  • Crosstalk: Note: Fully loaded



Power Amplified Audio

  • Note: On MTX3–88–PR–PRO model only

  • Number of amplifiers: 2x 240W power amplifiers

  • Amplifier Type: Class D

  • Lo-Z Stereo Output Impedance: 4Ω or 8Ω

  • Hi-Z Mono Output Voltage: 70V or 100V

  • Port Output Power (per amplifier): Lo–Z: 2x120W @ 4Ω or 8Ω

  • Port Output Power (per amplifier): Hi–Z: 1x240W @70V or 100V

  • Max Voltage Gain: 26dB SE / 32dB BTL

  • Dynamic Range: 119dB

  • Frequency Response: 20Hz to 20kHz, ±0.1 dB

  • S/N Ratio: 80dB — 10dBV, 20Hz to 20kHz



Network Streamed Audio

  • Stream Compliance: Dante or AES67

  • Dante Sample Rates: 44.1 ,48 (default), 88.2, 96kHz

  • AES67 Sample Rate: 48kHz (default), 96kHz



Security

  • Web-UI Communication: HTTPS

  • User Access: Multiple roles and credentials

  • IT LAN Authentication: 802.1x

  • Penetration Protection Certification: OWASP–10



Power

  • Source: 85–240V AC

  • Max Consumption: 1110W

  • Max Power Providing Per HDMI Port: 2.5W (5V@0.5A)

  • Max PoE Providing Power Per HDBT Port: 30W

  • HDBT PoE Providing Compliance: 802.3at, Type 2

  • Max USB-C Charging Power Per USB-C Port: 60W

  • USB-C Charging Compliance: PD 3.0

  • Max USB Device Per Port Charging Power: 5W (5V@1A)



Environmental Conditions

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



Regulatory Compliance (Standards Compliance)

  • Safety: CE, FCC, UL

  • Environmental: RoHs, WEEE



Enclosure

  • Size: 19” 3U

  • Type: Aluminum

  • Cooling: Fan Ventilation

  • Max Fan Noise: 40dBA



General

  • Net Dimensions (W, D, H): 44cm x 38cm x 13.3cm

  • Net Dimensions (W, D, H): (17.4" x 15" x 5.3")



Accessories

  • Included: 2 Power cords, 1 multi–signal USB–C cable (1m), 2 antennas, 2 fuses, 1 set of rack ears



Product Dimensions

  • 19" x 9.33 x 3U (43.6cm x 23.70cm x 13.25cm) W, D, H



Product Weight

  • 10.7kg (23.6lbs) approx.
