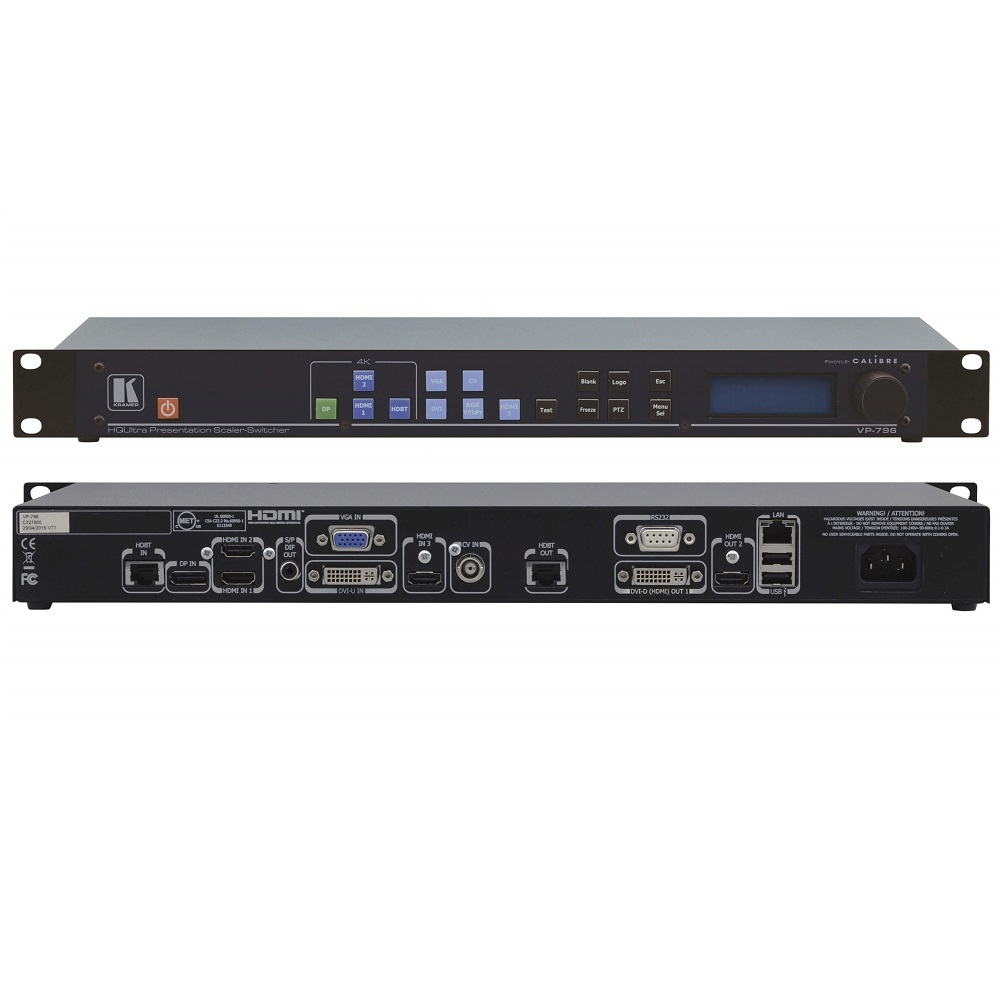

Bộ trình chiếu hình ảnh VP-796
Mô tả ngắn
Legacy and HDBaseT inputs and outputs
4K Processing
Low video latency
Ultra–fast input switching
Control — RS–232, TCP/IP & Web server
Hotline: 0918 642 886
VP−796 is a universal 4K@60Hz (4:2:0) presentation scaler−switcher for HDMI, DisplayPort, HDBaseT, VGA, composite and DVI−U video signals. Its HQUltraFast technology switches in typically a quarter of a second.
- HQUltra Scaling — Low–latency, 4K UHD best–in–class, proprietary scaling algorithms.
- HQUltraFast Switching — Proprietary technology for typical 0.25 second input channel switching.
- HDCP Compliant.
- Resolution Support. — Up to 4K@60Hz (4:2:0) UHD.
- Ease of Setup — Front panel jog–wheel and LCD display for fast easy set–up in the field.
- Color Calibration — For all source types including RGB controls, saturation & hue.
- Pan–Tilt–Zoom Control.
- Built–in Test Patterns — For easy projector setup.
- Supports Customized Video Logo.
- Flexible Aspect Ratio Conversion.
- Audio Handling — Audio de–embed from HDMI, DisplayPort, and HDBaseT inputs to S/PDIF; re–embed to HDMI, and HDBaseT outputs.
- Multiple Mirrored Outputs — For local monitoring of live output feed.
- Flexible Control Options — Front panel buttons and jog wheel with LCD, RS–232, Ethernet with built–in Web pages and via API.
- USB Connectors — For firmware upgrading.
INPUTS
1 HDBT on an RJ–45 connector, 1 DisplayPort connector, 2 HDMI (4K UHD) connectors, 1 HDMI (HD) connector, 1 DVI–U (DVI/HDMI & VGA/RGBS/YPbPr), 1 VGA on a 15–pin HD connector, 1 CV on an BMC connector
OUTPUTS
1 HDBT on an RJ–45 connector, 1 HDMI connector, 1 DVI/HDMI on a DVI–I connector, 1 S/PDIF on an RCA connector
PORTS
1 RS–232 on a 9–pin D–sub connector, 1 LAN on an RJ–45 connector, 2 USB–A connectors
COMPONENT VIDEO INPUT FORMATS
484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i @50, 59.94 and 60Hz and 1080p @23.98, 24, 25, 29.97 and 30Hz
HDMI/DVI SIGNAL FORMATS
SD: 625i (576i) and 525i (480i) in double–rate formats
ED: 480p, 576p
HD: 1280x720p, 1920x1080i, 1920x1080psf
1920x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz
2048x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz. The 4k capable HDMI 1 and HDMI 2 inputs also support: 3840x2160p & 4096x2160p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz (50, 59.94 & 60Hz supported in YUV 4:2:0 color space format)
OUTPUT RESOLUTIONS
640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1400x1050, 1600x1200, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024x1080, 2560x1080, 2560x1440, 2560x1600, 3860x2160, 4096x2160
FRAME RATE
60Hz, 59.94Hz, 50Hz, 48Hz, 25Hz, 24Hz, 23.97Hz, auto
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
POWER CONSUMPTION
100–264V AC, 50/60Hz
STANDARDS COMPLIANCE
CE: 2004/108/EC Electromagnetic Compatibility Directive, and 2006/95/EC Low Voltage Directive. Compliance is to EN55022 Class A
INCLUDED ACCESSORIES
Power cord, Rack “ears”
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
