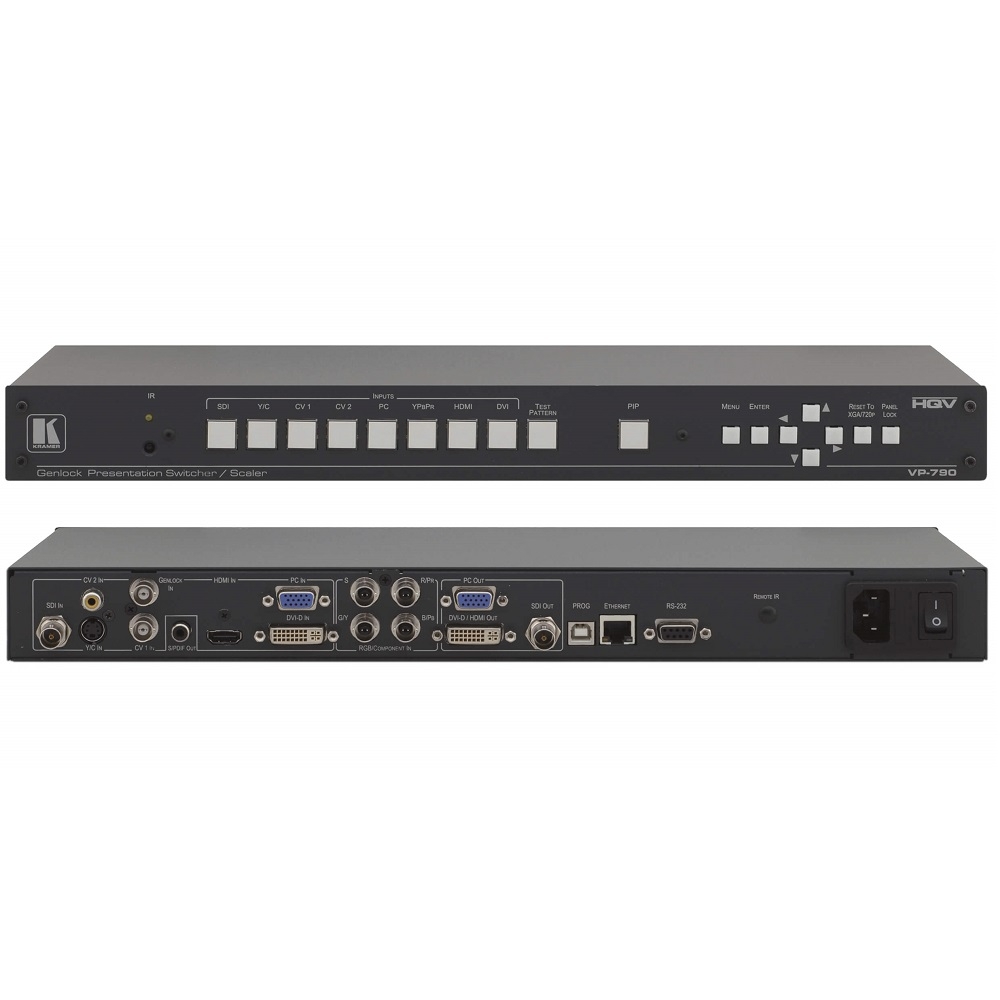

Bộ trình chiếu hình ảnh VP-790
Mô tả ngắn
HQV® Video Processing
Max. Data Rate — 3Gbps (HD–SDI)
Edge Blending
Video Warping
Genlock Input
Built–in ProcAmp
Control — IR, Ethernet & RS–232.
Hotline: 0918 642 886
The VP−790 is a high−quality presentation scaler/switcher for RGB component, computer graphics, composite, s−Video, HDMI, DVI and 3G HD−SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to the computer graphics, DVI/HDMI and 3G HD−SDI outputs simultaneously.
- HQV® Video Processing — HQV (Hollywood Quality Video) processing represents the state–of–the–art in video processing technology, with the highest quality de–interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard–definition and high–definition signals.
- Max. Data Rate — 3Gbps (3G HD–SDI).
- HDTV Compatible.
- HDCP Compliant — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass only to the HDMI output.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
- Video Warping — Uses user–generated screen coordinates to match any linear or non–linear surface.
- Edge Blending — Facilitates building large images using multiple projectors by feathering the overlapped edges.
- Video Inputs — 1 HDMI, 1 computer graphics video (15–pin HD), 2 composite video (BNC & RCA), 1 s–Video (4–pin), component video (RGBS), 1 DVI and 1 3G HD–SDI.
- Genlock Input — Ideal for use in broadcast video applications.
- Scaled Outputs — DVI/HDMI, 3G HD–SDI & computer graphics video (15–pin HD).
- Scales and Zooms — Up to 400% of the original size.
- Gaming Mode Option — For minimum latency.
- Audio Output — S/PDIF de–embedded from HDMI or SDI.
- Multiple Aspect Ratio Selections — Full, overscan, underscan, letterbox & panscan.
- Built–in ProcAmp — Color, hue, sharpness, noise, contrast, and brightness.
- Front Panel Controls — OSD, front panel buttons including test pattern, PIP and Reset to XGA/720p.
- Non–Volatile Memory — Saves final settings.
- Front Panel Lockout.
- Flexible Control Options — Front panel with OSD (on–screen display), IR remote, Ethernet and RS–232.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
INPUTS
1 SD/HD/3G HD–SDI on a BNC connector,
1 HDMI connector (HDCP version 1.1),
1 VGA on a 15–pin HD connector,
1 composite video on an RCA connector,
1 composite video on a BNC connector,
1 component video/RGBS on 3/4 RCA connectors,
1 DVI on a DVD–I connector,
1 s–Video on a 4–pin connector
OUTPUTS
1 SD/HD/3G HD–SDI on a BNC connector,
1 DVI/HDMI on a DVI–D connector (HDCP version 1.1),
1 VGA on a 15–pin HD connector,
1 S/PDIF on an RCA connector
OUTPUT RESOLUTIONS
640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200, 480i, 480p, 576p, 720p, 1080i, 1080p
CONTROLS
Input selector buttons: reset to XGA/720p, panel lock. Menu functions: menu, enter, menu arrows. RS–232, Ethernet, IR
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–25° to +85°C (–13° to 185°F)
HUMIDITY
5% to 95%, RHL non–condensing
POWER SOURCE
100–240V AC, 50–60Hz
35VA (500mA maximum)
INCLUDED ACCESSORIES
Power cord, rack "ears", IR remote control transmitter
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT
1.8kg (4.0lbs) approx.
