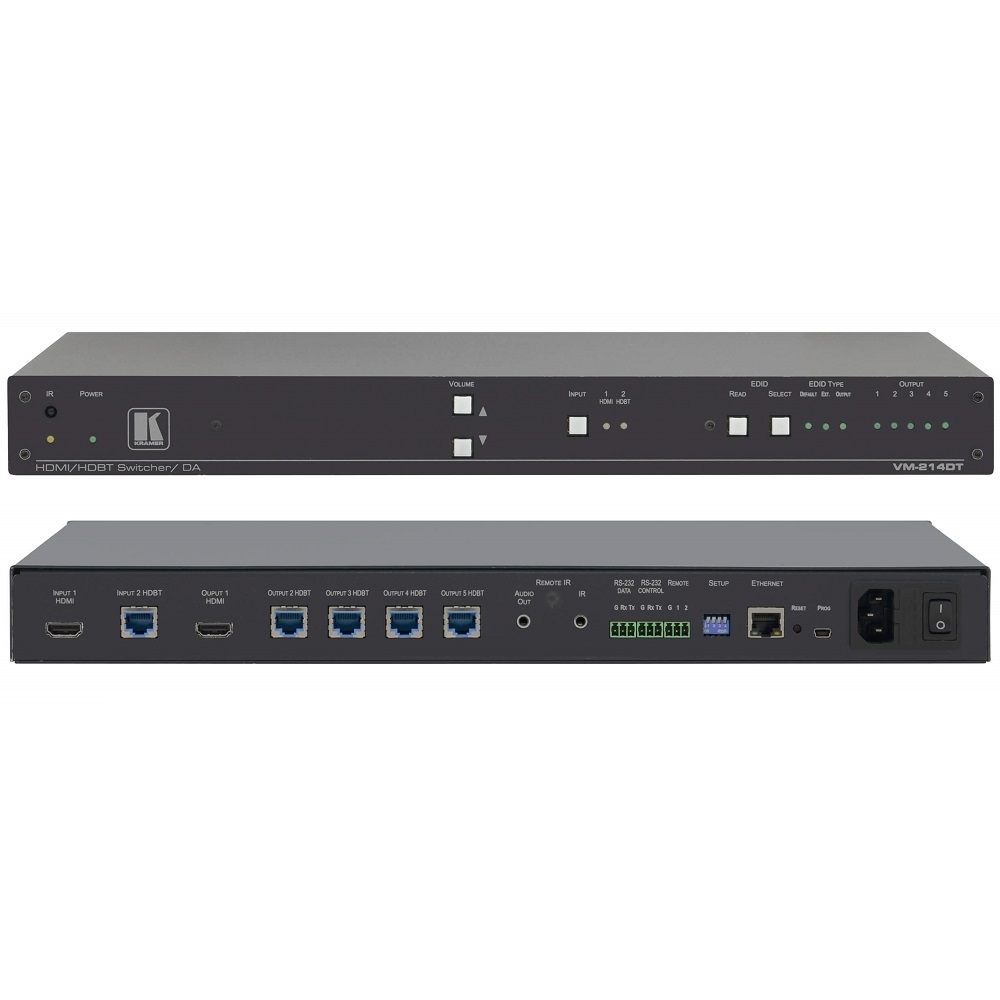

Bộ chia và khuếch đại HDMI-HDBT VM-214DT
Mô tả ngắn
2x1:4 4K60 4:2:0 HDMI & Extended–Reach HDBaseT with Ethernet, RS–232, IR & Stereo Audio Switchable DA Kramer VM-214DT
Resolution support up to 4K@60Hz (4:2:0)
Size — Standard 19" (1U). Rack "ears" included
Hotline: 0918 642 886
The VM−214DT is a 2x1:4 4K@60Hz (4:2:0) HDMI & extended−reach HDBaseT DA for HDMI & HDBaseT signals. It reclocks and equalizes the signal and distributes it to four identical HDBaseT outputs and a looping HDMI output. It supports resolutions up to 4K@60Hz (4:2:0). This product offers the versatility of control options and audio de−embedding.
- Max. Resolution — 4K@60Hz (4:2:0).
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant — Works with sources that support HDCP repeater mode.
- HDMI Support — Deep Color, x.v.Color™ and 3D.
- Automatic Live Input Detection — Based on video clock presence.
- Automatic Analog Audio Detection & De–embedding.
- Looping HDMI Output — Allow monitoring and cascading to additional DAs.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- System Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
- Data Equalization and Reclocking.
- Support for Digital Audio Formats.
- Lockable EDID and Default EDID — For fast and efficient connection of the unit.
- Support for EDID Designer.
INPUTS
-
1 HDMI: On a female HDMI connector
-
1 HDBT: On an RJ–45 connector
OUTPUTS
-
1 HDMI: On a female HDMI connector
-
4 HDBT: On RJ–45 connector
-
1 Unbalanced Stereo Audio: On a 3.5mm mini jack
PORTS
-
1 IR: On a 3.5mm mini jack for IR link extension via HDBT outputs
-
1 RS-232: On a 3–pin terminal block for serial link extension via HDBT outputs
-
1 Mini USB: On a female USB connector for firmware upgrade
-
1 RS-232: On a 3–pin terminal block for device control
-
1 10/100BaseT Ethernet: On an RJ–45 female connector for device control via LAN and Ethernet link extension via HDBT outputs
EXTENSION LINE
-
4K @60Hz (4:2:0): Up to 100m (330ft)
-
Full HD (1080p @60Hz 36bpp): Up to 130m (430ft)
-
HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp): Up to 180m (590ft)
-
Compliance: HDBaseT 1.0
VIDEO
-
Max. Resolution: 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)
-
Compliance: Supports and HDCP 1.4
-
HDMI Support: Deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
ANALOG AUDIO
-
Max Level: 1 Vrms
-
THD + Noise: 0.03% @1kHz at nominal level
USER INTERFACE
-
Controls: Input select, volume, and EDID read/select buttons. RS–232 device control, Ethernet, and DIP–switches
-
Indicators: Input select, EDID type, outputs and IR signal LEDs
SUPPORTED WEB BROWSERS
-
Windows 7 and Higher — Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
-
MAC — Chrome version 35, Chrome version 63.0.3239.84, Firefox version 30, Firefox version 57.0.2, Safari version 7
-
Minimum Browser Window Size — 1024 x 768 when in full screen mode
POWER
-
Consumption: 16VA
-
Source: 100–240V AC, 50/60Hz
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
STANDARDS COMPLIANCE
-
Safety: CE
-
Environmental: RoHs, WEEE
ENCLOSURE
-
Size: 19” 1U
-
Type: Aluminum
-
Cooling: Fan Ventilation
ACCESSORIES
-
Included: Power power cord, rack ears
PRODUCT DIMENSIONS
-
43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
PRODUCT WEIGHT
-
1.6kg (3.4lbs) approx.
