Bộ chia và khuếch đại HDMI VM-216H
Mô tả ngắn
Kramer VM-216H 2x1:16 HDMI Switchable DA
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
Switcher & DA
Enhanced EDID
Control — RS–232 & IR
Đơn giá: 75,000,000 VND (Đã bao gồm VAT)
Hotline: 0918 642 886
Product Description

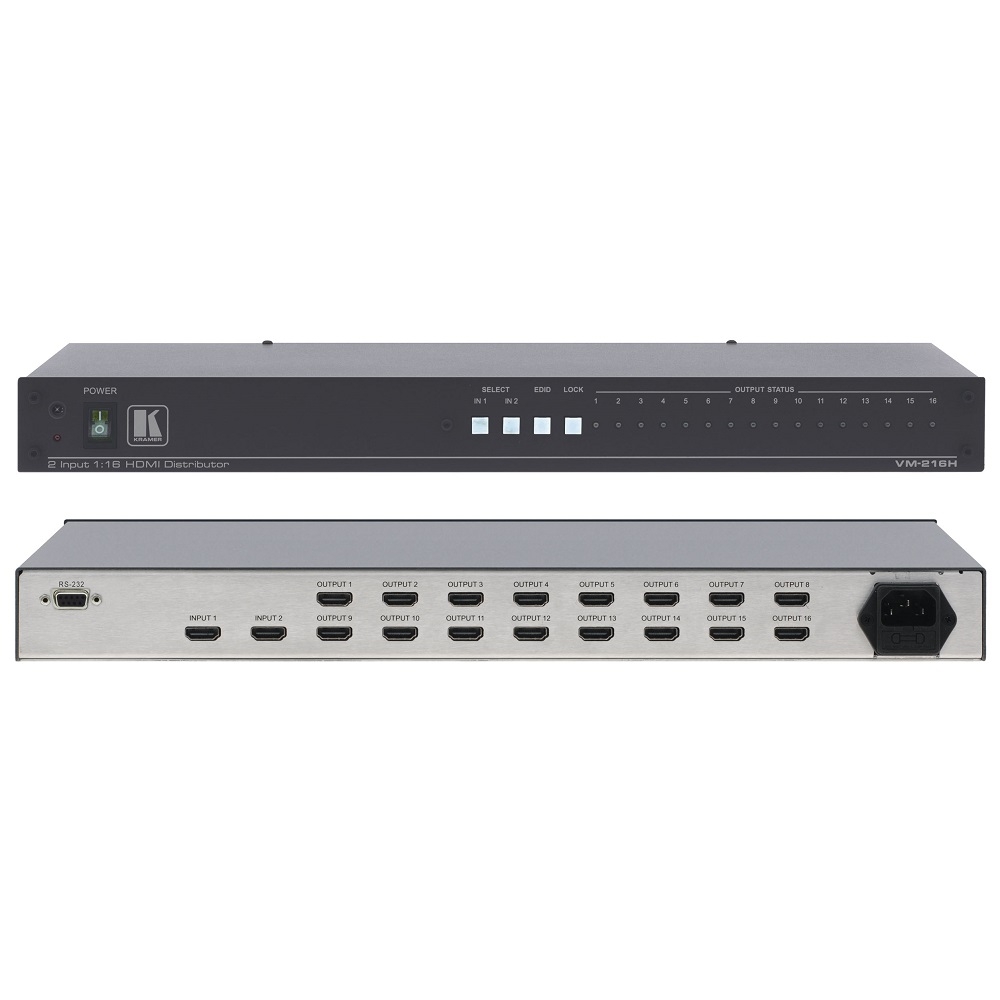

The VM−216H is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 or 16 identical outputs.
Key Features:
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
3D Pass–Through.
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
Control — RS–232 & IR.
Active Output LED Indicators.
Worldwide Power Supply — 100–240V AC.
Standard 19” Rack Mount Size — 1U.
INPUTS
2 on HDMI connectors.
OUTPUTS
16 on HDMI connectors.
BANDWIDTH
6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP.
CONTROLS
EDID, IN 1, IN 2, IR remote controller and LOCK buttons.
INDICATOR LEDs
Output status LEDs.
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F).
HUMIDITY
10% to 90%, RHL non–condensing.
POWER CONSUMPTION
100–240V AC, 50/60Hz, 48VA.
INCLUDED ACCESSORIES
Power cord.
BALANCED LINE LEVEL INPUT OPTIONS:
External remote IR receiver cable.
PRODUCT DIMENSION:
43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) W, D, H
PRODUCT WEIGHT:
2.0kg (4.4lbs) approx.
