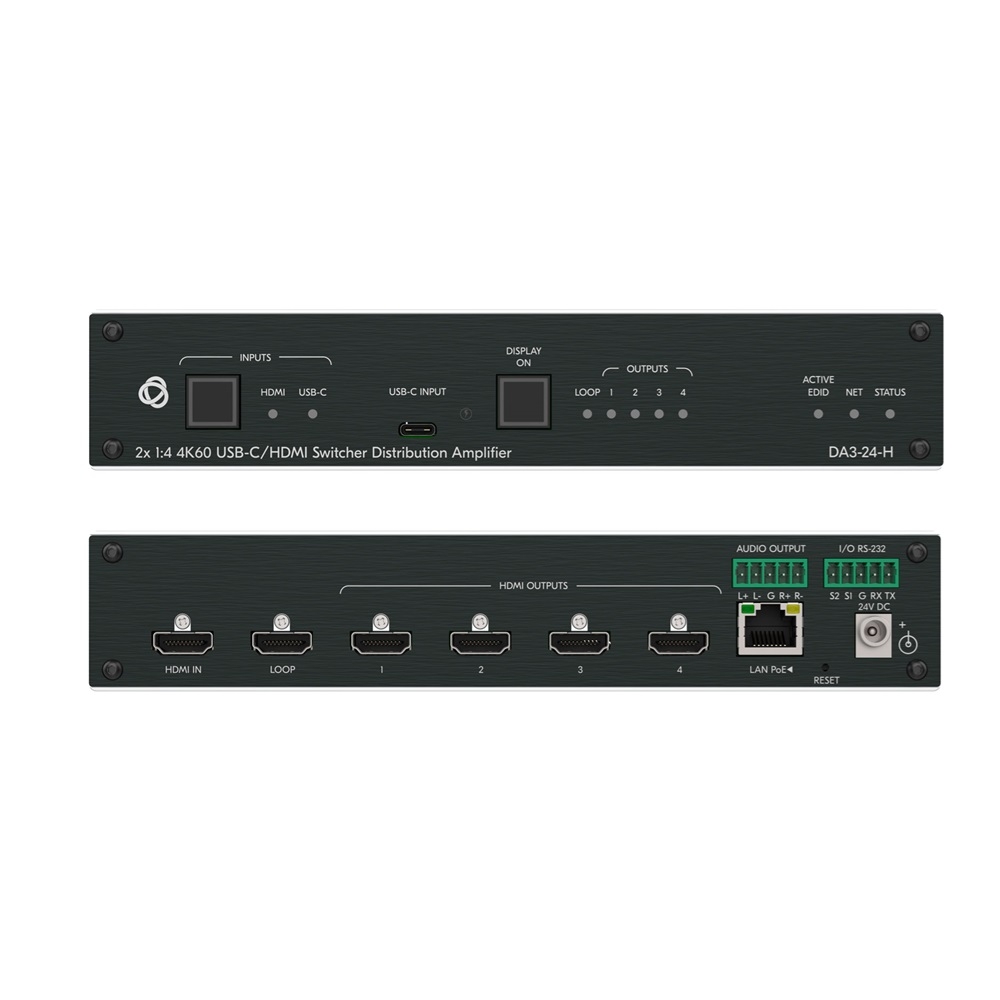

Bộ chia và khuếch đại HDMI USB-C DA3-24-H
Mô tả ngắn
Kramer DA3-24-H 2:4 4K HDR HDMI DA
Combined 2:1 switcher and 1:4 distributor amplifier
HDMI and USB-C video inputs
Fully managed (WEB GUI/P3K protocol)
Resolution Up to 4K@60Hz (4:4:4)
Analog audio extraction
Bandwidth Up to 17.82Gbps
Compliance HDR10, HDCP 2.2
Simple, intelligent EDID operation
PoE powered
Hotline: 0918 642 886
Kramer DA3-24-H is a premium 2x1:4 switcher and distribution amplifier for up to 4K HDR, video signals that comply with HDCP 2.2 content protection standard. The unit switches between one of two inputs HDMI or USB−C, equalizes and re−clocks the selected signal and distributes it to four identical outputs.
- Max. Resolution — 4K@60Hz (4:4:4).
- Intelligent EDID Handling — Use connected display EDID or default EDID, with EDID lock and RGB–force options, to ensure proper operation of HDMI source and display systems.
- Force RGB — When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
- Selectable HDCP Authorization — Allows the user to control the appearance of an HDCP or non–HDCP input to the source to permit delivery of protection–free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non–HDCP mode.
- Sophisticated CEC mediator with flexible routing options.
- Analog audio output — de–embedded from the HDMI/USB–C input signal
- RS–232 port may be configured to control external devices
- Easy Installation — 1’ enclosure for over–ceiling mounting, or side–by–side rack mounting.
Inputs
-
1 HDMI: On a female HDMI connector
-
1 USB-C: On USB type–C female connector
Outputs
-
4 HDMI: On female HDMI connectors
-
1 HDMI local: On a female HDMI connector
Ports
-
1 1000BaseT Ethernet: On an RJ–45 female connector for LAN connection & extension
-
Analog Audio: On a 5–pin R–L analog audio output
-
IO: On 2–pin terminal block connectors
-
2 RS-232: On 3–pin terminal block connectors
Video
-
Max Bandwidth: 18Gbps (6Gbps per graphic channel)
-
Max Resolution: 4K@60Hz 4:4:4 24bpp resolution
-
Content Protection: HDCP 2.3
-
Compliance: HDMI 2.0b
Security
-
Web-UI Communication: HTTPS
-
User Access: Multiple roles and credentials
-
IT LAN Authentication: 802.1x
-
Penetration Protection Certification: : OWASP–10
Power
-
Source: 20 VDC
-
Max Consumption: 76W
-
Max Power Providing Per HDMI Port: 2.5W (5V@0.5A)
Environmental Conditions
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
Regulatory Compliance (Standards Compliance)
-
Safety: CE, FCC, UL
-
Environmental: RoHs, WEEE
Enclosure
-
Type: Half–U 19"
-
Type: Aluminum
-
Cooling: Low noise fan
Accessories
-
Power Adapter: Included
Product Dimensions
-
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
Product Weight
-
0.8kg (1.8lbs) approx.
