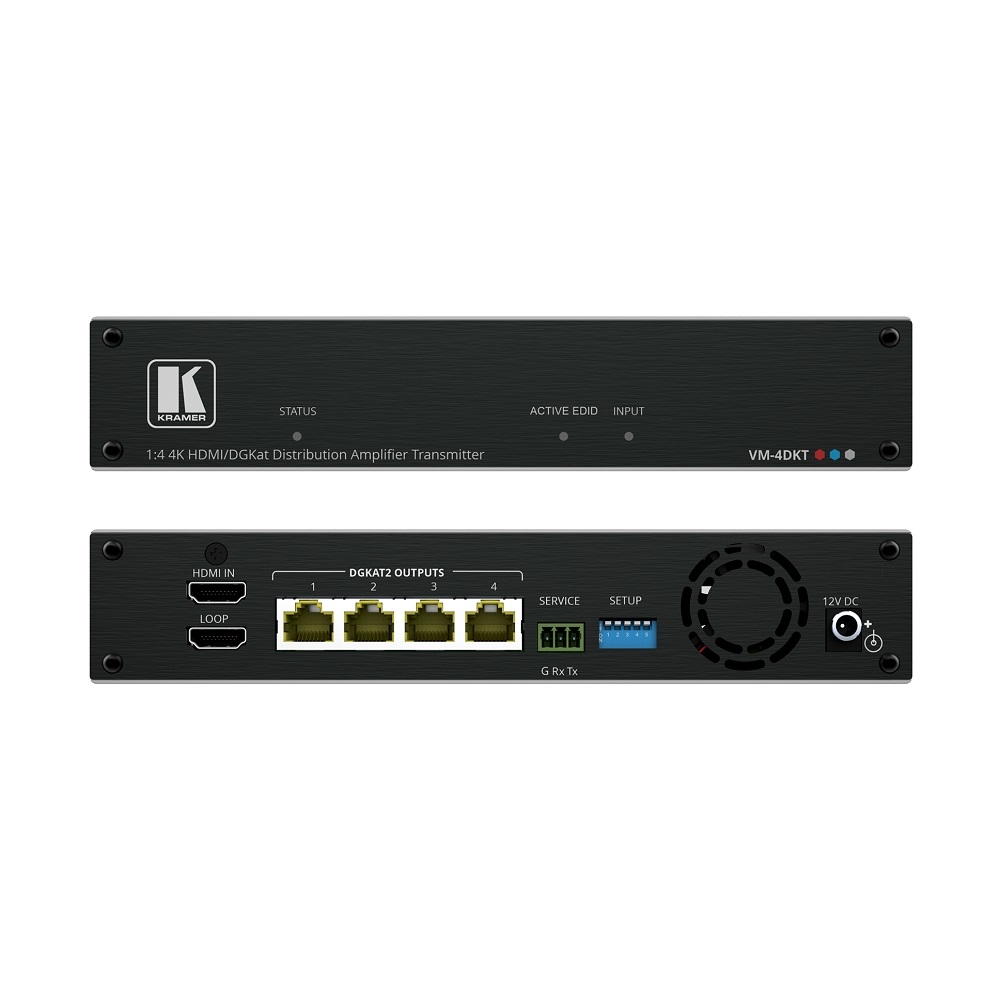

Bộ chia và khuếch đại HDMI-DGKat VM-4DKT
Mô tả ngắn
Kramer VM-4DKT 1:4 4K60 4:4:4 HDMI to Long-Reach DGKat 2.0 DA
1:4 HDMI extender distributor
Up to 60m (200ft) at 4K60 (4:4:4)
Remote PoC powering
Monitoring and cascading loop connection
Hotline: 0918 642 886
Kramer VM-4DKT 1:4 4K60 4:4:4 HDMI to Long–Reach DGKat 2.0 DA
VM−4DKT is a high−quality, long−reach, 4K@60Hz (4:4:4) DGKat extender distributor that converts HDMI input signals into the transmitted DGKat™ 2.0 signal and distributes it to four identical outputs, which are connected to compatible DGKat receivers.
- High Performance Extension — Professional DGKat™ 2.0 distributor transmitter for providing long–reach signals and power over twisted pair copper infrastructures. VM–4DKT employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency.
- HDMI Looping — Output mirroring allows presented content monitoring and its cascading to other connected components within the composed solution.
- HDMI Support — HDR10, HDCP 2.3, x, Dolby TrueHD, DTS–HD, 2K, and 4K as specified in HDMI 2.0.
- Multi–channel Audio Extension — Up to 8 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–effective Deployment — Flexible use of default or connected display EDID, with locking option, to ensure proper presentation of source HDMI content on remotely connected displays.
- Easy Installation — Single twisted–pair cable for signal and power distribution. Half 19” size enables flexible and convenient mounting under table or 2 side–by–side units in a 1U rack space.
Inputs
-
1 HDMI: On an HDMI female connector
Outputs
-
4 DGKat: On RJ–45 female connectors for extension lines
-
1 HDMI Loop: On an HDMI female connector
Ports
-
1 RS–232: On a 3–pin terminal block connector
Video
-
Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
-
Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
-
Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
-
Standards Compliance: HDR10, HDCP 2.3
High Compression Reach Extension
-
Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
-
Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
Standard Compression Reach Extension
-
Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
Extension Line
-
Signal Compression: Standard or high compression level applied to >1080p signals
-
Compliance: DGKat 2.0
Power
-
Source: 12V DC, 5A
-
Consumption: 2.8A
Enclosure
-
Type: Aluminum
-
Cooling: Fan ventilation
-
Size: ½ 19” 1U
Environmental Conditions
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
Accessories
-
Included Accessories: Power adapter, rubber feet
Product Dimensions
-
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
Product Weight
-
0.5kg (1.2lbs) approx.
