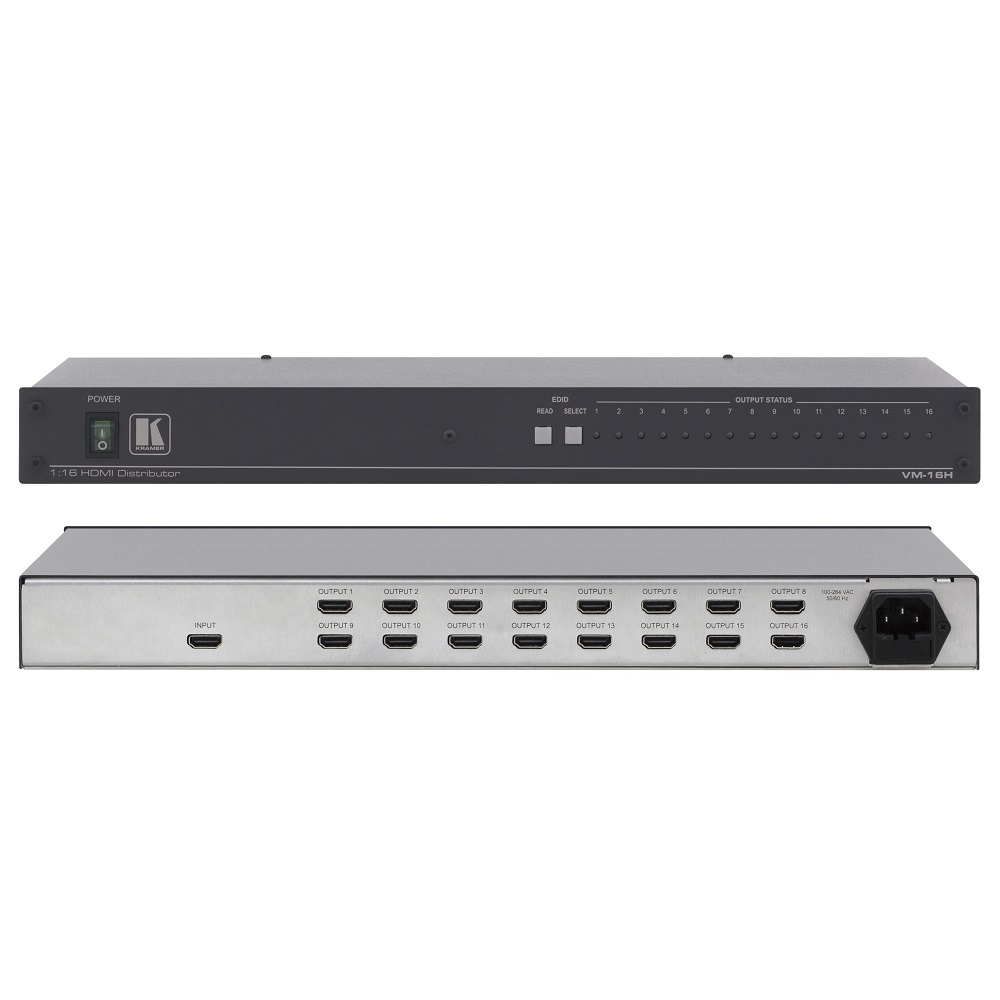

Bộ chia và khuếch đại HDMI VM-16H
Mô tả ngắn
1:16 HDMI Distribution Amplifier
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP Compliant
Enhanced EDID
Hotline: 0918 642 886
The VM−16H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 16 identical outputs.
-
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
-
- HDTV Compatible.
-
- HDCP Compliant.
-
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
-
- 3D Pass–Through.
-
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
-
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
-
- Active Output LED Indicators.
-
- Worldwide Power Supply — 100–240V AC.
-
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
INPUT
-
HDMI Connector
OUTPUT
-
8/16 HDMI connectors
BANDWIDTH
-
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
-
Supports HDMI and HDCP
CONTROLS
-
SELECT and READ buttons for selecting and storing EDID information
INDICATOR LEDS
-
OUTPUT STATUS 1 to 8/16
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
POWER CONSUMPTION
-
100–240V AC, 50/60Hz 48VA
INCLUDED ACCESSORIES
-
Power cord
PRODUCT DIMENSIONS
-
19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
PRODUCT WEIGHT
-
1.8kg (4.0lbs) approx.
