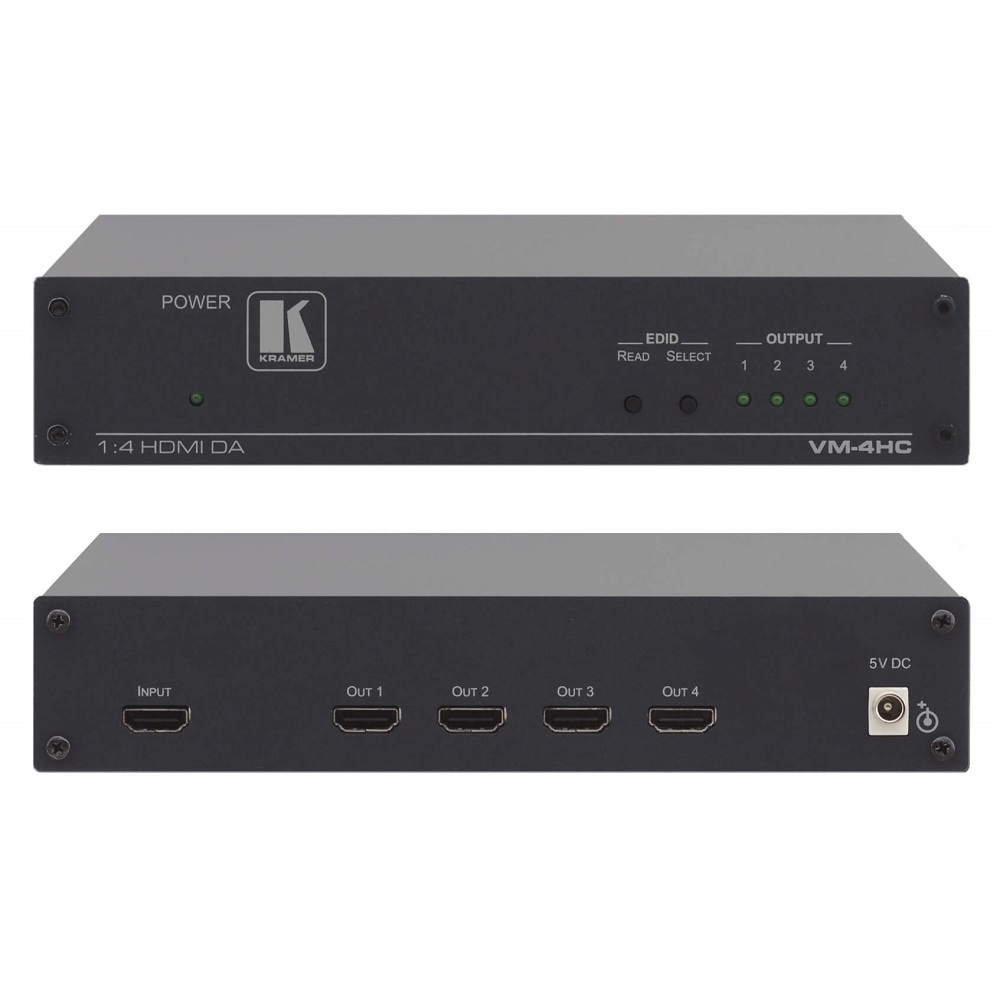

Bộ chia và khuếch đại HDMI VM-4HC
Mô tả ngắn
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
Enhanced EDID
* Supply is limited. This item will be discontinued when global inventory is depleted
Hotline: 0918 642 886
The VM-4HC is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to four identical outputs.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- EDID Acquisition — Default, single output or all connected outputs (auto–mix).
- HDMI Support — Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
- 3D Pass Thru.
- Active Input & Output LED Indictors
INPUT
-
1 HDMI connector
OUTPUTS
-
4 HDMI connectors
MAX. DATA RATE
-
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
-
HDMI and HDCP
CONTROLS
-
SELECT and READ buttons for selecting and storing EDID information
INDICATOR LEDS
-
OUTPUTS 1 to 4 and power LEDs
POWER CONSUMPTION
-
5V DC, 1.1A
INCLUDED ACCESSORIES
-
Power supply
PRODUCT DIMENSION
-
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
