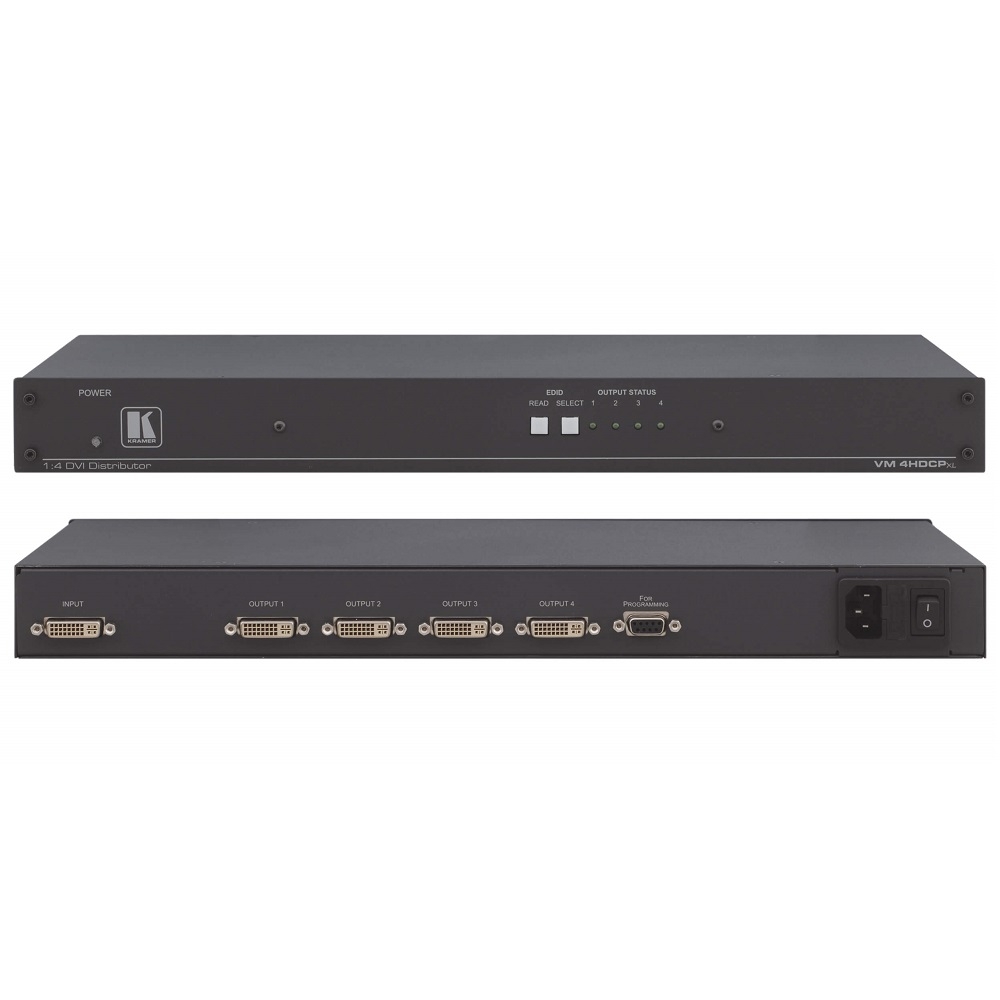

Bộ chia và khuếch đại DVI VM-4HDCPxl
Mô tả ngắn
1:4 DVI (HDCP) Distribution Amplifier
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP–Compliant
Reclocking & Equalization
Hotline: 0918 642 886
The VM-4HDCPxl is a high-performance distribution amplifier for DVI signals. The unit reclocks and equalizes one input signal and distributes it to four identical outputs.
-
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
-
- Max. Resolution — Up to UXGA & 1080p.
-
- HDTV Compatible.
-
- HDCP Compliant.
-
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for DVI source and display systems.
-
- Worldwide Power Supply — 100–240V AC.
-
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
INPUT
-
1 DVI, 1.2Vpp on a DVI Molex 24–pin (F) connector
-
DDC signal 5Vpp (TTL)
OUTPUTS
-
4 DVI, 1.2Vpp on DVI Molex 24–pin (F) connectors
-
DDC signal 5Vpp (TTL)
MAX. DATA RATE
-
6.75Gbps (2.25Gbps per graphic channel)
CONTROLS
-
EDID SELECT, EDID READ
INDICATOR LEDS
-
OUTPUT STATUS LEDs
POWER CONSUMPTION
-
100–240V AC, 50/60Hz 17VA
INCLUDED ACCESSORIES
-
Power cord, rack "ears"
PRODUCT DIMENSIONS
-
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT
-
1.5kg (3.2lbs) approx.
