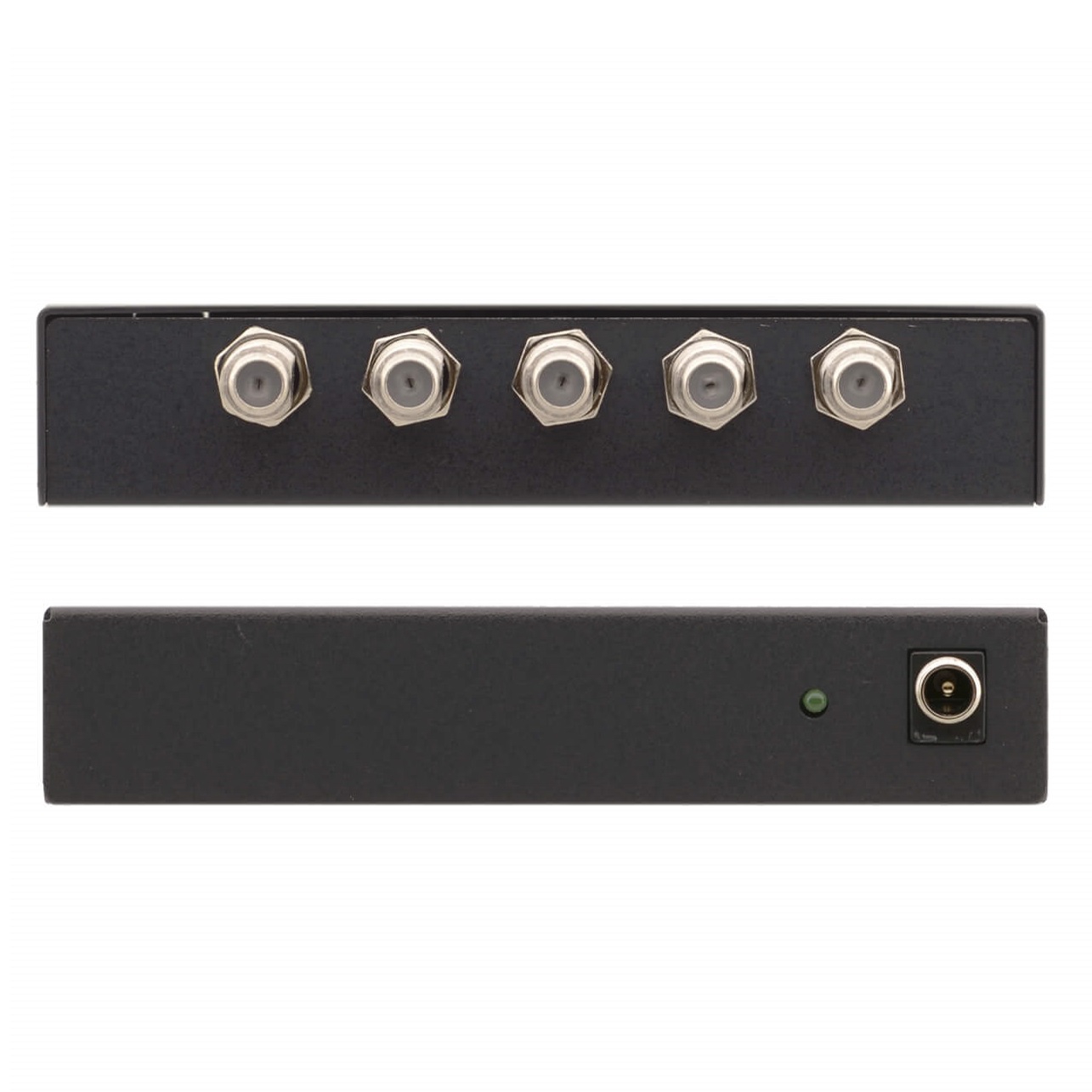

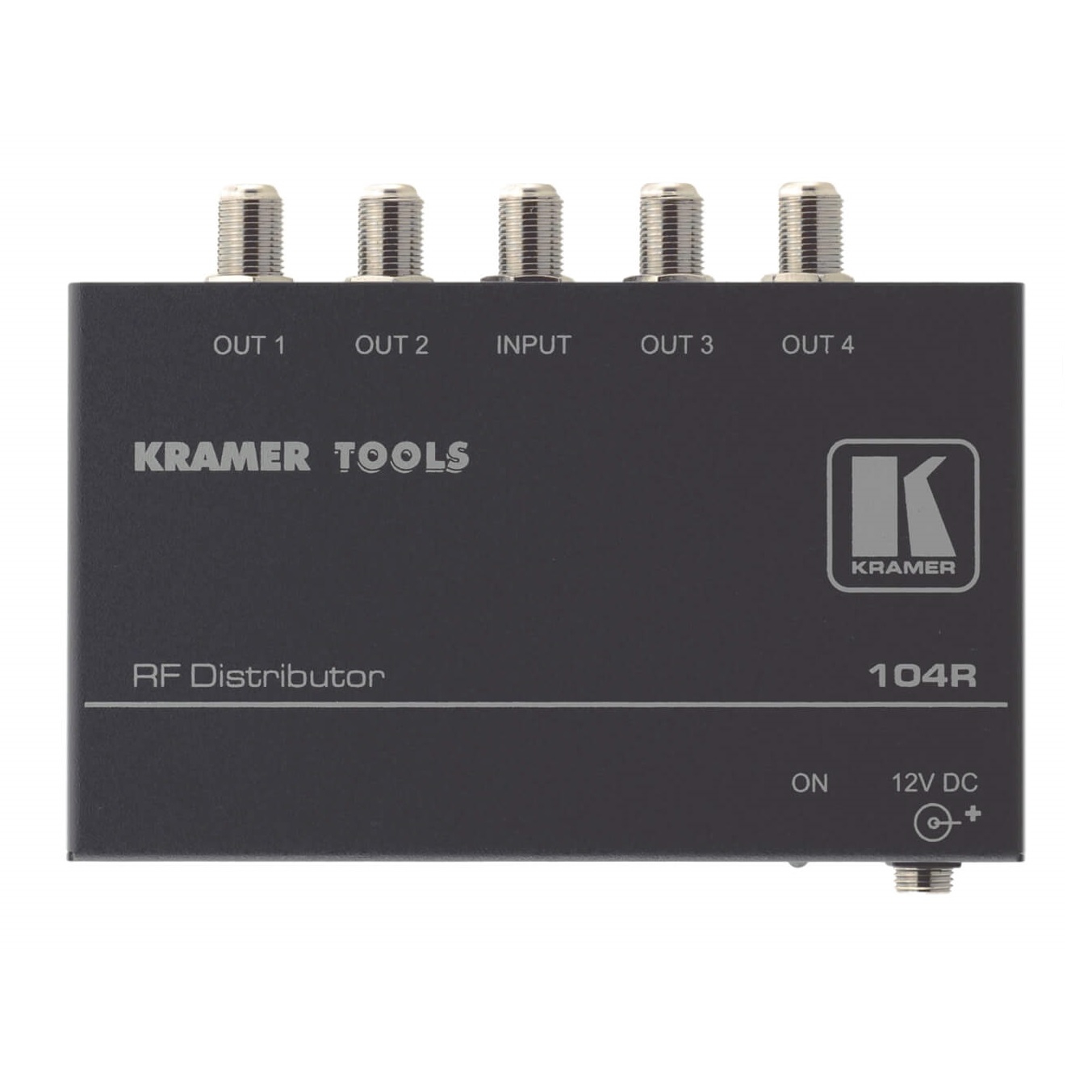

Bộ chia và khuếch đại RF 104R
Mô tả ngắn
Kramer 104R1:4 RF Distribution Amplifier
Bandwidth — 3GHz
Gain — 6dB
Size — TOOLS — Mount 3 units side–by–side in a 1U rack space with the optional RK–3T rack adapter.
Hotline: 0918 642 886
The 104R is a high−performance distribution amplifier for analog RF signals. It takes one RF (CATV/MATV) signal and distributes it to four identical outputs.
- High Bandwidth — 3GHz.
- RF Gain — +6dB across band.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.
INPUT
-
1 RF, 0.5Vpp/75Ω (max.) on an “F” type connector
OUTPUTS
-
4 RF, 0.5Vpp/75Ω (max.) on “F” type connectors
BANDWIDTH
-
40MHz to 3000MHz (+/–3dB)
COUPLING
-
AC
RF GAIN
-
+6dB typical across band
NOISE FIGURE
-
3.5dB
POWER CONSUMPTION
-
12V DC, 80mA
INCLUDED ACCESSORIES
-
Power supply, mounting bracket
OPTIONS
-
RK–3T 19" rack adapter
PRODUCT DIMENSION
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.2kg (0.4lbs) approx
