Bộ chuyển đổi HD SDI - HDMI FC-332
Mô tả ngắn

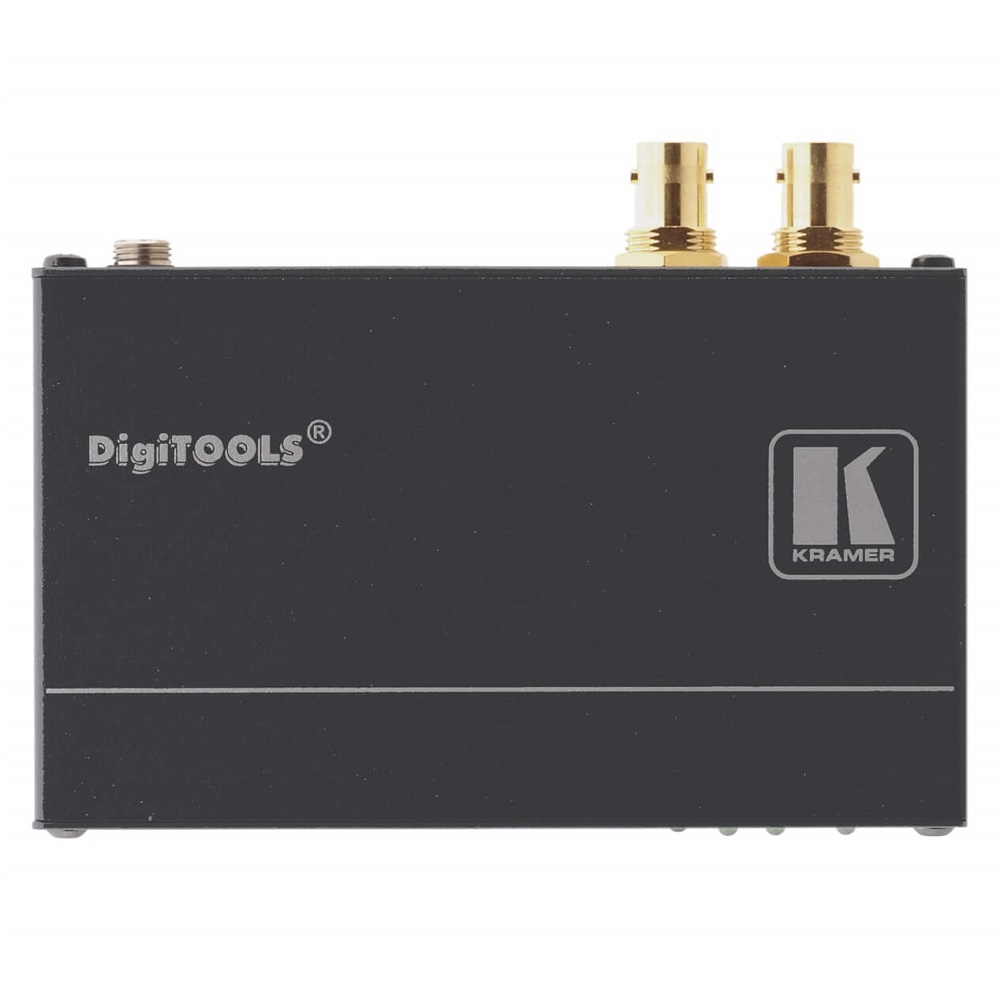

Kramer FC-332 3G HD–SDI to HDMI Format Converter
-
Max. Data rate — 3Gbps
-
Looping Input
-
Size — DigiTOOLS® — Mount 3 units side–by–side in a 1U rack space with the optional RK–3T rack adapter.
-
Audio — E
Hotline: 0918 642 886

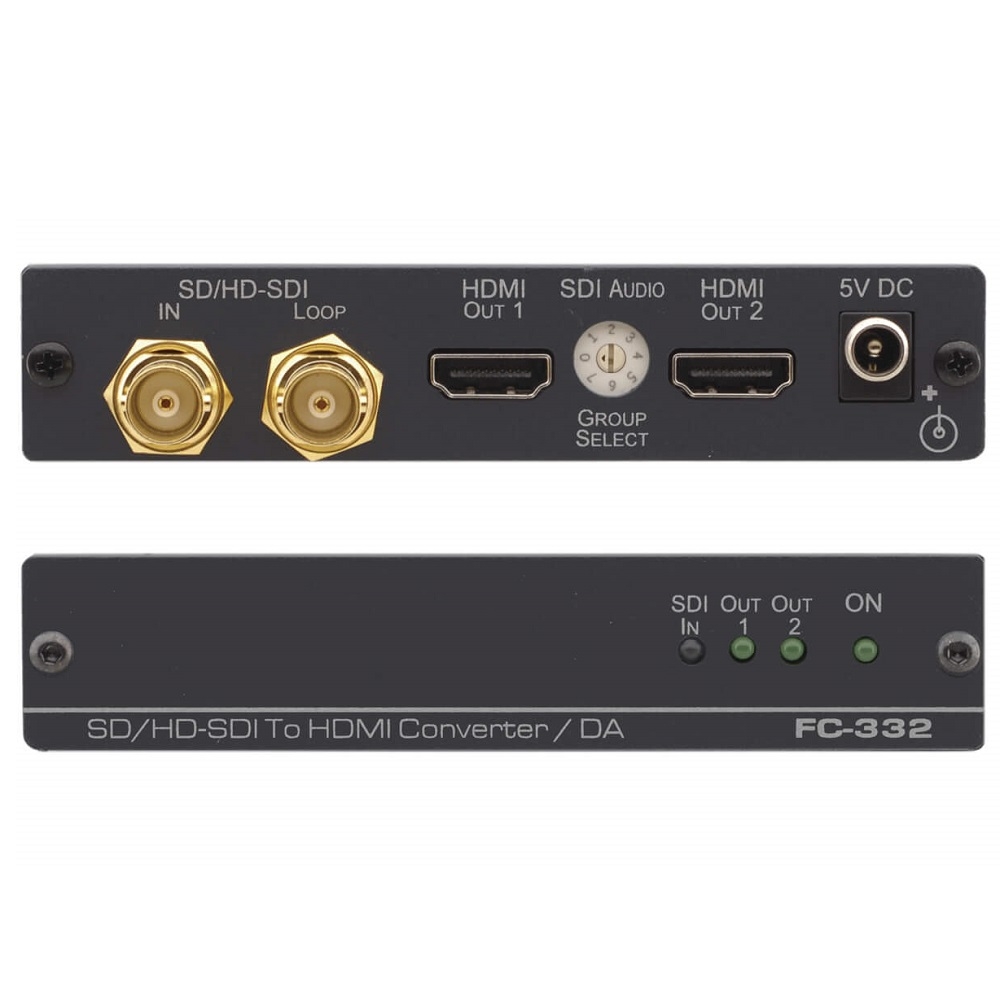

INPUT
-
1 SD/HD/3G HD–SDI with loop on BNC connectors
OUTPUTS
-
2 HDMI connectors
MAX. DATA RATE
-
Up to 3Gbps
STANDARD COMPLIANCE
-
HDMI
INDICATOR LEDS
-
SD/HD, OUT, ON
POWER CONSUMPTION
-
5V DC, 510mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
RK–3T 19” rack adapter
PRODUCT DIMENSION
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.3kg (0.7lbs) approx
SHIPPING DIMENSION
-
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
-
0.6kg (1.3lbs) approx
