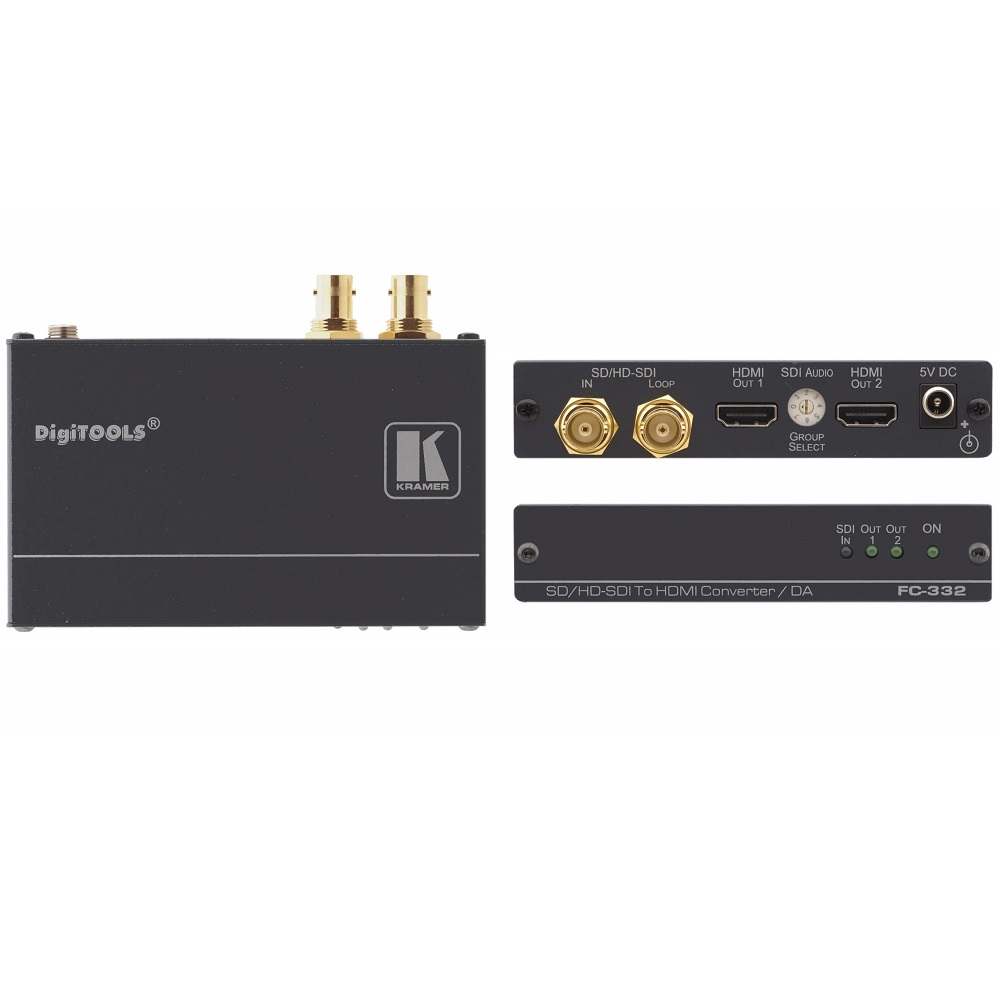

Bộ chuyển đổi 3G HD SDI - HDMI FC-332
Mô tả ngắn
Max. Data rate — 3Gbps
Looping Input
Hotline: 0918 642 886
The FC-332 is a high-performance format converter for video signals up to 3G HD-SDI. The unit converts the input video format (with embedded audio) to two HDMI outputs.
- HDTV Compatible.
- Looping Input.
- Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M) compliance and support for data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps.
- Embedded Audio Group Select Rotary Switch.
- Active Input Indication™ Reporting — Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
- Compact DigiTOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
INPUT
1 SD/HD/3G HD–SDI with loop on BNC connectors
OUTPUTS
2 HDMI connectors
MAX. DATA RATE
Up to 3Gbps
STANDARD COMPLIANCE
HDMI
INDICATOR LEDS
SD/HD, OUT, ON
POWER CONSUMPTION
5V DC, 510mA
INCLUDED ACCESSORIES
Power supply
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.3kg (0.7lbs) approx.
