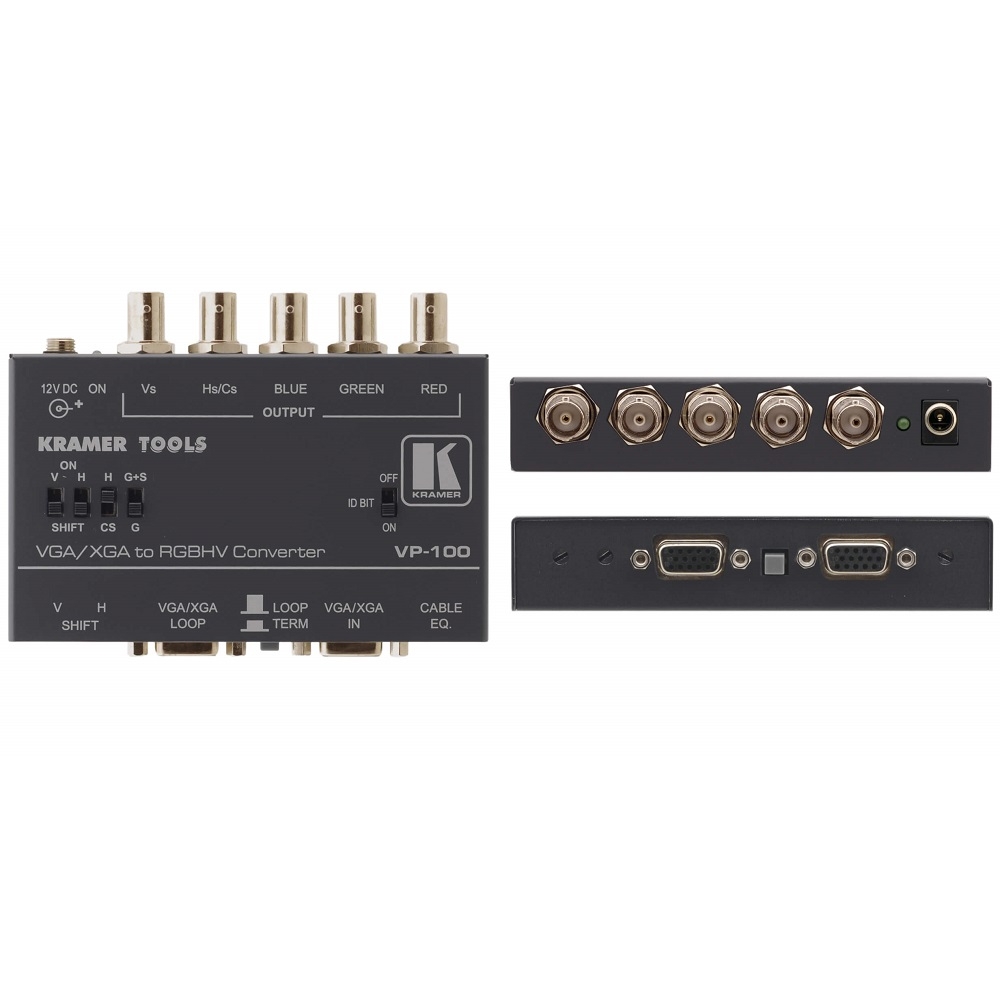

Bộ chuyển đổi VGA-BNC VP-100
Mô tả ngắn
Bandwidth — 350MHz (–3dB)
Looping Input
EQ Control
Hotline: 0918 642 886
The VP-100 is a high-performance format converter for computer graphics video signals. It converts a computer graphics video signal on a 15-pin HD connector to either RGBS, RGsB, or RGBHV video signals on BNC connectors.
- High Bandwidth — 350MHz (–3dB).
- Control — H/V sync shift & sync selection.
- Looping Input.
- Selectable Input Signal Termination.
- ID Bit Control.
- EQ (Peaking) Control.
- Active Line Amplification Circuitry.
INPUT
1 analog red, green, blue signals: 0.7Vpp/75Ω, H & V sync, TTL level, with loop on 15–pin HD (F) connectors
OUTPUTS
1 analog red, green (with or without composite sync), blue signals: 0.7 Vpp/75Ω
H & V syncs: TTL level (Hi–Z load) or analog level (75Ω load) on BNC connectors
1 composite sync: TTL levels (Hi–Z load) or analog level (75Ω load)
VIDEO BANDWIDTH (-3DB)
350MHz
DIFF. GAIN
0.07%
DIFF. PHASE
0.03Deg
K-FACTOR
0.05%
VIDEO S/N RATIO
71dB
CONTROLS
Cable EQ, H & V sync shift, G/sync on green switch, Hs/Cs switch, ID bit switch, input termination switch
EQ. CONTROL
0 to +9.7dB @5MHz
POWER CONSUMPTION
12V DC, 60mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
0.6kg (1.3lbs) approx.
PRODUCT WEIGHT
0.3kg (0.6lbs) approx.
