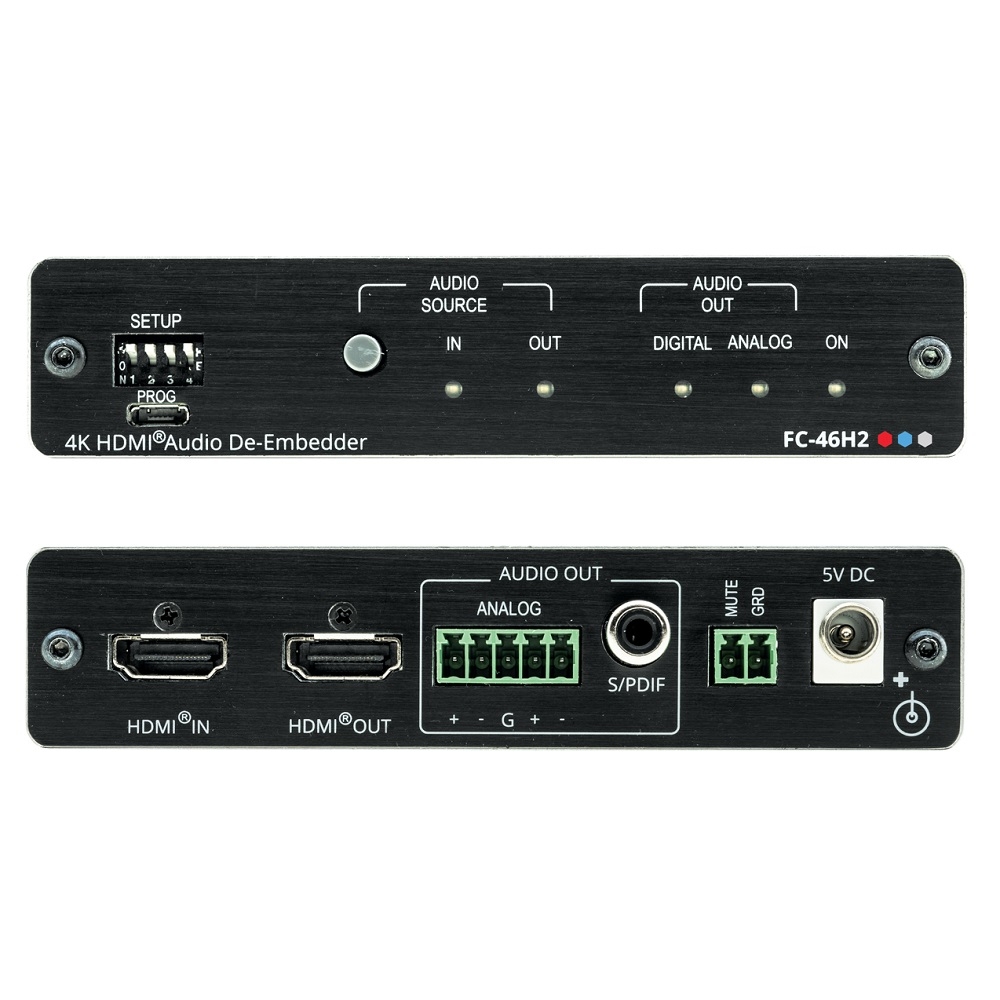

Thiết bị tách âm thanh 4K HDR HDMI FC-46H2

Thiết bị tách âm thanh 4K HDR HDMI FC-46H2

Mô tả ngắn

Kramer FC-46H2 4K HDR HDMI Audio De–embedder
De–embed from the HDMI output or ARC
Output to digital or analog Audio
Smart EDID Management

liên hệ mua hàng
Hotline: 0918 642 886

Kramer FC−46H2 is a professional HDMI audio de−embedder for HDMI signals up to 4K@60Hz (4:4:4) resolution. The unit de−embeds the audio signal from the HDMI input or from the HDMI output ARC (Audio Return Channel) and simultaneously outputs it to the S/PDIF® and 5−pin balanced audio outputs.



- Professional HDMI Audio De–embedder — De–embeds the audio from HDMI signals with resolution up to 4K@60Hz (4:4:4) and data rate up to 18Gbps (6Gbps per graphic channel), supporting HDR and HDCP 2.2/1.4.

- Flexible De–embedding — De–embed the audio from the HDMI input or from the HDMI output ARC (Audio Return Channel).

- Varied Output Options — De–embedded audio is simultaneously output to an S/PDIF® and 5–pin balanced audio outputs.

- Smart EDID Management — Select one of the EDID management modes using the DIP–switches: pass–through, lock or force 2 channel LPCM.

- Kramer re–Klocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.

- Convenient Control and Maintenance — Audio Source front panel button enables local switching to either the HDMI input audio or the HDMI output ARC. Audio source, audio output, and power LED indicators enable easy local maintenance and troubleshooting. Local firmware upgrade via the mini USB port ensures lasting, field–proven deployment.

- Easy Installation — Compact DigTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.



INPUTS

  • HDMI: On a female HDMI connector



OUTPUTS

  • HDMI: On a female HDMI connector

  • S/PDIF Digital Audio: On an RCA connector

  • Balanced Stereo Analog Audio: On a 5–pin terminal block connector



VIDEO

  • Bandwidth: Up to 18Gbps (6Gbps per graphic channel)

  • Max. Resolution: Up to 4K@60 (4:4:4)

  • HDMI Support: 4K@60Hz and ARC as specified in HDMI 2.0

  • Content Protection: Supports HDCP 2.2



AUDIO

  • Frequency Response: 20Hz to 20kHz @ +/–0.1dB

  • S/N Ratio: >90dB

  • THD+N: 0.004%



USER INTERFACE

  • Control: Setup DIP–switches for EDID mode, audio settings, analog audio amplification. Contact closure switch for:output mute

  • Indicators: Audio sources (IN and OUT), Audio output (DIG and ANALOG), and ON LEDs



POWER

  • Consumption: 5V DC, 370mA

  • Source: 5.2V DC, 4A



ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



REGULATORY

  • Safety: CE,

  • Environmental: RoHs, WEEE



ENCLOSURE

  • Size: Tool

  • Type: Aluminum

  • Cooling: Convection ventilation



ACCESSORIES

  • Included: 1 Power adapter, 1 power cord and 1bracket set per device



PRODUCT DIMENSIONS

  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H



PRODUCT WEIGHT

  • 0.2kg (0.5lbs) approx.
