Bộ chuyển đổi 3G HD SDI - HDMI FC-331
Mô tả ngắn

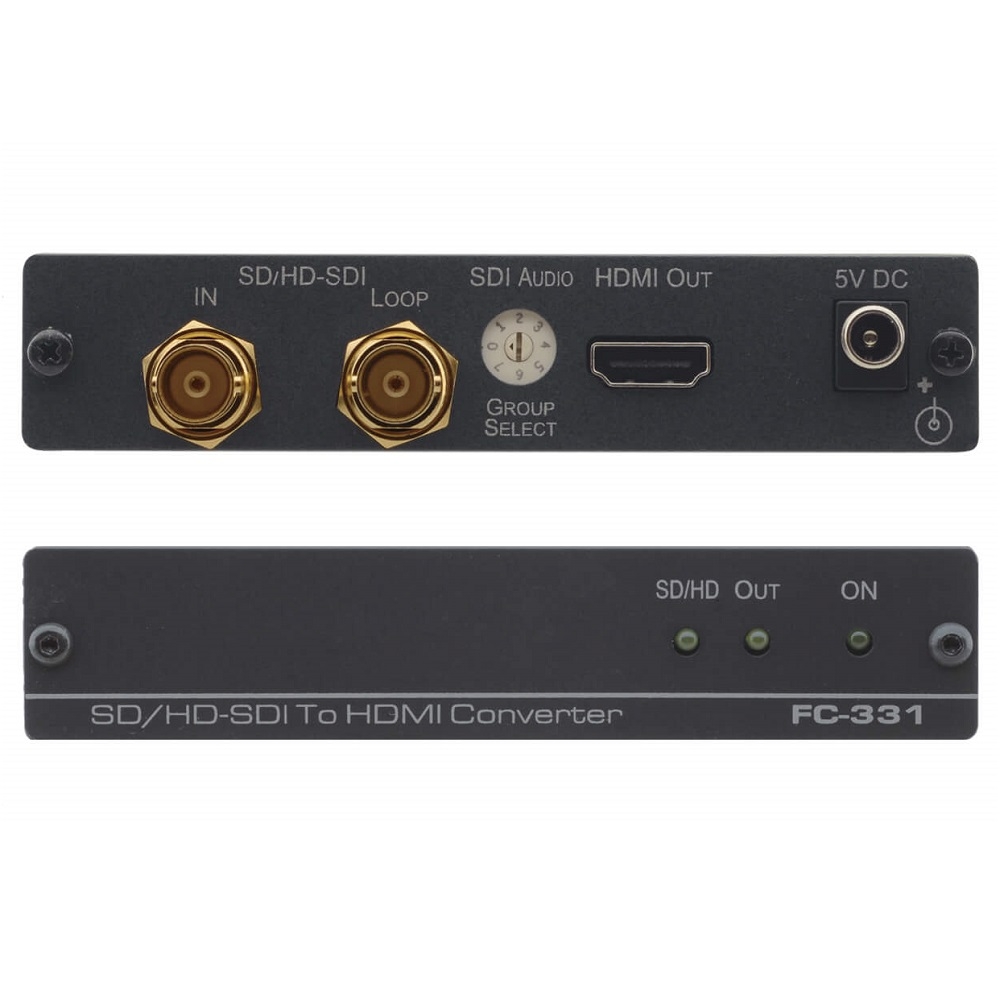

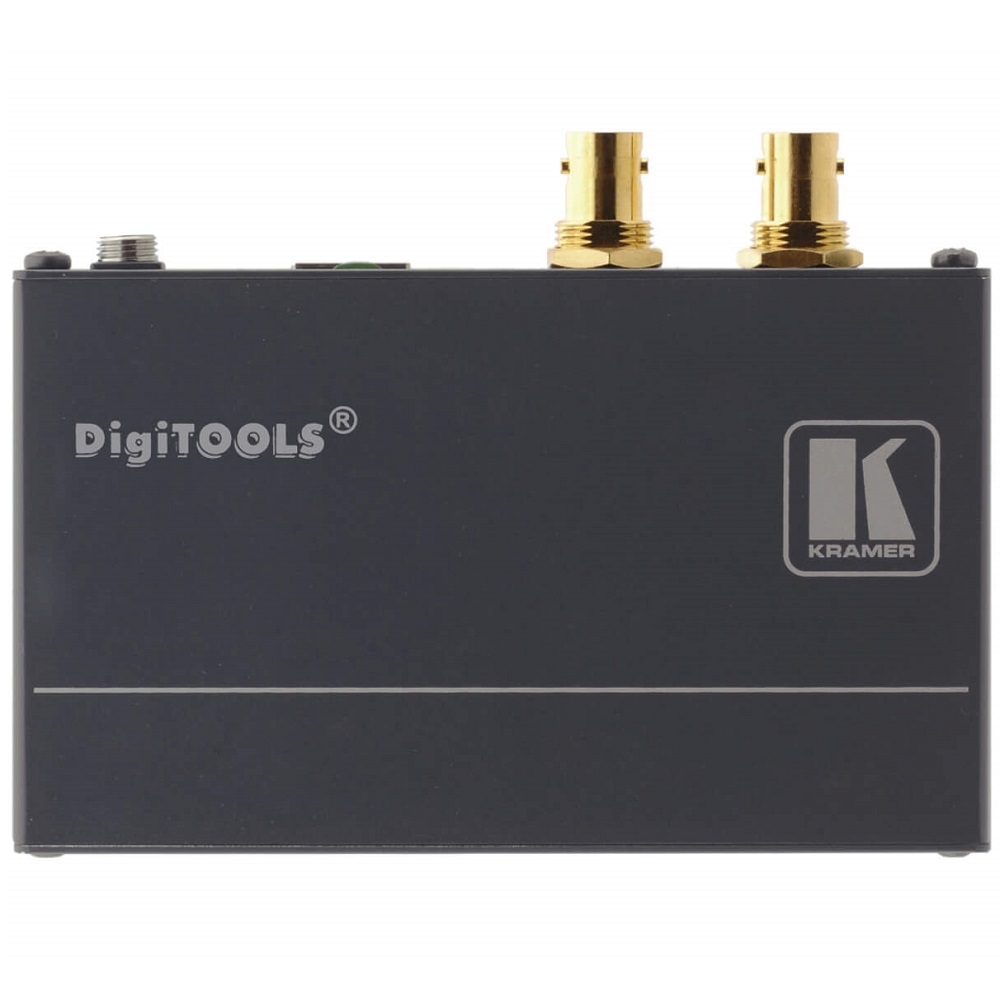

Kramer FC-331 3G HD–SDI to HDMI Format Converter
-
Max. Data Rate — 3Gbps
-
Looping Input
-
Size — DigiTOOLS® — Mount 3 units side–by–side in a 1U rack space with the optional RK–3T rack adapter.
-
Audio — E
Hotline: 0918 642 886
The FC−331 is a high−performance format converter for video signals up to 3G HD−SDI (Level A). It converts the input video format (with embedded audio) to an HDMI output signal. The FC−331−MD is certified for medical applications.
-
Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
-
SDI Level A Support.
-
Certified for Medical Applications — According to IEC 60601–1–2 (Electromagnetic Compatibility), (FC–331–MD).
-
Looping Input with Reclocking.
-
HDTV Compatible.
-
Audio Group De–embedded Selection.
-
Active Input & Output LED Indicators.
INPUT
-
1 SD/HD/3G HD–SDI (Level A) with loop on BNC connectors
OUTPUTS
-
1 HDMI connector
MAX. DATA RATE
-
Up to 3Gbps
STANDARD COMPLIANCE
-
HDMI
INDICATOR LEDS
-
SD/HD, OUT, ON
POWER CONSUMPTION
-
5V DC, 400mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
RK–3T 19” rack adapter
PRODUCT DIMENSION
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.2kg (0.4lbs) approx
SHIPPING DIMENSION
-
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
-
0.5kg (1.1lbs) approx
