Bộ chuyển đổi HDMI - 3G HD SDI FC-113
Mô tả ngắn

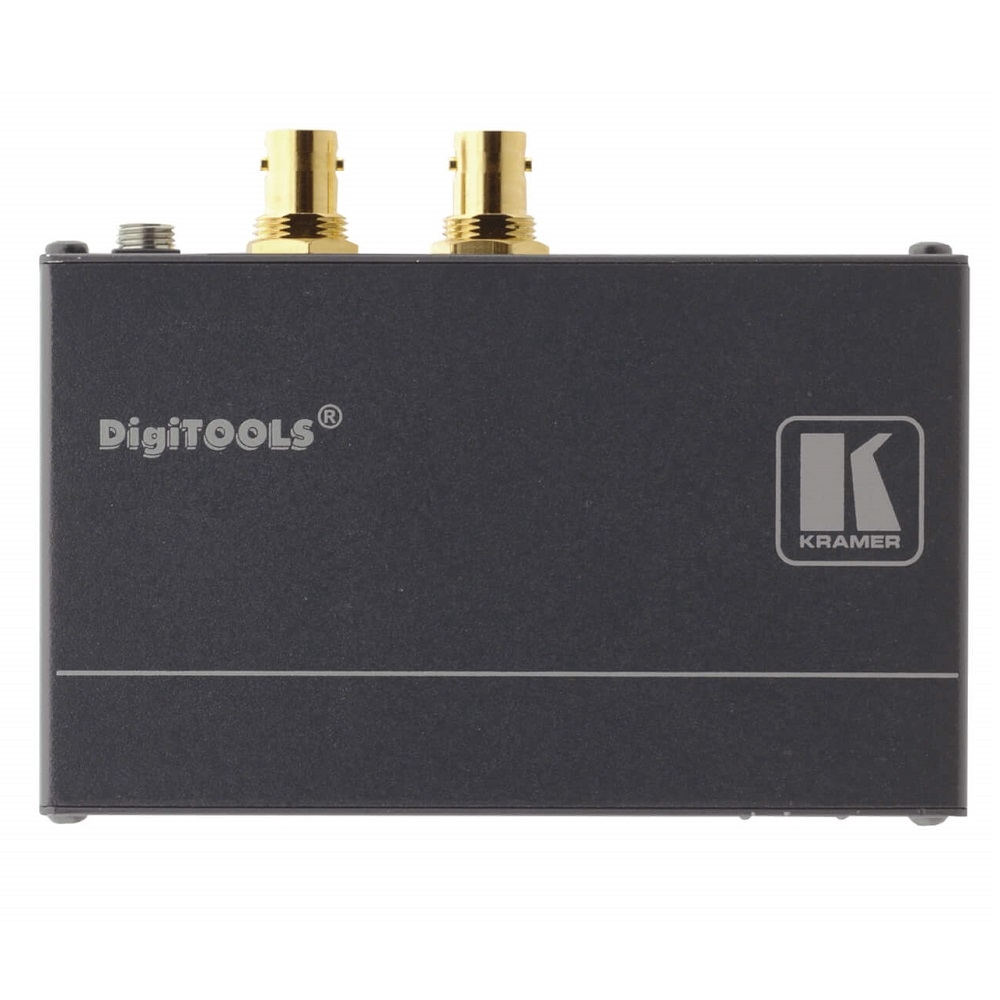

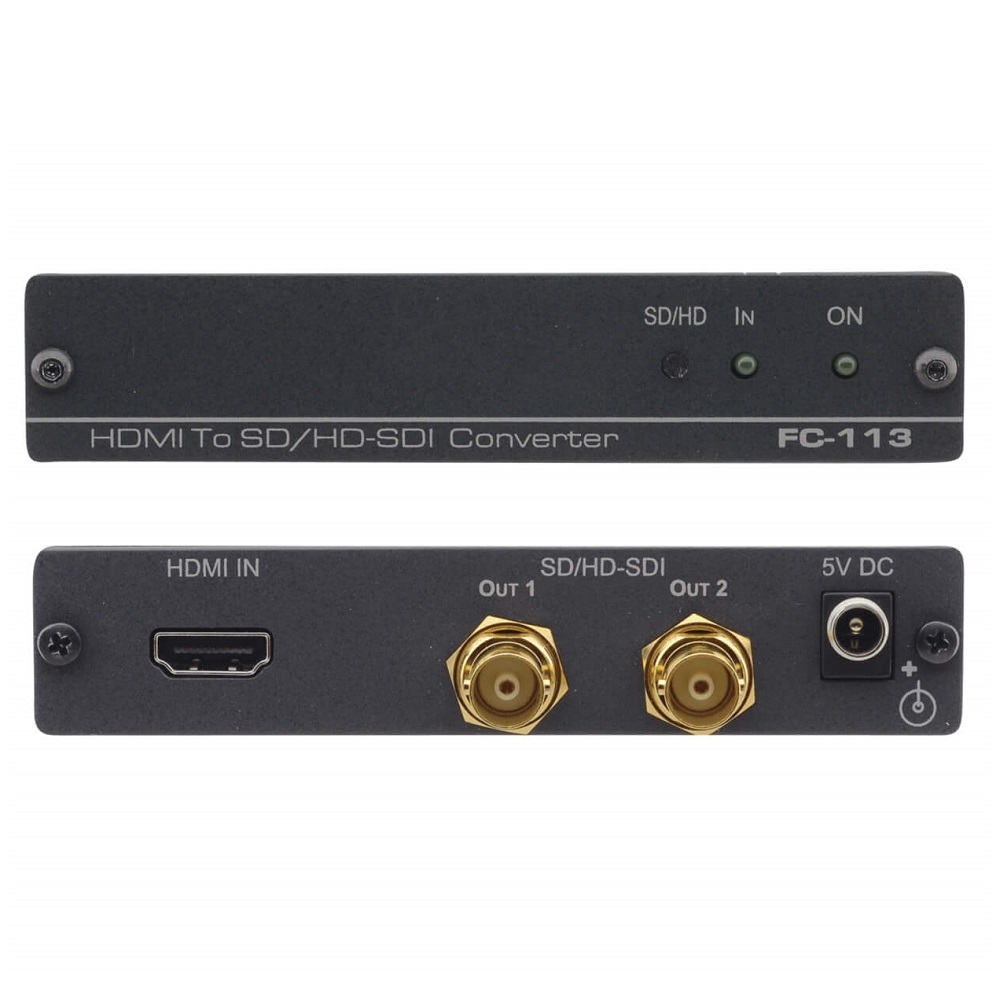

Kramer FC-113 HDMI to 3G HD–SDI Format Converter
-
Max. Data Rate — 3Gbps
-
No Frame Rate or Resolution Conversion
-
Size — DigiTOOLS® — Mount 3 units side–by–side in a 1U rack space with the optional RK–3T rack adapter.
-
Audio — E
Hotline: 0918 642 886
The FC-113 is a high-performance format converter for HDMI signals. It converts an HDMI input signal to two identical SDI video signals with embedded audio. The FC-113-MD is certified for medical applications.
-
Max. Data Rate — 3Gbps.
-
HDTV Compatible.
-
Multi–Standard Operation — SDI (SMPTE 259M), HD‑SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M).
-
Certified for Medical Applications — According to IEC 60601–1–2 (Electromagnetic Compatibility), (FC–113–MD).
-
No Frame Rate or Resolution Conversion.
-
Active Input™ LED Reporting — Green indicates standard definition (SDI), blue indicates a high–definition (HD–SDI) input signal.
INPUT
-
1 HDMI connector
OUTPUTS
-
2 SD/HD/3G HD–SDI on BNC connectors
MAX. DATA RATE
-
Up to 3Gbps
STANDARD COMPLIANCE
-
HDMI
INPUT FORMATS
-
525i, 625i
-
1080p @23.98/24/25/29.97/30/50/59.94/60
-
1080i @50/59.94/60
-
720p @50/59.94/60
INDICATOR LEDS
-
SD/HD, OUT, ON
POWER CONSUMPTION
-
5V DC, 470mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
RK–3T 19” rack adapter
PRODUCT DIMENSION
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.2kg (0.4lbs) approx
SHIPPING DIMENSION
-
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
-
0.5kg (1.1lbs) approx
