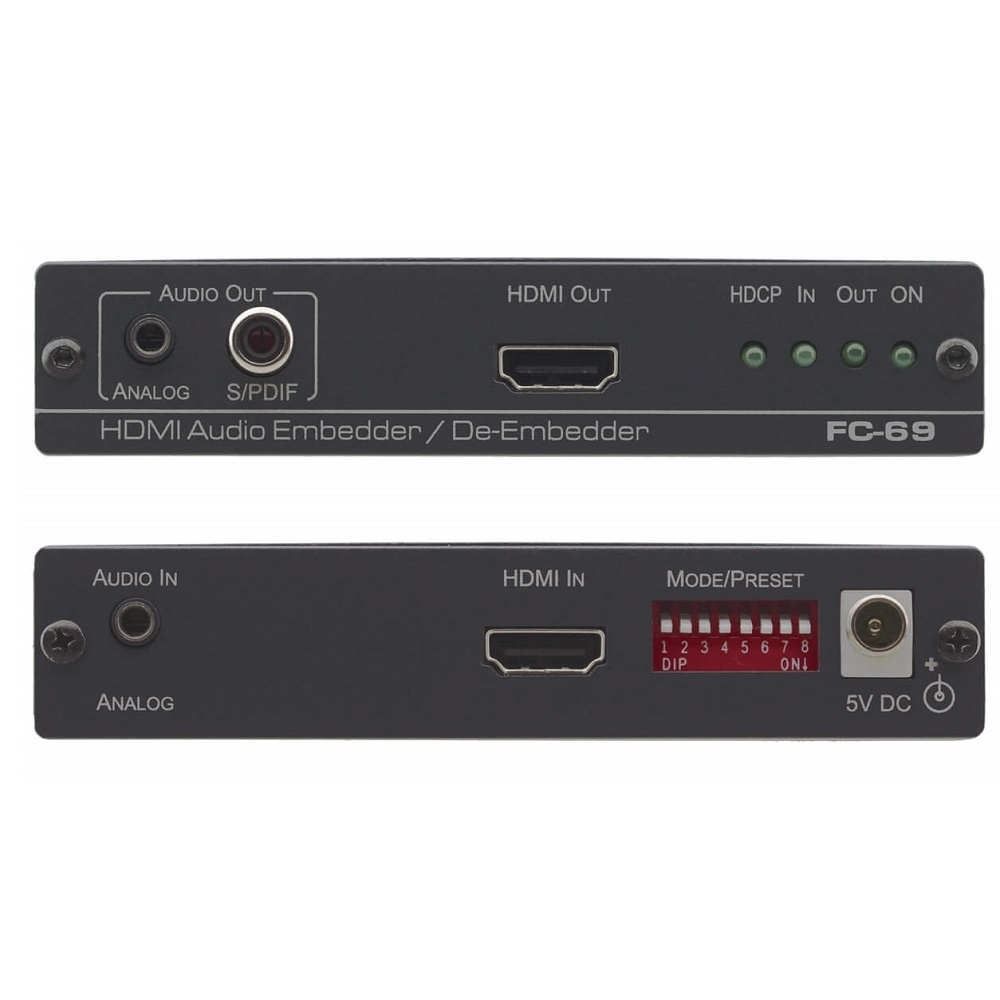

Bộ chuyển đổi HDMI 4K FC-69
Mô tả ngắn
Max Data Rate — 8.91Gbps (2.97Gbps per data channel)
4K@60Hz (4:2:0) UHD, 4Kx2K support
Kramer Equalization & re–Klocking™ Technology
Hotline: 0918 642 886
FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
- - Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
- - Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
- - HDTV Compatible.
- - HDCP Compliant.
- - HDMI Support — ARC, 7.1 PCM, deep color.
- - Audio Embedding — Even without an HDMI source.
- - Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
- - Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- - Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
- - Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
INPUT
-
1 HDMI on an HDMI connector, 1 analog stereo audio on a 3.5mm mini jack
OUTPUTS
-
1 HDMI on an HDMI connector, 1 S/PDIF digital audio on an RCA connector, 1 analog stereo audio on a 3.5 mm mini jack
MAX DATA RATE
-
8.91Gbps (2.97Gbps per graphic channel), 1080p @60Hz, 36–bit Deep Color, supports 4K@60 UHD (4:2:0), 4Kx2K
AUDIO THD+N
-
–75dB
COMPLIANCE WITH HDMI STANDARD
-
Supports HDMI, HDCP
CONTROLS
-
8–way DIP–switch
INDICATOR LEDS
-
ON, IN, OUT, HDCP
POWER SOURCE
-
5V DC, 500mA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
COOLING
-
Convection
ENCLOSURE TYPE
-
Aluminum
RACK MOUNT
-
With optional adapter
