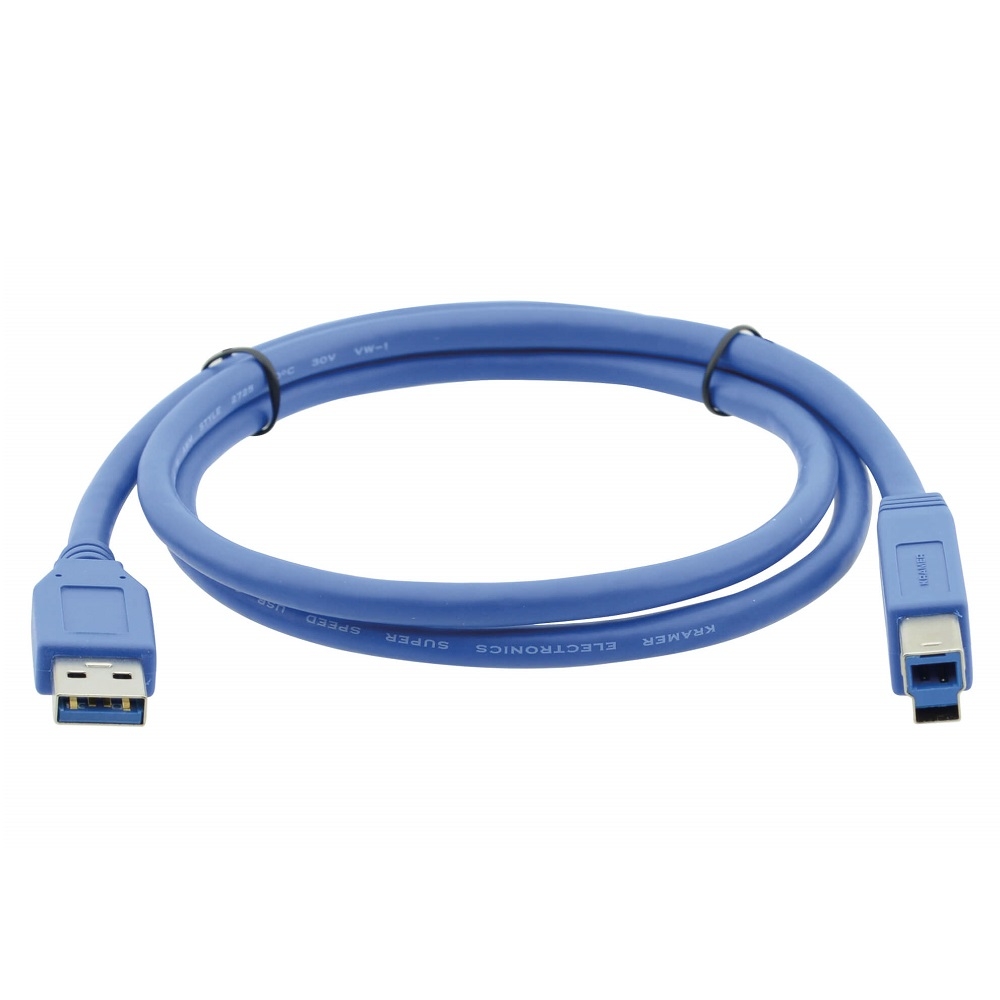

Kramer's C−USB3/AB is a SuperSpeed USB 3.0 Type−A male to Type−B male cable used to connect computers and peripherals, such as printers, scanners, cameras, keyboards, mice and other digital devices for superior signal transfer of up to 4.8Gbps.
USB 3.0 A Male to B Male.
Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0.
Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
Molded Strain Relief.
Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0.
RoHS Compliant.
Varied Selection of Lengths — Available in versions of 3 to 6ft (0.9 to 1.8m).
MODEL |
DESCRIPTION |
LENGTH |
C–USB3/AB–3 |
USB 3.0 A (M) to B (M) Cable |
3' 0.90(M) |
C–USB3/AB–6 |
USB 3.0 A (M) to B (M) Cable |
6' 1.80(M) |
OVERALL
TYPE: USB 3.0 SuperSpeed
MAX. DATA RATE: 4.8 Gbps
PHYSICAL
CONNECTOR A: USB 3.0 type–A male
CONNECTOR B: USB 3.0 type–B male
CONNECTOR PLATING: Nickel
CONDUCTORS: 28/24AWG
CABLE SHIELD TYPE: Aluminum–Mylar Foil with Braid
OVERALL SHEATH DIAMETER: 5.5mm
OUTER SHEATH COLOR: Blue
C-U32/FF USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Cable
Length — 3–6ft (0.9–1.8m)
K–Lock Connectors
CLS-AOCU32/FF USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Active AOC Cable
Length — 15–35ft (4.6–10.7m)
K–Lock Connectors
CA-USB31/CC USB 3.1 Active Extender Cable
Enables USB cable up to 4.7m (15ft)
No external power needed
Plug and play
Available lengths — 3m & 4.7m (10' to 15')
CA-USB31/CAE USB 3.1 Active Extender Cable
Enables USB cable up to 4.7m (15ft)
No external power needed
Plug and play
Available lengths — 3m & 4.7m (10ft to 15ft)
