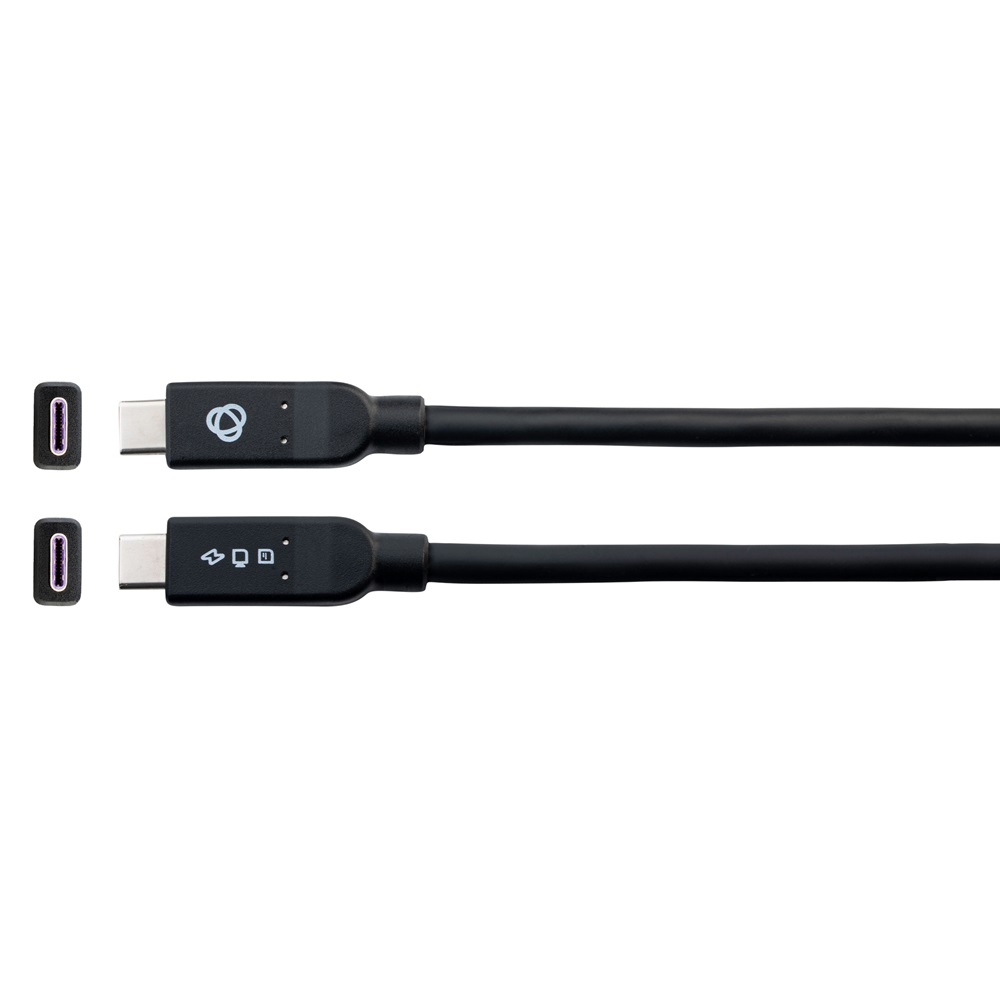

Dây cáp USB3.2 GEN–2 Full Featured USB C-U32/MFF
Mô tả ngắn
C-U32/MFF USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Cable
Length — 6–15ft (1.8–4.6m)
Flexible
K–Lock Connectors
Hotline: 0918 642 886
C-U32/MFF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ cable offering a whole new level of reliable connectivity thanks to Kramer's unique cable construction providing flexibility and our popular K−lock. Transfer Video 4K@60 4:4:4, data at incredible speeds (10G), high−rate charging (100W), − all with just one Passive cable.
C-U32/MFF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.
- Quality Construction — Micro coax wires, triple shielding that helps prevent electromagnetic interference and ensures reliable data communication.
- Reversible USB Type–C Connector with integrated locking mechanism.
- Video 4K@60 4:4:4 (DP Alt mode)
- Transfer Rates — Up to 10Gbps, USB 3.2 Gen 2.
- 100W power (5A, 20V).
- PC, Mac & Mobile Compatible.
- Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
- USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0.
- Logo on mold as orientation mark
- RoHS REACH Compliant.
OVERALL
-
Type: USB 3.2 GEN–2
-
Video: 4K@60 4:4:4 (DP Alt Mode)
-
USB 3.2 Gen 2: 10Gbps
-
USB 2.0: 480Mbps
-
ETH Support: 10/100/1000 Mbps
PHYSICAL
-
Connector A: USB Type–C Male Nickel plated K–Lock connector with gold pins
-
Connector A Length x Width x Height: 23x12x8mm
-
Connector B: USB Type–C Male Nickel plated K–Lock connector with gold pins
-
Connector B Length x Width x Height: 23x12x8mm
JACKET
-
Material: PVC
-
Color: Black
-
Diameter: 5.7 ±0.2mm
-
Bending Radius: 34.2
ELECTRICAL
-
Temperature Rating: 80°C
-
Voltage Rating: 30V
STANDARDS COMPLIANCE
-
Safety: CE
-
Flammability Rating: VW–1
